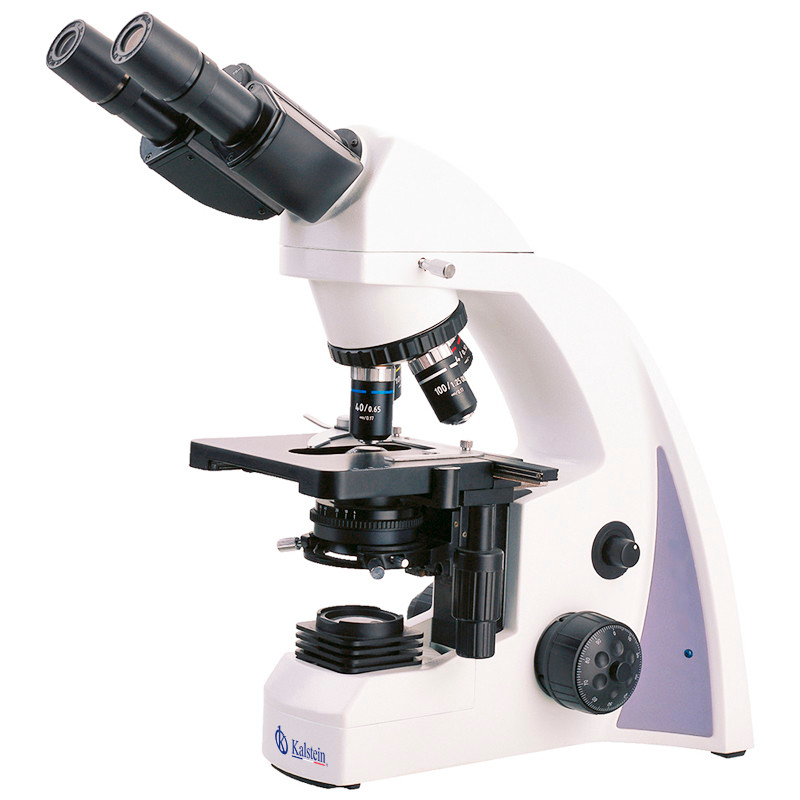

Laboratory Microscope YR0237

ManufacturerKalstein

Description

The Laboratory Microscope YR0237 is a state-of-the-art instrument designed for various laboratory applications, providing clear and precise imaging. Featuring a Seidentopf Binocular Head with a 30° inclination and an interpupillary distance range of 52-75mm, it ensures comfort during extended viewing sessions. The Infinity Semi-Plan Achromatic Objectives (4x, 10x, 40x, 100x) deliver superior optical performance, rendering sharp and crisp images essential for professional observation. This microscope’s ergonomic design includes a double layer mechanical stage, S-LED adjustable illumination, and a convenient coaxial focus system to enhance user experience and ensure precise results.

Market Price

In terms of pricing, laboratory microscopes of this caliber generally fall within the range of $500 to $800 USD. This range reflects the quality and versatility, similar to what the YR0237 delivers. For a more tailored quotation based on your specific needs, you can easily obtain an automatic quote via the Kalstein Plus system.

Frequently Asked Questions

What is the main use of the YR0237? The YR0237 is primarily used in biological and medical laboratories for detailed sample observation and analysis.

Does the microscope come with a warranty? Yes, it typically includes a warranty period which covers manufacturing defects.

Can additional objectives be added? Yes, optional accessories such as Infinity Plan Achromatic Objectives are available for enhanced capabilities.

Advantages and Disadvantages

The YR0237 offers several advantages, including high-quality imaging, ergonomic design, and easy adjustment features for both novice and experienced users. However, its complexity may require a bit of a learning curve for complete beginners.

Product Usage in the Field

In practical scenarios, the Laboratory Microscope YR0237 is invaluable for tasks such as pathogen identification and cellular studies, offering precise focusing mechanisms to accommodate varied biological samples. Its robust build and reliable components make it suitable for both educational purposes and advanced research projects.

Recommendations

To maintain optimal performance, it is recommended to regularly clean the lenses with appropriate cleaning agents and handle the microscope with care, especially when switching objectives or adjusting the stage. Engaging the proper lighting settings based on sample type further enhances imaging results.

Features

  • Binocular and Trinocular head options for flexibility
  • Wide Field Eyepiece WF10x/18mm for broader vision
  • Infinity Semi-Plan Achromatic Objectives for sharp imaging
  • Adjustable Center Condenser and Brightness Control
  • Double Layer Mechanical Stage for stable sample positioning
  • Coaxial Coarse & Fine Focusing Mechanism

Technical Specifications

Model YR0237 YR0237-1
Head Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down o
Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down o
Eyepiece Wide Field Eyepiece WF10x/18mm
Objective Infinite Semi-Plan Achromatic Objective 4x,10x,40x,100x
Nosepiece Backward Quadruple Nosepiece
Stage Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm
Condenser Sliding-in Center Adjustable Condenser N.A.1.25
Focusing Coaxial Coarse & Fine Adjustment, Moving Range 20mm
Illumination S-LED Illumination, Adjustable Brightness
Laboratory Biological Microscope Optional Accessories
Eyepiece WF10x/20mm, Diopter Adjustable YR0237-1-op1
Objective Infinity Plan Achromatic Objective 4x YR0237-1-op2
Infinity Plan Achromatic Objective 10x YR0237-1-op3
Infinity Plan Achromatic Objective 40x YR0237-1-op4
Infinity Plan Achromatic Objective 100x YR0237-1-op5
Illumination 6V20W Halogen Lamp, Brightness Adjustable YR0237-1-op6
Dark Field Dark Field Condenser, Dry, N.A.0.7~0.9 YR0237-1-op7
Dark Field Condenser,Immersion, N.A.1.25~1.36 YR0237-1-op8
Dark Field Objective, Infinity Plan 100X, YR0237-1-op9
ForImmersion Dark Field Observation
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm YR0237-1-op10
ForImmersion Dark Field Observation
Phase Contrast Infinity Plan Turret Phase Contrast Set YR0237-1-op11
–Infinity Plan Turret Phase Contrast Condenser
–Ininity Plan Phase Contrast Objective 4x,10x,40x,100x
–Centering Telescope 10x
Infinity Achromatic Turret Phase Contrast Set YR0237-1-op12
–Infinity Achromatic Turret Phase Contrast Condenser
–IninityAchromatic Phase Contrast Objective 4x,10x,40x,100x
–Centering Telescope 10x
LED EPI-Fluorescent Kit EPI Light 3W LED 465~475nm, B Excite Filter BP460~490 YR0237-1-op13
EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 YR0237-1-op14

Additional information

Weight N/A
Dimensions N/A
Model

YR0237, YR0237-0-1 Infinity Plan, YR0237-1, YR0237-1-1 Infinity Plan
