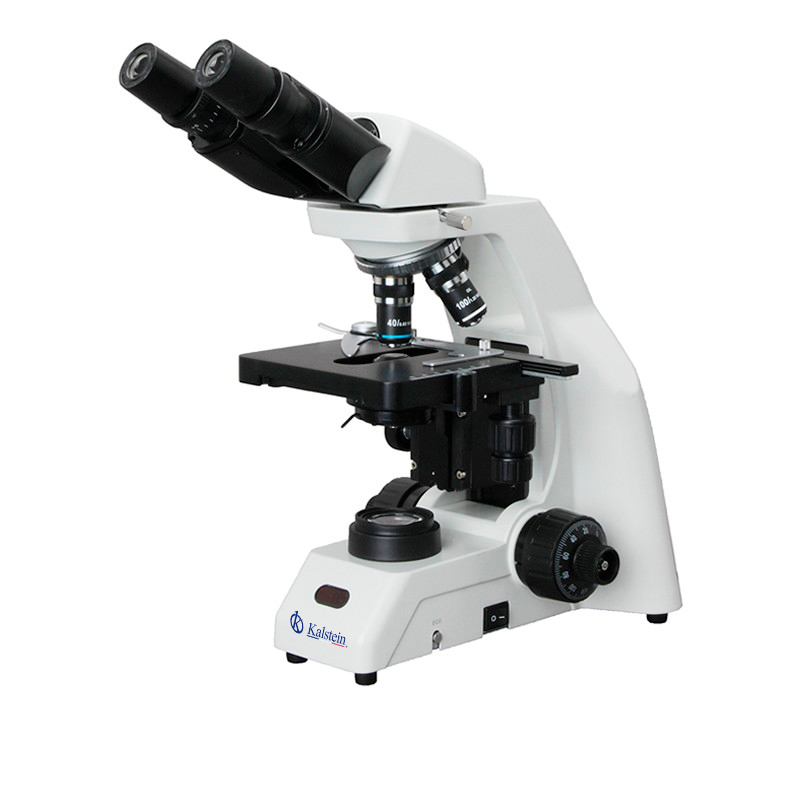

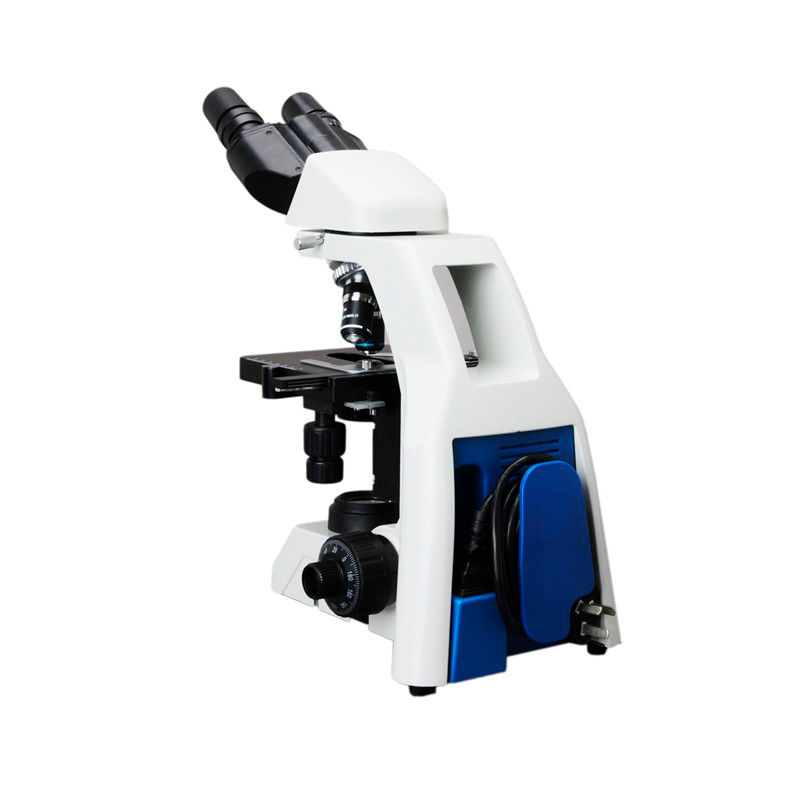

Laboratory Microscope YR0239 – YR0240

ManufacturerKalstein

Description

The Laboratory Microscope YR0239 – YR0240 is an advanced piece of equipment designed to meet the needs of professional laboratories and educational institutions. This sophisticated microscope features a Seidentopf binocular viewing head that is inclined at 30° for comfortable use, with an interpupillary distance adjustable between 47-78 mm to accommodate various users. It comes equipped with a versatile darkfield condenser for both dry and oil applications, and its precise coaxial fine and coarse adjustment mechanism ensures detailed observations with a fine division of 0.002 mm and a moving range of 25 mm. This model utilizes a finite optical system for clear and sharp imaging, integrated with a WF10X/18 eyepiece to enhance viewing experiences.

Market Price

In the market for high-quality laboratory microscopes, prices can vary significantly based on features and specifications. The Laboratory Microscope YR0239 – YR0240 is competitively positioned within an estimated price range of $400 to $1200, offering exceptional value for its state-of-the-art optical capabilities and robust construction. For an exact quote based on current promotions or bulk purchases, consider reaching out to suppliers directly or use platforms like Kalstein Plus for a tailored quotation.

Frequently Asked Questions

What type of illumination does the microscope use? The microscope employs an S-LED illumination system, known for energy efficiency and a prolonged life span.

Is there a digital viewing option available? Yes, the model supports a digital viewing head, providing 5M pixels resolution with Wi-Fi support for sharing observations.

Can this microscope be used for teaching purposes? Absolutely, its design and functionality make it ideal for educational settings, aiding in clear demonstration and student interaction.

Advantages and Disadvantages

One of the main advantages of the Laboratory Microscope YR0239 – YR0240 is its adaptability, offering both binocular and trinocular options, which is ideal for diverse laboratory applications. The robust design and high-quality optical system ensure reliable performance. However, users should note that it might not be suitable for fieldwork due to its weight and structure, making it more appropriate for stationary lab setups.

Use in the Field

This microscope is extensively used in medical and research laboratories for microbiology applications, histopathology, and cytology, thanks to its precise imaging and ergonomic design. It is particularly valued in clinical settings for examining cellular structures and tissue samples.

Recommendations

To maintain the optimal performance of the microscope, ensure regular cleaning of the lenses and internal components using appropriate solvents and materials. It’s also recommended to calibrate the microscope periodically and protect it from dust and environmental changes to extend its service life.

Features

  • Darkfield condenser (dry, oil) for versatile applications.
  • Seidentopf binocular viewing head, 30° inclined, adjustable interpupillary 47-78 mm.
  • Coaxial fine and coarse adjustment, 0.002 mm fine division, 25 mm moving range.
  • S-LED illumination system for efficient and bright lighting conditions.
  • Finite optical system with high-caliber WF10X/18 eyepiece.

Technical Specifications

Model YR0239 YR0239-1 YR0240 YR0240-1
Optical System Finite Optical System
Eyepiece WF10X/18
Viewing Head Monocular Head Inclined at 30°
Seidentopf Binocular Viewing Head
Inclined at 30°, Interpupillary 47-78mm
Seidentopf Trinocular Viewing Head
Inclined at 30°, Interpupillary 47-78mm
Digital Viewing Head Inclined at 30°,
Interpupillary 47-78mm, 5M pixels, Support Wifi
Digital Viewing Head Inclined at 30°,
Interpupillary 47-78mm, 5M pixels, 8″LCD. Android OS
Achromatic Objective 4X N.A=0.1 WD=37.5
10X N.A=0.25 WD=7.316
20X N.A=0.4 WD=13
40X N.A=0.65 WD=0.632
100X N.A=1.25 WD=0.198
Nosepiece Backward Quadruple Nosepiece
Stage Double Layers Mechanical Stage 140X140mm,
Moving Range 75X50mm
Condenser NA1.25 Abbe Condenser
Dark Field Condenser (Dry, Oil)
Focusing System Coaxial Coarse and Fine Adjustment, Fine Division
0.002mm, Moving Range 25mm
Illumination Halogen Lamp 6V/20W
S-LED Illumination
S-LED Illumination with Recharger
Kohler Illumination

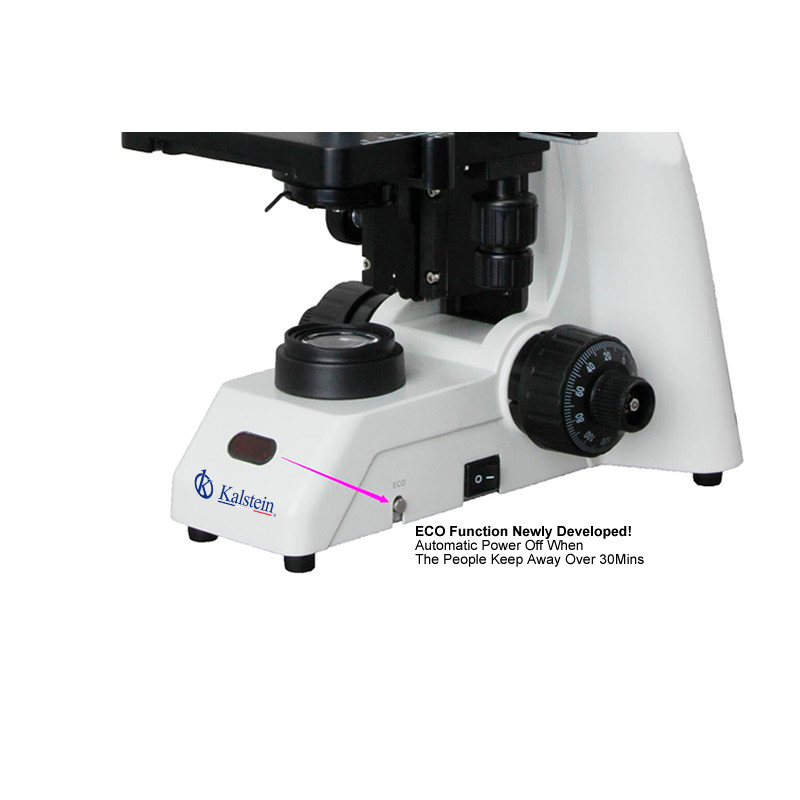

ECO Function (Auto Power Off After 30 Mins No Operation)
Plane-concave Mirror
Fluorescent
Attachment
Fluorescent Illumination, LED Lamp
Fluorescent Illumination, 100W HBOLamp
Polarzation Set
Phase Contrast Kit

Additional information

Weight N/A
Dimensions N/A
Model

YR0239, YR0239-1, YR0240, YR0240-1
