Description

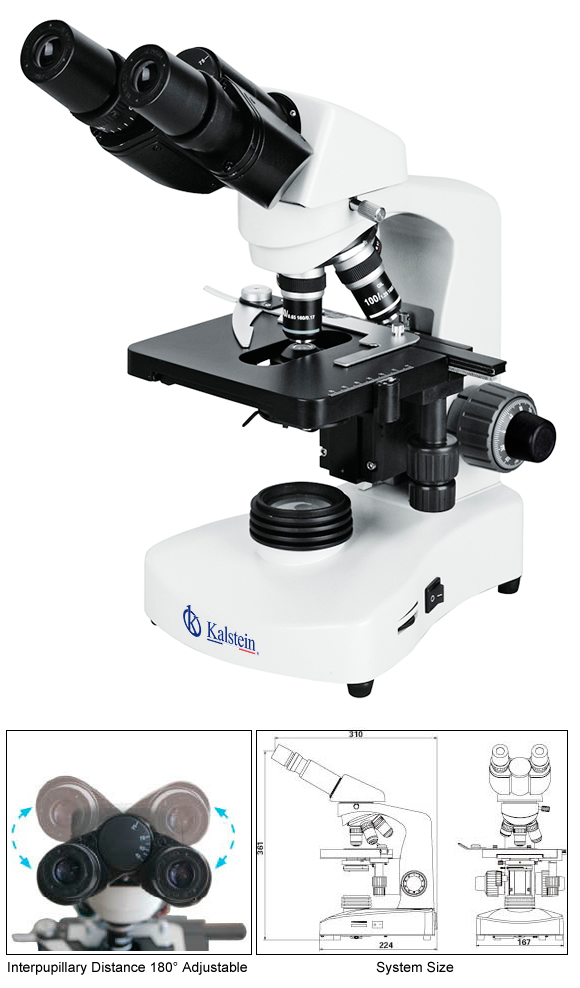

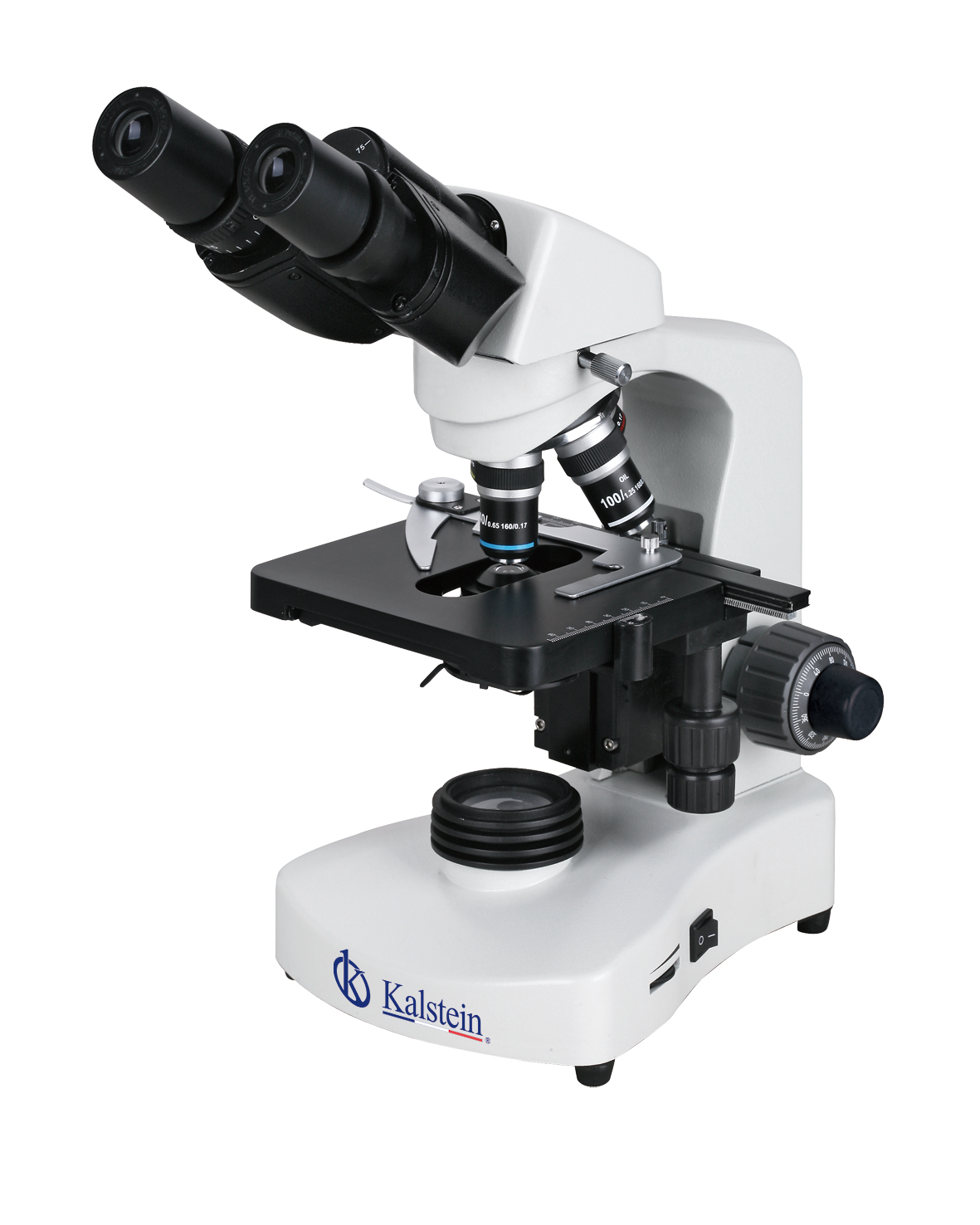

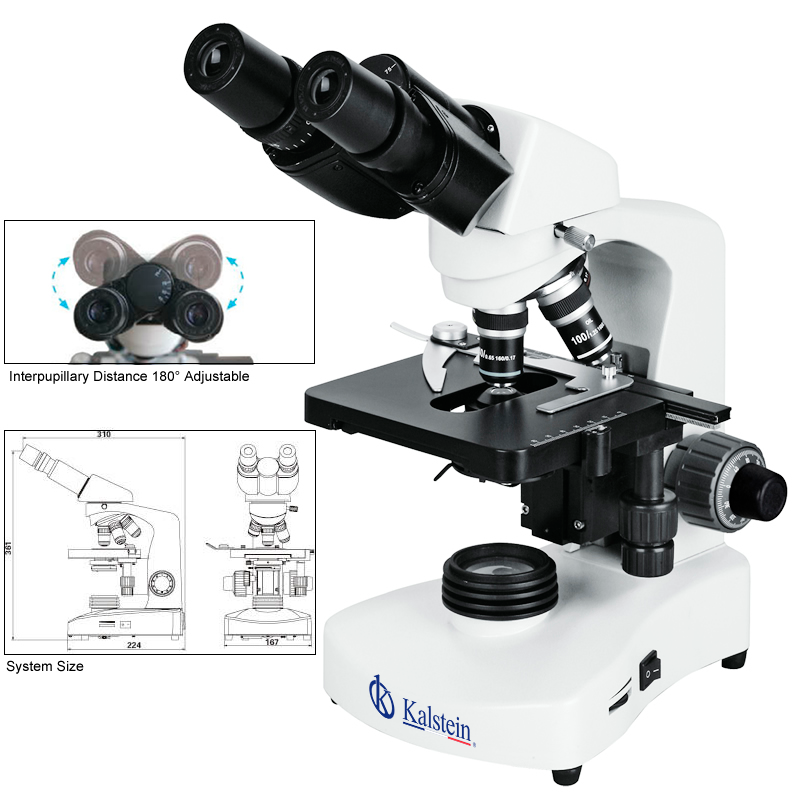

The Laboratory Microscope YR0241 is an exceptional optical instrument designed for precision and accuracy. It features a Siedentopf trinocular head inclined at 30°, allowing for comfortable and extended viewing. The interpupillary distance ranges from 55 to 75 mm, suitable for different users. The microscope is equipped with a wide field eyepiece WF10x/18 and a quadruple revolving objective-carrier revolver, housing achromatic objectives of 4x, 10x, 40x, and 100x, ensuring detailed magnification and clarity. The coaxial coarse and fine knob offers a 24 mm range of motion with a 0.004 mm fine division for precise focusing. Additionally, the Abbe condenser with N.A. 1.25 and LED illumination with adjustable brightness enhance image quality under various lighting conditions.
Market Price
The Laboratory Microscope YR0241 is a high-quality instrument with a market price range typically between 300 to 900 USD, providing excellent value for its advanced features and capabilities.
Frequently Asked Questions
How can I request a quotation for the Laboratory Microscope YR0241? You can easily request a quotation through the Kalstein Plus platform for an instant estimate of this product.
Does the microscope come with any optional accessories? Yes, you can choose from various optional accessories, including a P16x/11 eyepiece, a phase contrast kit, a polarization attachment, a halogen lamp, and a dark field condenser.
Advantages and Disadvantages
Advantages: The YR0241 offers unparalleled optical clarity and precision with interchangeable objectives, making it ideal for diverse research applications. The LED illumination is adjustable, providing energy efficiency and long-lasting light.
Disadvantages: While the microscope is robust, users with specific needs such as fluorescence microscopy might require additional configurations or attachments.
Usage in the Field
This microscope is extensively used in educational institutions, medical laboratories, and research facilities, enabling users to conduct detailed biological and material studies. Its precise focusing and clear magnification make it ideal for observing fine details of specimens.
Recommendations
Ensure regular cleaning and maintenance of the lenses and mechanical parts to keep the YR0241 performing optimally. Store the microscope in a dust-free environment and handle with care to extend its lifespan.
Features
- Coaxial coarse and fine focusing with a 24 mm range and 0.004 mm fine division.
- Siedentopf trinocular head with 30° inclination and interpupillary distance of 55-75 mm.
- Revolving quadruple objective-carrier revolver.
- LED illumination with adjustable brightness.
- Various optional accessories for enhanced functionality.
Technical Specifications
Model | YR0241 | |
Head | Siedentopf binocular head, inclined at 30°, interpupilary distance 48-75mm | ● |
Siedentopf trinocular head, inclined at 30°, interpupilary Distance 55-75mm |
||
Eyepiece | Wide field eyepiece WF10x/ 18 | ● |
Objective | Achromatic objective 4x | ● |
Achromatic objective 10x | ● | |
Achromatic objective 40x | ● | |
Achromatic objective 100x | ● | |
Nosepiece | Backward quadruple nosepiece | ● |
Stage | Double layers mechanical stage132x142mm/ 75x40mm | ● |
Focusing | Coaxial coarse & fine knob, moving range 24mm, fine division 0.004mm | ● |
Condenser | Abbe condenser N.A.1.25 with Iris diaphram & filter | ● |
Illumination | LED 3W, brightness adjustable | ● |
Optional Accessories | Item No. | |
Eyepiece | P16x/11 | YR0241-op1 |
Phase Contrast Kit | YR0241-op2 | |
Polarization Attachment | YR0241-op3 | |
Illumination | Halogen lamp 6V/ 20W, brightness adjustable | YR0241-op4 |
Dark Field Condensor | YR0241-op5 |
