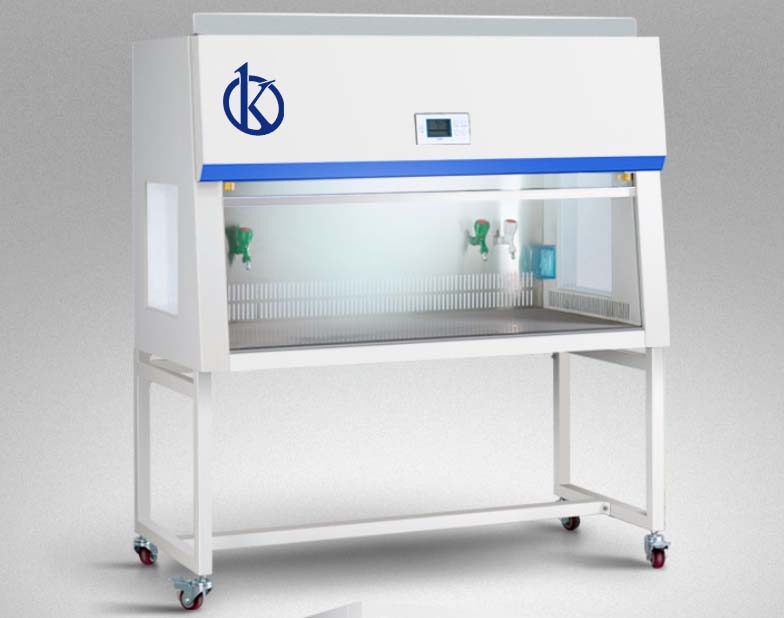

Laminar Flow Cabinet (Double person) YR05267-1

Manufacturer: Kalstein

Manufacturer: Kalstein

Product Description

YR series (double people) laminar flow cabinet combined with perfect airflow mechanical design for the operator to create a partial purification work environment so that experiments can be carried out smoothly.
Applicable in the field of protection of biotechnology, pharmaceutical, life sciences and precision electronic products.

Product Introduction
  • Integrated LCD dot matrix LCD display, real-time display the status of lighting, sterile, air flow and other parameters.
  • User-friendly design, with sterilization, lighting, interlock functions to protect the operator from UV light burns and ensure safe operation.
  • Wind speed multi-level adjustable, the air volume can be adjusted according to the user.
CLEANFLOW™ clean air technology
  • Centrifugal wind wheel low-power motor, based on airflow mechanics principle, arc-shaped large-diameter inlet design to reduce turbulence generated to ensure low noise operation of the system.
  • Reasonable duct design, optimized net press box, with micro-mesh design layer outflow wind deflector, convex, no dead ends, to ensure the uniformity and stability of the airflow.
  • Standard early-efficient and efficient double-filter, primary filter to avoid airflow dust particles to enter and extend the life of high efficiency filter. High efficiency filter without clapboard HEPA, retention efficiency of 99.99%.
  • According to the customer’s requirements, CLEANFLOWseries with the vertical flow and horizontal airflow
Technical Parameters
Model YR05267-1
Cleanliness Rating The international ISO 14644.1 standard, CLASS 5 (U.S. Federal 209E, 100 level)
Wind Speed 0.3~0.6m/s(Adjustable)
Noise (dB) ≤62
Vibration half peak ≤3μm(X、Y、Z direction)
High efficiency filter Efficiency 99.99%
Illumination(LX) ≥300
Work nvironment Ambient temperature 10~30℃, Relative humidity
below 70%, No obvious vibration and dust around
Overall size (mm)(H×W×D) 1585×1460×735
Inner size (mm)(H×W×D) 500×1300×550
Voltage(V) AC220V/50Hz
Power(W) 400
Net weight (KG) 210
Shipping weight(KG) 235
Packing size(mm) (H×W×D) 1030×1650×855
