Description

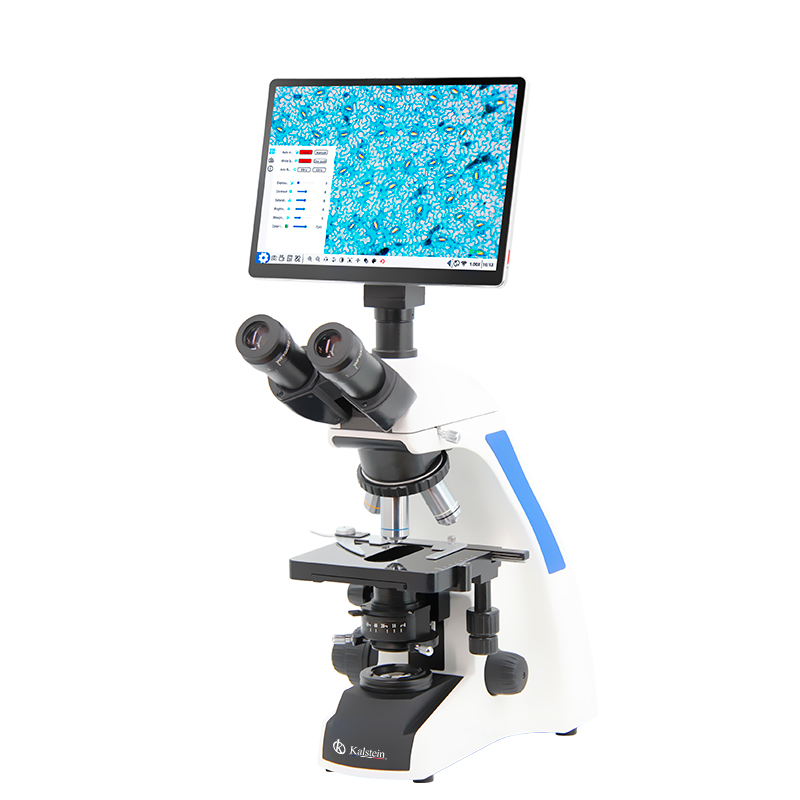

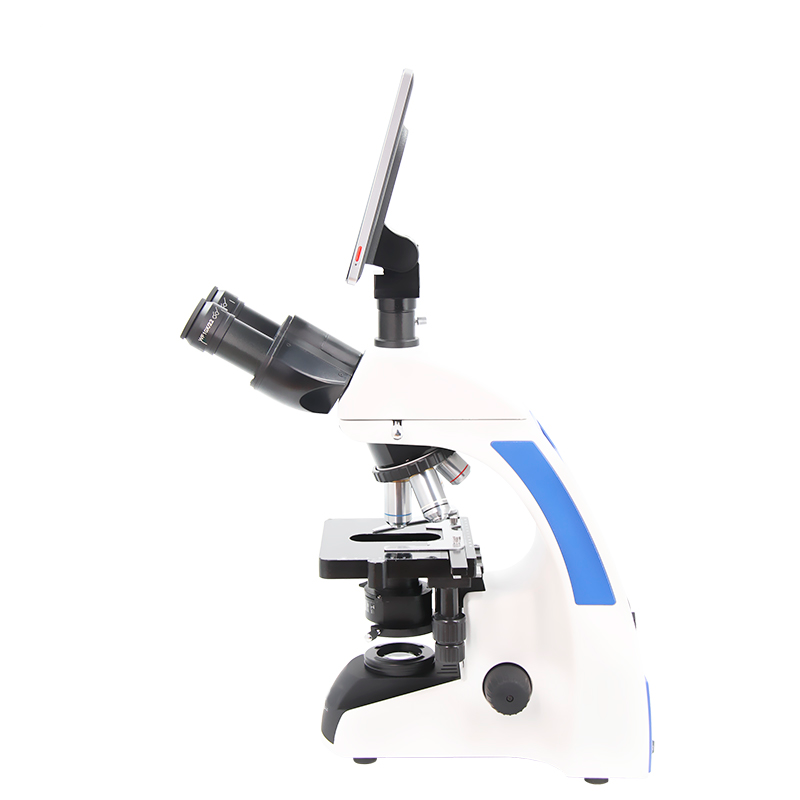

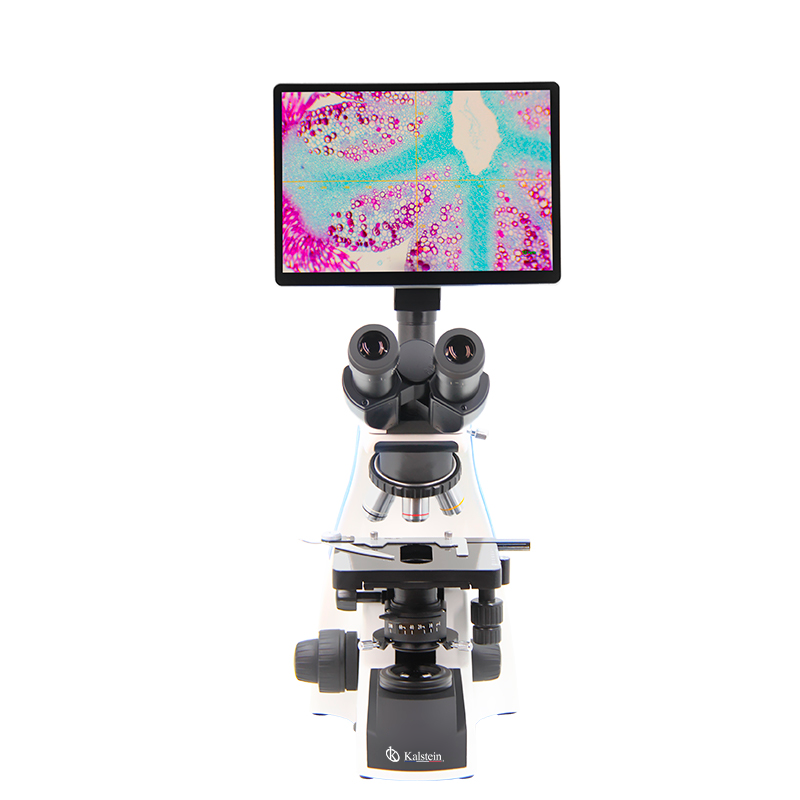

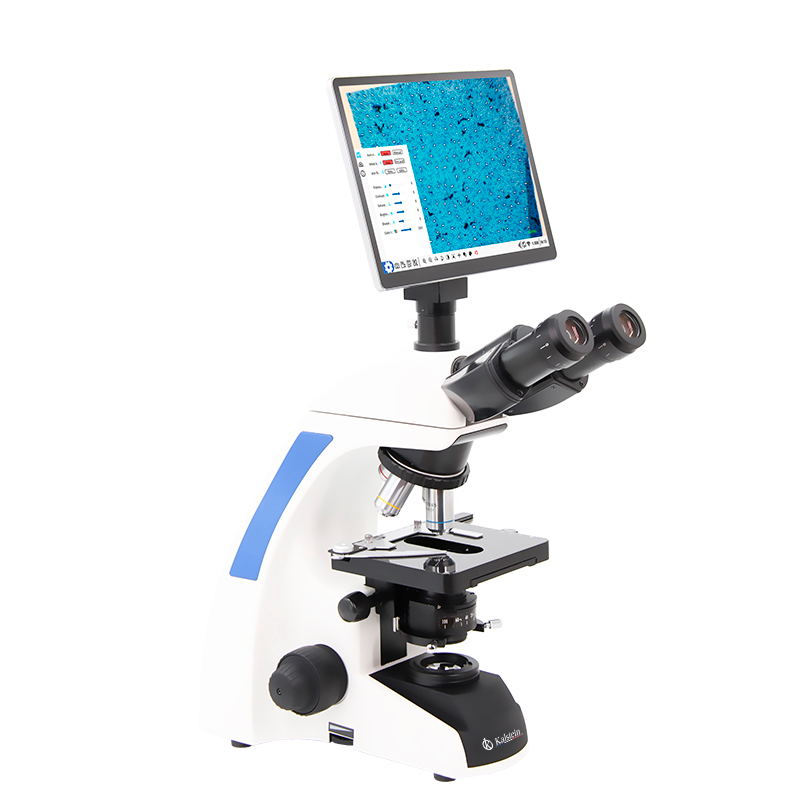

The LCD Touch Screen Digital Microscope YR05782 is a state-of-the-art instrument designed for professionals and hobbyists seeking precision in microscopic analysis. Featuring a large 10.5″ LCD touch screen with an integrated Android system and measuring software, it allows for seamless interactions and detailed image assessments. Its high eyepoint wide field eyepiece and achromatic objectives offer exceptional clarity and contrast, making it ideal for laboratory environments. The device also includes a double-layer mechanical stage with upgradable options and a 3W LED Kohler illumination system, ensuring easy maintenance and unmatched brightness control.
Market Price
The average price for digital microscopes with similar features ranges from $1100 to $1800 USD in the market. This range takes into account the advanced technology and functionalities provided by such devices, including high-definition display, robust measurement capabilities, and connectivity options that support modern laboratories’ demands.
Frequently Asked Questions
What is the primary use of this microscope? The YR05782 is designed for both educational and professional laboratory settings, offering detailed imaging and measurement capabilities.
Can the device be connected to other screens or devices? Yes, it has multiple output options, including USB3.0, USB2.0, HDMI, and a Gigabit LAN port for various connectivity needs.
Is the lighting adjustable? Yes, the 3W LED light source is brightness adjustable for optimal viewing conditions.
Advantages and Disadvantages
Advantages: The YR05782 offers a unique combination of a touch screen with Android functionality, advanced measurement software, multiple connectivity options, and high-quality optical components that deliver excellent precision and ease of use.
Disadvantages: Users unfamiliar with digital interfaces may experience a learning curve when utilizing the touch screen and associated software.
Product Use in the Field

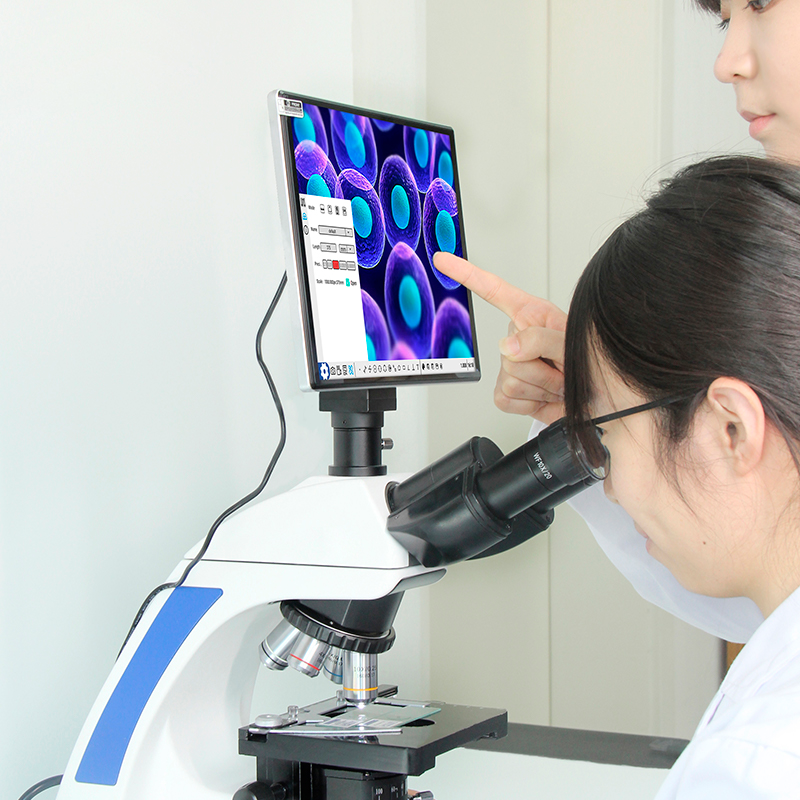

This microscope is widely used in biological research, industrial inspections, and educational settings. In the lab, it facilitates a variety of tasks, including tissue analysis, cellular examination, and materials inspection, thanks to its versatile objectives and built-in measurement tools.
Recommendations
To maintain the YR05782’s performance, regularly calibrate the optical components and clean the touch screen. It’s recommended to familiarize yourself with the S-Eye software to fully harness its measurement capabilities. For detailed pricing information or to schedule a demonstration, use the Kalstein Plus platform to generate a quote swiftly.
Features
- 10.5″ LCD Touch Screen Pad, Android System
- High Eyepoint Wide Field Eyepiece WF10x/20mm
- Achromatic HC 4x,10x,40x100x Objective
- Double Layer Mechanical Stage 143*132mm
- 3W LED Kohler Illumination
Technical Specifications
Model | YR05782 | |
Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |

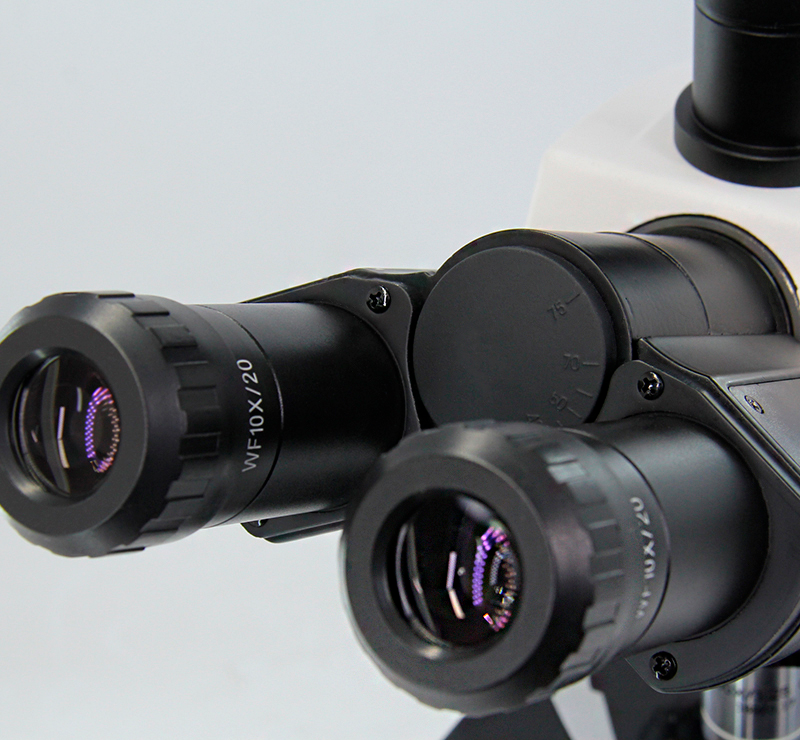

Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm | |
Objective | High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S) | |
Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |
Nosepiece | Quadruple, Backward With Click Stops | |

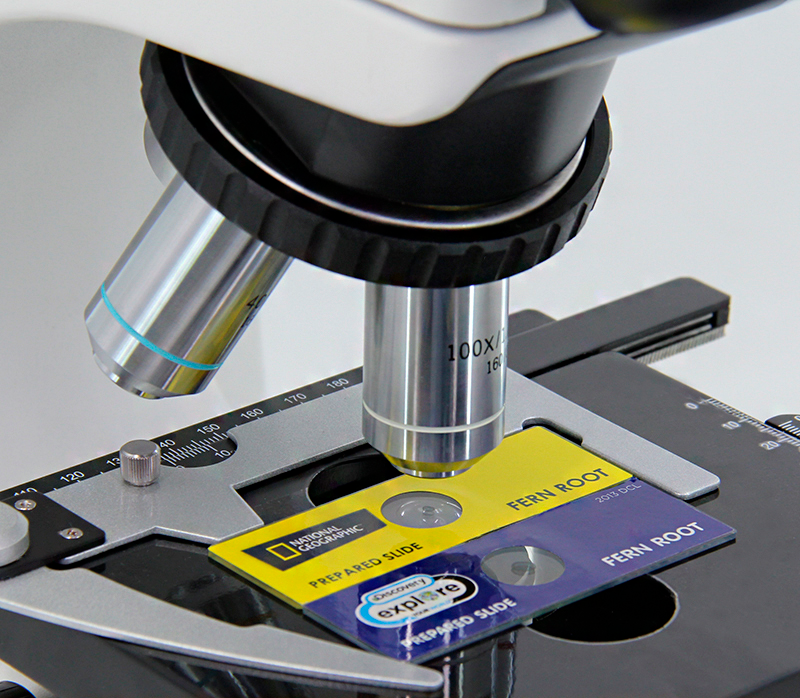

Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |

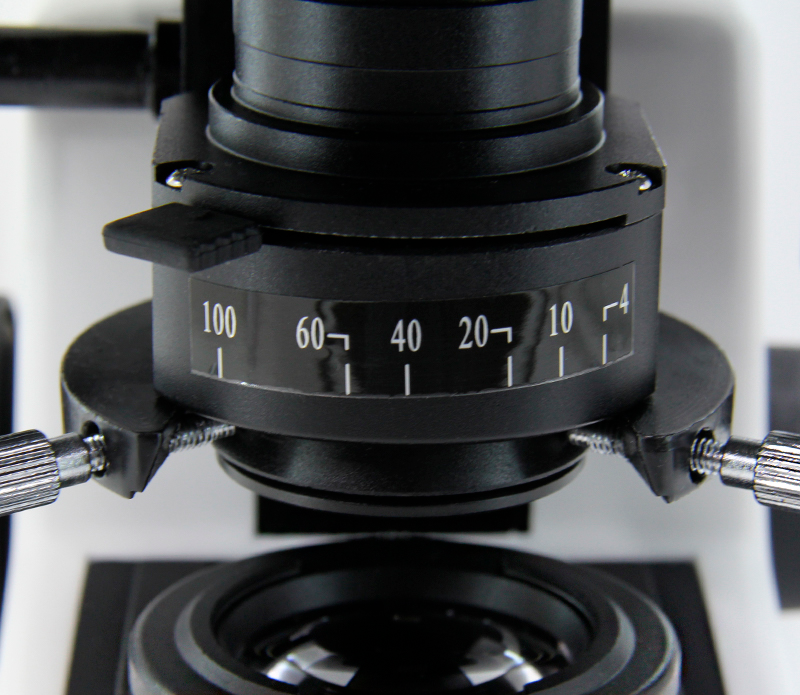

Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |
Light Source | 3W LED Brightness Adjustable | |
Adapter | C-Mount 0.5x | |
Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton | |
10.5“ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022! | ||
Spec. | Model | YR05782-op0 |
Category | HD All-in-One Android 11 System Tablet Digital Camera | |
Sensor | 1/1.8” CMOS Sensor | |
Effective Pixel | 8M, 4K | |
Screen | 10.5” High-Definition Touch Screen | |
Operation System | Android 11 | |
WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | |
Bluetooth | Bluetooth 5.0 | |
Output | USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port | |
Pixel size | 2.0um*2.0um | |
Power | DC-12V/2A | |
Function | Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | |
Camera Function | Mirror, Flip, Freeze, Black and White | |
UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation | |
Photo | 8.0M Image Capture | |
Video | 1080P Video | |
Storage | Still Photo And Video Recording, Picture Preview | |
Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | |
Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | |
Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | |
Geometric Area Measurement | Polygon, Rectangle | |
Measurement System | Built-in S-Eye Software | |
Package | Box Size | 237*169*10.5mm |
Weight | 0.6kg | |
Accessory | DC-12V/2A Power Adapter | |
Laboratory Biological Microscope Optional Accessories | ||
Eyepiece | WF16X/F.N.15mm | YR05782-op1 |
WF20X/F.N.12mm | YR05782-op2 | |
Nosepiece | Backward Quintuple Nosepiece | YR05782-op3 |
Dark Field | Dark Field Condenser, Dry, N.A.1.25 | YR05782-op4 |
Dark Field Condenser, Immersion, N.A.1.25~1.36 | YR05782-op5 | |
Polarizing | Polarizer & Analyzer | YR05782-op6 |
Phase Contrast | Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x | YR05782-op7 |
Infinity Plan Phase Contrast Objective 10x,20x,40x,100x | ||
Centering Telescope 10x | ||
Optional For B, T Only | ||
Adapter | Eyepiece Tube Adapter | YR05782-op8 |
C-Mount 1.0x | YR05782-op9 |
