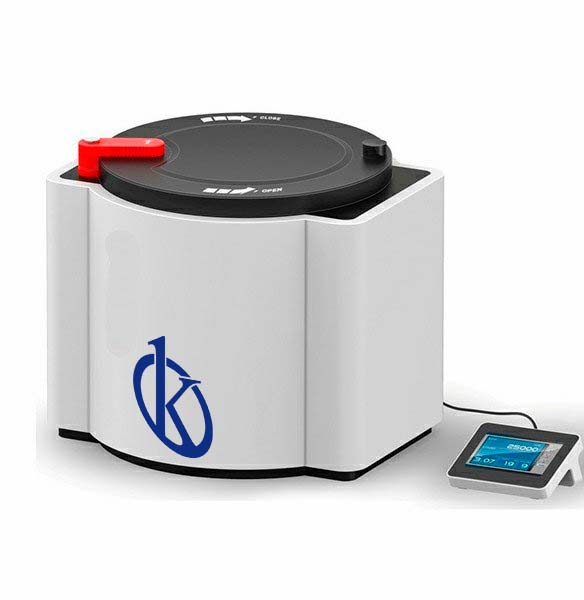

Microwave Digestion System YR04959 // YR04960

Manufacturer: Kalstein

Description

The YR04959 // YR04960 microwave digestion system is an advanced and safe solution for sample processing in laboratories that require high precision and efficiency. This system features an exclusive design of digestion vessels with automatic ventilation and a self-sealing structure, allowing for controlled pressure release in cases of overpressure, protecting both samples and users from any risks. The system includes a state-of-the-art non-contact IR sensor to monitor temperature and pressure in real-time, preventing cross-contamination and ensuring total control over each digestion process, which is viewable on its 7-inch color touchscreen LCD.

Market Price

In the market, the price of a similar microwave digestion system varies between $50795 and $60110USD, depending on technical specifications and capacity. With its ability to store up to 255 customizable programs, the YR04959 / YR04960 stands out as a durable and versatile investment for laboratories in analytical chemistry, mining, food industries, and pharmaceuticals that require consistent, high-quality analyses. Its stainless steel 316L microwave tank, combined with its 360º rotor, ensures uniform digestion and extends the system’s lifespan.

Frequently Asked Questions

  • What is the accuracy of the temperature control? The temperature accuracy is ±0.3 °C, with a range of up to 400 °C.
  • Is it safe for handling acids? Yes, the sample vessel is made of imported TFM, while the outer protection is made of PEEK and fiberglass, which prevents damage from acids and high temperatures.

Advantages and Disadvantages

  • Advantages of the system include its high customization capacity, precise monitoring, and a robust safety structure; however, a potential
  • Disadvantage is the equipment’s weight, approximately 78 kg, which may require a fixed installation in the laboratory.

Product Use in the Field

In the field, this system is used for the rapid and controlled digestion of samples, especially in scenarios where precision is needed for spectroscopic analysis of inorganic materials.

Recommendations

We recommend strictly following the safety parameters of the system, taking advantage of customizable settings to adapt it to various research needs. Additionally, maintain a regular maintenance plan to ensure optimal operation of the non-contact monitoring system and the corrosion-resistant blower.

To obtain a quote or generate an automatic quote online, please visit our Kalstein Plus platform, where you will find exclusive prices and customization options for this equipment.

Technical Specifications

Model YR04959 YR04960
Vessel Quantity 40 50
Temperature Monitoring System Contactless IR Sensor Temperature Monitoring
Each Vessel Temperature Controlled
Temperature Controlling Range: 50~400℃
Temperature Accuracy: ±0.3℃
Display Accuracy: ±0.1℃
Pressure Monitoring System Contactless Sensor Pressure monitoring
Each Vessels Pressure Controlled
Pressure Controlling Range: 0~10MPa
Pressure Accuracy: ±0.01MPa
Display Accuracy: ±0.01Mpa
Vessel Volume 50mL
Sample Vessel Material Imported TFM
Protection Vessel Material Peek+Glass Fiber
Display 7 inch Color Touch Screen
Rotation One Direction 360° continuous rotating
Microwave Tank 316L stainless steel tank with corrosion-proof coating
Microwave Power 0-3000W (Adjustable)
Microwave Leakage <5mw/cm2
Air Exhaust High power corrosion-proof air blower
Power AC 220V±10%, 10A, 50/60Hz
Dimension 640×630×590mm(L×W×H)
Weight 78KG

Additional information

Weight N/A
Dimensions N/A
Model

YR04959, YR04960
