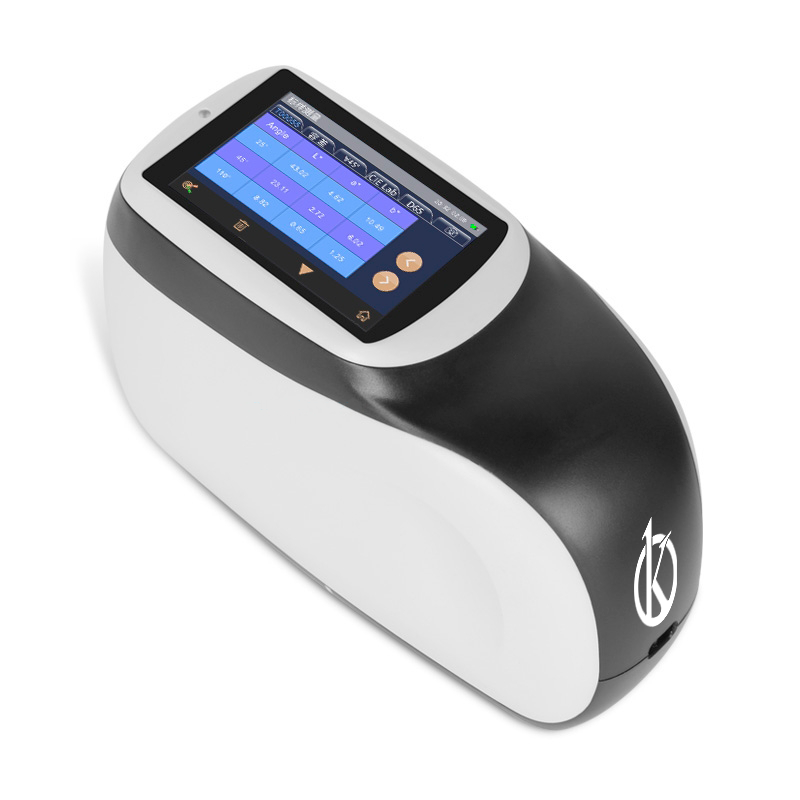

Multi-Angle Spectrophotometer with 3 Angles YR05488 // YR05489
Multi-Angle Spectrophotometer with 3 Angles YR05488 // YR05489 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Multi-Angle Spectrophotometer with 3 Angles YR05488 // YR05489 from Kalstein is a state-of-the-art tool designed to measure color differences in products with special finishes, such as metals and pearlescent effects, making it ideal for applications in cosmetics, automotive, and plastics industries. This device offers multi-angle measurement at three angles (25°, 45°, and 110°), capturing chromatic variation under different viewing conditions. Equipped with an advanced optical system, the YR05488 // YR05489 uses a dual-array 256-element CMOS sensor and a full-spectrum LED light source with blue enhancement, ensuring precision and stability, even on curved surfaces. Its intuitive touchscreen and concave grating technology optimize results display and analysis, meeting international standards such as ASTM, ISO, and DIN.
Market Price
The YR05488 // YR05489 is competitively priced, ranging between $6,000 and $9940 USD, depending on selected configurations and optional accessories. This spectrophotometer is a strategic investment for companies seeking to improve precision in color control within industrial processes. If you need a customized quote or wish to generate one quickly and automatically, you can easily do so on the Kalstein Plus platform, ensuring an agile and reliable purchasing experience.Frequently Asked Questions
- What applications is the YR05488 // YR05489 suitable for? It is perfect for products with metallic, pearlescent, and other complex special finishes, widely used in the automotive, cosmetics, and plastics industries.
- Is it PC-compatible? Yes, the spectrophotometer includes color management software for PC, enabling detailed analysis and comprehensive color data management.
- What is its storage capacity? This model can store up to 1,000 standards and 4,000 samples, making it ideal for maintaining a detailed and organized record.
Advantages and Disadvantages
The YR05488 // YR05489 stands out for its high precision, with a ΔE*ab standard deviation of 0.04, and its multi-angle measurement capability, ensuring detailed capture of chromatic variations. Additionally, its USB and Bluetooth 5.0 connectivity enables fast and secure data transfer. However, its specialization in complex finishes may be limiting if a more general color analysis is needed.Field Applications

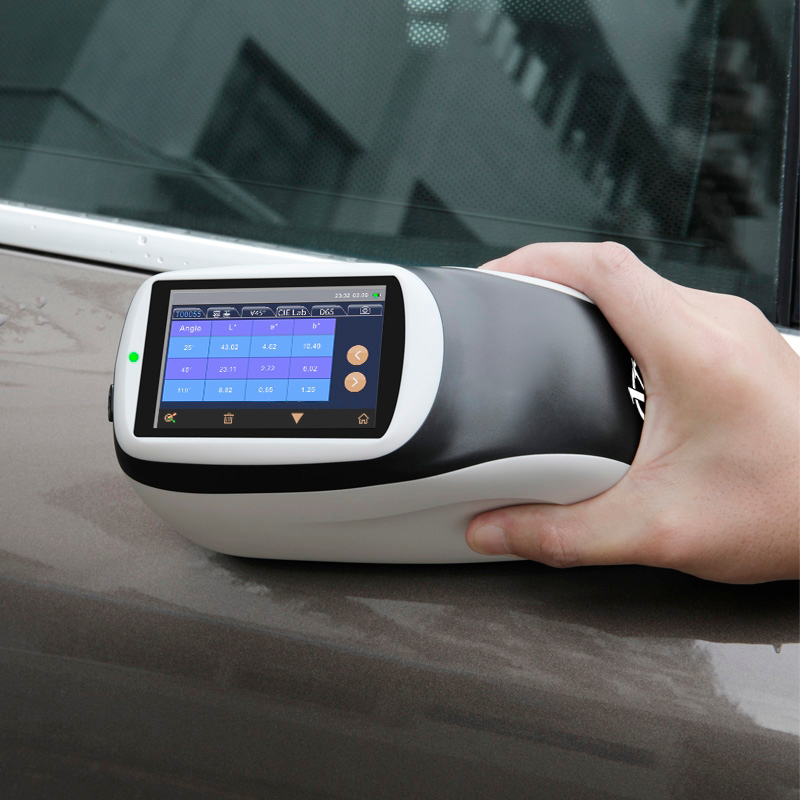

In the field, the YR05488 // YR05489 is ideal for color quality control in products within the automotive, cosmetics, and plastics industries, where high precision in visual finishes is essential. Thanks to its multi-angle functionality and camera preview, it enables precise positioning of the measured area, improving efficiency in both laboratory and production line settings. Its ergonomic design and 3.5-inch touchscreen make it easy to use in industrial environments.Recommendations
For optimal performance of this spectrophotometer, regular calibrations are recommended, and the equipment should be kept in a clean, dust-free environment. Its lithium-ion battery allows for up to 6,000 measurements in 8 hours, so regular recharging is advised. Request a customized quote or quickly generate one on Kalstein Plus and discover how the Multi-Angle Spectrophotometer YR05488 // YR05489 can optimize color control in your industry, enhancing precision and efficiency in each production process and ensuring visual consistency in your products.Technical Specifications
| Model | YR05488 |
| Measurement Geometry | 3 measurement angles (3 illumination sources, 1 receivers) |
Measure Angle | 45° Receiver： |
45as25°,45as45°,45as110° | |
Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545 | |
| Application | Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products |
| Light Source | Full spectrum LED light source with blue enhancement |
| Lamp Life | 5 years, 3 million times measurements |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400nm-700nm |
| Wavelength Interval | 10nm |
| Measurement Range | 0~600% |
| Semiband Width | 10nm |
| Measuring Aperture | Φ12mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 |
| Other Colorimetric Index | Flop Index |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF), F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30) |
| Display | Spectrogram/Values, Samples Chromaticity
Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
Measuring Time | Approx. 1 second for one angle |
Approx. 3 seconds for all angles | |
Repeatability | Spectral reflectance: Standard deviation within 0.08% |
Chromaticity value: ΔE*ab 0.04 ( When a white
calibration plate is measured 30 times at 5 second
intervals after white calibration) | |
Reproducibility | ΔE*<0.10,avg on the gray tile of BCRA tile set |
ΔE*<0.25,avg on the color BCRA tile set | |
| Inter-instrument Error | 0.2ΔE*00(avg on reference Series II BCRA tile set) |
| Effect Parameters | / |
| Effect Measurement | / |
| Effect Repeatability | / |
| Effect Reproducibility | / |
| Trigger mode | Pressure sensing trigger, button trigger, software trigger |
| Measuring Mode | Single measurement, average measurement (1-99),
continuous measurement (1-99) |
| Locating Mode | Color camera preview |
| Dimension | L*W*H=195X83X128mm |
| Weight | About 1Kg |
| Power | lithium-ion battery, 3.7V,3200mAh, Continuous test
6000 times within 8 hours of full charge |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB |
| Data Storage | 1000 pcs Standards,4000 pcs Samples |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 10℃ to 50℃, humidity does not exceed 85%, no
condensation |
| Storage Environment | -20℃ to 50℃, humidity does not exceed 85%, no
condensation |

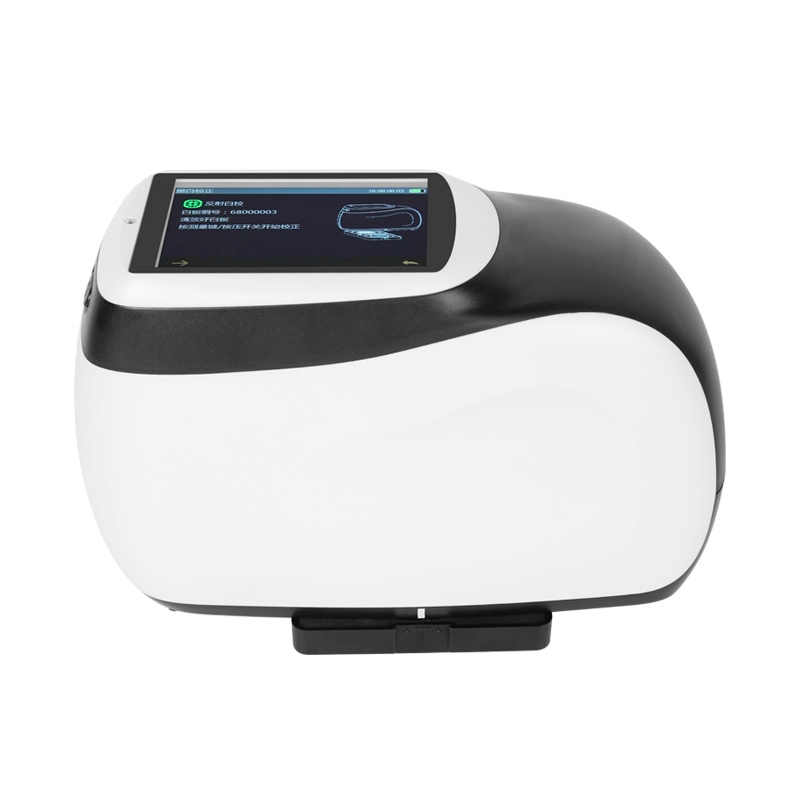

| Calibration | Built-in white board parameters, external white board, black light trap |
| Calibration Interval | 4 hours,8 hours,24 hours,Startup calibration |

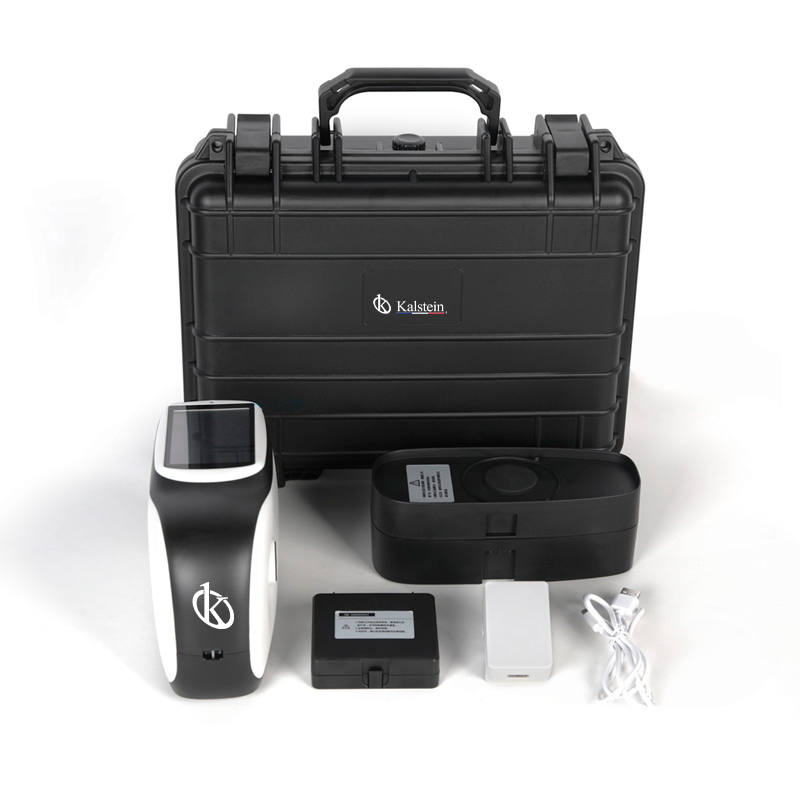

| Standard accessories | Power Adapter, USB Cable, User Guide,PC Software
(download from the official website), Calibration Board,
black light trap,Protective cap, wristband |
| Optional Accessory | Micro-printer |
| Notes | Technical parameters are for reference only, subject to
actual sales products. |
| Model | YR05489 |
| Measurement Geometry | 5 measurement angles (5 illumination sources, 1 receivers) |
Measure Angle | 45° Receiver： |
Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194,
E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545 | |
| Application | Provide accurate and consistent color measurement for metallic
, pearlescent and other complex special effect color products |
| Light Source | Full spectrum LED light source with blue enhancement |
| Lamp Life | 5 years, 3 million times measurements |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400nm-700nm |
| Wavelength Interval | 10nm |
| Measurement Range | 0~600% |
| Semiband Width | 10nm |
| Measuring Aperture | Φ12mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 |
| Other Colorimetric Index | Flop Index |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF), F3,F4,F5,F6,F7(DLF),
F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
Measuring Time | Approx. 1 second for one angle |
Approx. 5 seconds for all angles | |
Repeatability | Spectral reflectance: Standard deviation within 0.08% |
Chromaticity value: ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
Reproducibility | ΔE*<0.10,avg on the gray tile of BCRA tile set |
ΔE*<0.25,avg on the color BCRA tile set | |
| Inter-instrument Error | 0.2ΔE*00(avg on reference Series II BCRA tile set) |
| Effect Parameters | / |
| Effect Measurement | / |
| Effect Repeatability | / |
| Effect Reproducibility | / |
| Trigger mode | Pressure sensing trigger, button trigger, software trigger |
| Measuring Mode | Single measurement, average measurement (1-99), continuous measurement (1-99) |
| Locating Mode | Color camera preview |
| Dimension | L*W*H=195X83X128mm |
| Weight | About 1Kg |
| Power | lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 5.0 |
| Data Storage | 1000 pcs Standards,4000 pcs Samples |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 10℃ to 50℃, humidity does not exceed 85%, no condensation |
| Storage Environment | -20℃ to 50℃, humidity does not exceed 85%, no condensation |
| Calibration | Built-in white board parameters, external white board, black light trap |
| Calibration Interval | 4 hours,8 hours,24 hours,Startup calibration |
| Standard accessories | Power Adapter, USB Cable, User Guide,
PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband |
| Optional Accessory | Micro-printer |
| Notes | Technical parameters are for reference only, subject to actual sales products. |
Technical specifications
| Dimensions | L 34 × W 13 × H 29 cm |
|---|---|
| Weight | 3 kg |
| Manufacturer | Kalstein |
