Description

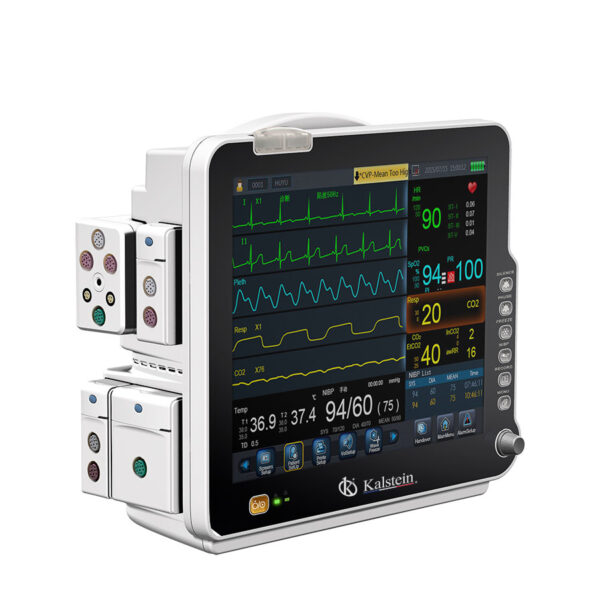

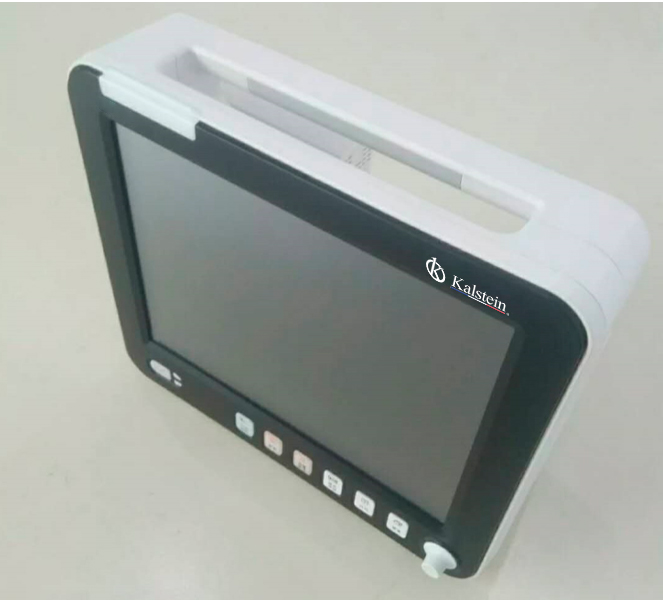

The Multi-parameter Patient Monitor YR02177 is a state-of-the-art medical device designed to provide comprehensive monitoring solutions suitable for Operating Theaters (OT) and Intensive Care Units (ICU). Equipped with a 17-inch LCD screen and modular capabilities, this monitor offers standard parameters including ECG, SpO2, TEMP, NIBP, RESP, and PR/HR, ensuring precise and reliable patient monitoring. Its customizable configuration allows for additional features such as Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., and BIS, catering to diverse medical needs. This advanced monitor delivers superior accuracy and a wide range of options that make it an essential tool for healthcare professionals.
Market Price
The market average price range for the Multi-parameter Patient Monitor YR02177 varies significantly, with typical pricing starting at approximately 4600 USD and reaching up to 5400 USD depending on the configuration and supplementary features selected. This price point reflects the high-quality technology and adaptability that the monitor provides to healthcare facilities of various scales.
Frequently Asked Questions
What is the screen size of the YR02177 Monitor? The monitor features a 17-inch LCD screen for clear and accessible patient data visualization.
Can the monitor be wall-mounted? Yes, the YR02177 offers optional wall-mount accessories for flexible positioning.
Advantages and Disadvantages
Advantages: The YR02177’s modular design ensures scalability, while its comprehensive parameter monitoring provides robust patient assessment. The user-friendly interface and optional add-ons expand its applicability.
Disadvantages: Its advanced features and customization might result in a higher initial investment compared to simpler models.
Product Use in the Field
The Multi-parameter Patient Monitor YR02177 is primarily utilized in critical care settings where real-time data is crucial. It provides continuous monitoring and alerts clinicians to any changes in patient health, thereby facilitating timely interventions. Its adaptability and precision make it ideal for both high-traffic hospitals and specialized clinics.
Recommendations
To optimize the performance and longevity of the YR02177, regular maintenance checks are recommended. Familiarization with its user interface through manufacturer-provided tutorials can also enhance its functionality and user experience. For personalized assistance or to discuss specific configurations, we invite you to request a quote or generate an automatic proposal through Kalstein Plus.
Features
- 17-inch LCD Screen
- Standard Parameters: ECG, SpO2, TEMP, NIBP, RESP, PR/HR
- Optional Configurations and Accessories
- Highly Accurate and Reliable Monitoring
- Customizable Modular Design
Technical Specifications
| Model | YR02177 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
