Description

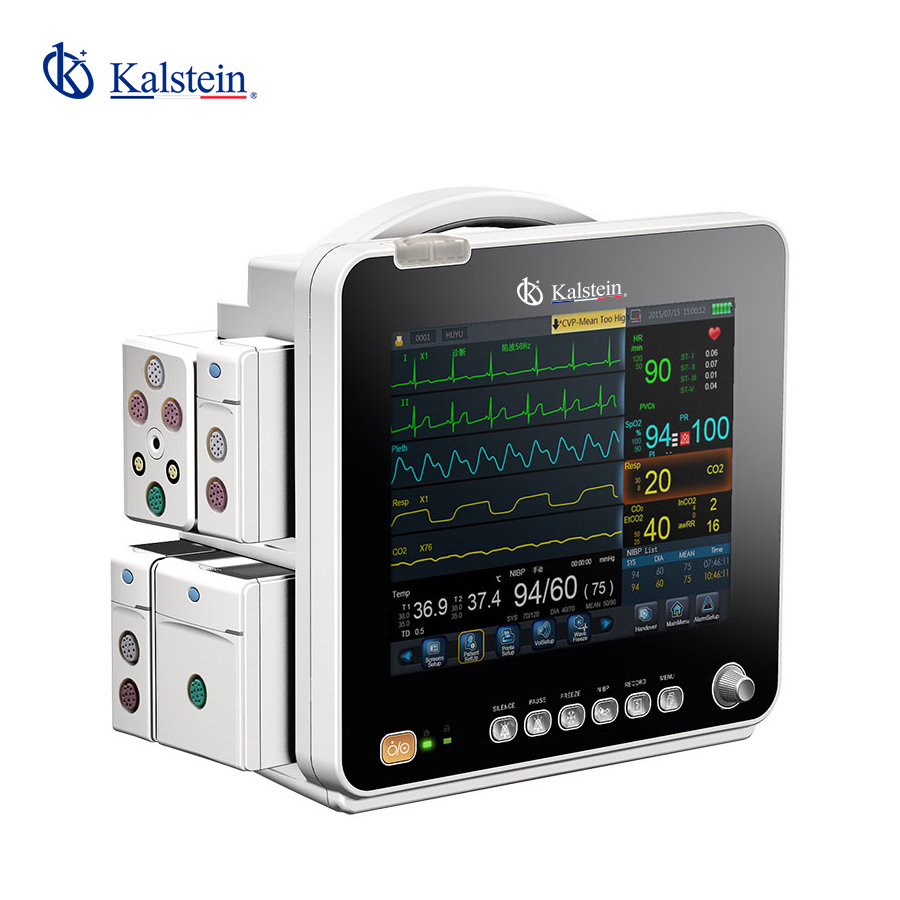

The Patient Monitor YR02175 is an advanced medical device designed for continuous measurement of vital signs in patients, making it ideal for use in Operating Theatres (OT) and Intensive Care Units (ICU). Featuring a 12.1-inch LCD screen, this modular parameter monitor provides comprehensive data through standard measurements like ECG, SpO2, temperature, non-invasive blood pressure (NIBP), respiration (RESP), and pulse rate (PR)/(HR). Equipped with a 5-lead ECG, this monitor supports multiple connection methods, ensuring accuracy and reliability in all patient care settings.
Market Price
In the competitive market of patient monitors, devices with similar features to the YR02175 typically range between $3,900 to $4,700. While prices vary depending on the supplier and additional options, our platform offers an efficient way to generate automatic quotes or request personalized quotations through Kalstein Plus, ensuring you get the best value for your investment.
Frequently Asked Questions
What are the standard parameters monitored by this device? The Patient Monitor YR02175 tracks ECG, SPO2, temperature, NIBP, respiration, and pulse/heart rate.
Is the monitor display easy to read in various lighting conditions? Yes, the 12.1-inch LCD screen offers clear and vibrant displays, suitable for various environments.
Can the device be used for both adult and pediatric patients? Absolutely, it’s designed to cover a wide range of heart rate and respiration needs for both adult and pediatric patients.
Advantages and Disadvantages
The Patient Monitor YR02175 boasts several advantages such as versatility in parameter monitoring, clear display, and adaptability to different patient environments. However, being a sophisticated medical device, it may require thorough training for optimal use, and the initial setup might be complex for some users.
Product Usage in the Field
This monitor is primarily used in critical care settings, assisting medical professionals in tracking patient vitals accurately. It plays a pivotal role in surgeries and emergency rooms by ensuring that changes in a patient’s condition are immediately recognized and addressed.
Recommendations
For optimal performance, it is recommended to regularly calibrate the device and ensure all cables and connections are securely attached. Familiarizing medical staff with the user interface will enhance response times and effectiveness. Always follow the provided maintenance guidelines to extend the life of your monitor.
Features
- 12.1-inch LCD screen
- Comprehensive monitoring including ECG, SpO2, TEMP, NIBP, RESP, PR/HR
- 5-lead ECG support
- Multiple connection methods
- High accuracy and reliability
- Suitable for use in OT and ICU
Technical Specifications
| Model | YR02175 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 25~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 60~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second | |
| Average Time Constant | <10 Second | |
