Polarizing Microscope YR0261
Polarizing Microscope YR0261 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Polarizing Microscope YR0261 is a premium scientific instrument designed for advanced polarizing microscopy, perfect for detailed research and analysis in various fields such as geology, mineralogy, and material science. With its Quintuple Nosepiece Center Adjustable, Strain-free Infinity Plan Objectives ranging from 4x to 100x, and a 170mm Round Stage, this microscope provides precise adjustments and unparalleled clarity for your observations. It is equipped with a versatile Analyzer Unit, including a Bertrand Lens and various compensation devices such as a λ Slip and Quartz Wedge, making it ideal for both orthoscopic and conoscopic observations. The YR0261 also features a robust Illumination system with adjustable brightness for enhanced visualization.
Price in the Market
When considering the investment in a polarizing microscope, the price range in the market can vary significantly based on the features and precision offered. The Polarizing Microscope YR0261 falls in a competitive price range of approximately $2900 to $3700, providing exceptional value given its high-end capabilities and advanced specifications.
Frequently Asked Questions
What type of research is the YR0261 suitable for?
The YR0261 is ideal for research in fields such as mineralogy, geology, and material science where polarizing microscopy is required.
Can this microscope be used for teaching purposes in academic institutions?
Yes, the advanced features and ease of use make it suitable for both professional and educational environments.
Does the microscope include a camera adapter?
Yes, it includes a Photo Adapter and C-Mount 1.0x, making it convenient for image capturing and analysis.
Advantages and Disadvantages
Advantages: Offers a wide range of magnifications, precision adjustments, and advanced optical components for high-quality imaging. The robust construction ensures durability and reliability over time.
Disadvantages: As a high-end instrument, it may require adequate training for optimal use, and its specialized components might not be necessary for basic observations.
Product Use in the Field
The Polarizing Microscope YR0261 is extensively used in geological mapping and mineral identification, enabling detailed study of crystallography and material properties. Its advanced features allow researchers to switch easily between orthoscopic and conoscopic observations, providing comprehensive insights into the samples analyzed.
Recommendations
To fully leverage the capabilities of the **YR0261**, it is recommended to regularly calibrate the optical components and ensure proper maintenance of the light source. Familiarizing yourself with its various lenses and filters can also maximize its utility for your specific research needs. For pricing and further details, you are encouraged to request a quote or generate an automatic quotation through the Kalstein Plus platform today.
Features
- Quintuple Nosepiece Center Adjustable
- Strain-free Infinity Plan Objectives (4x, 10x, 40x, 100x)
- Round Stage Dia.170mm Center Adjustable
- Analyzer Unit with Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
- Transmit Halogen 24V100W Brightness Adjustable
Technical Specifications
| Model | YR0261 | |
| Objective | Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- W.D. 5.1mm | YR0261-op1 |
| Stage | Attachable Stage, Moving Range 30*40mm | YR0261-op1 |
| Filter | Netural Filter ND25 | YR0261-op1 |
| Netural Filter ND26 | YR0261-op1 | |
| Adapter | Photo Adapter | YR0261-op1 |
| C-Mount 1.0x | YR0261-op1 | |
| Items | YR0261 | |
| Optical System | Infinity Optical System | |

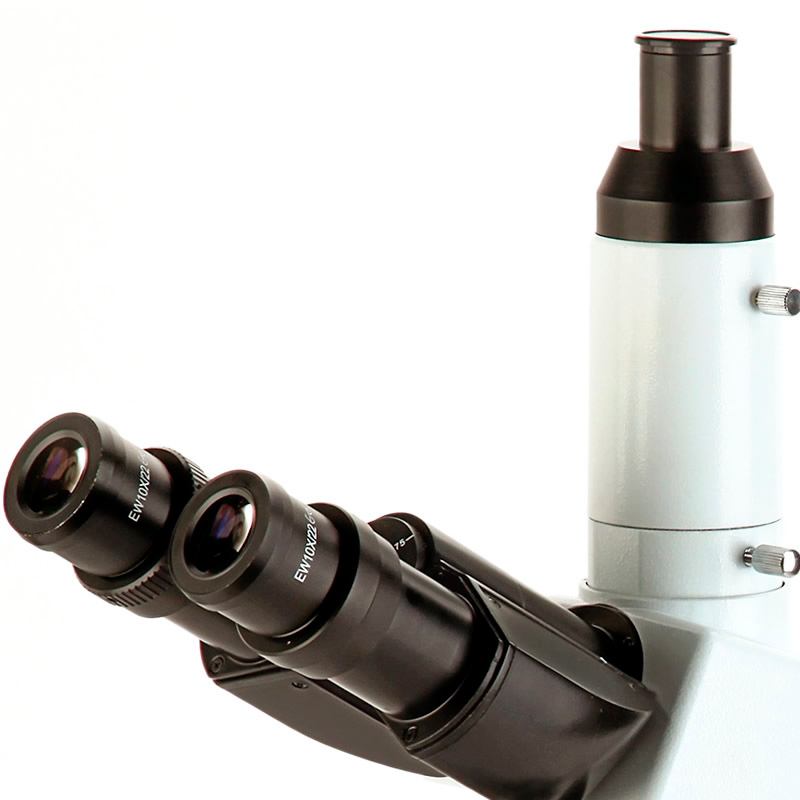

| Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | |
| Eyepiece | Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |
| Plan Eyepiece With Scale of Crosshair | ||
| Plan Eyepiece With Cross | ||
| Plan Eyepiece With Gridding | ||

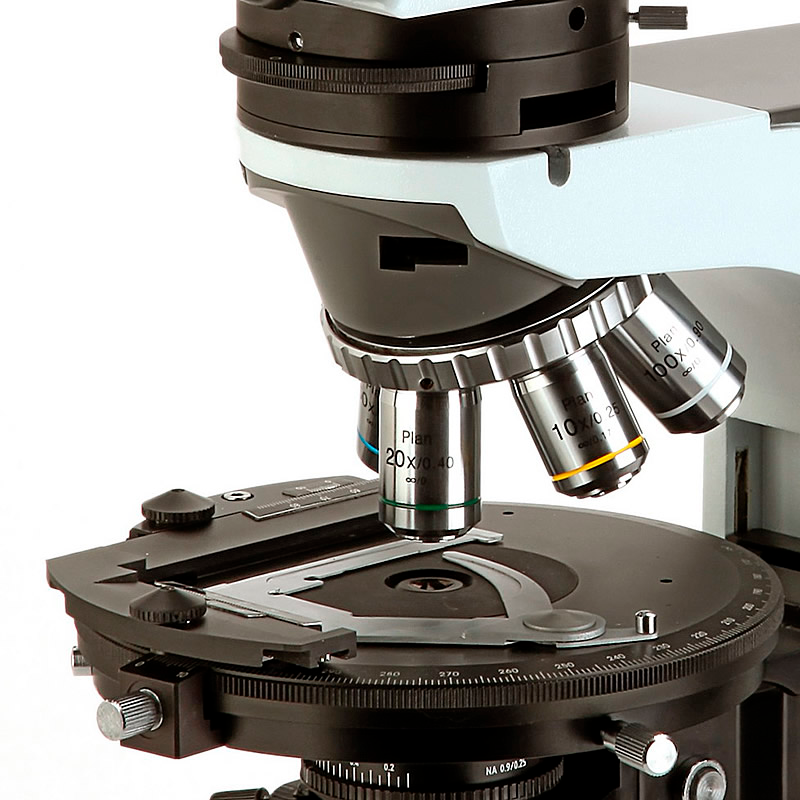

| Objective | Strainfree Infinity Plan Achromatic Objective | |
| 4x/0.10/∞/- W.D.17.3mm | ||
| 10x/0.25/∞/0.17 W.D.10mm | ||
| 40x/0.65/∞/0.17 W.D.0.54mm | ||
| 100x/1.25/∞/0.17 W.D.0.13mm | ||
| Nosepiece | Backward Quintuple Nosepiece, Center Adjustable | |
| Analyzer | 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale) | |
| Switch Between Orthoscopic And Conoscopic Observation | ||
| Bertrand Lens Postion Adjustable | ||
| Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge | ||
| Working Stage | Polarizing Rotatable Stage, Dia.170mm, Center Adjustable | |
| 360° Scale, Minimum Division 1° | ||
| Minimum Reading 6′ By Means of Vernial Scale | ||
| 45° Click Stop Knob | ||
| Condenser | Strainfree Swing Condenser N.A.0.95/0.25 | |

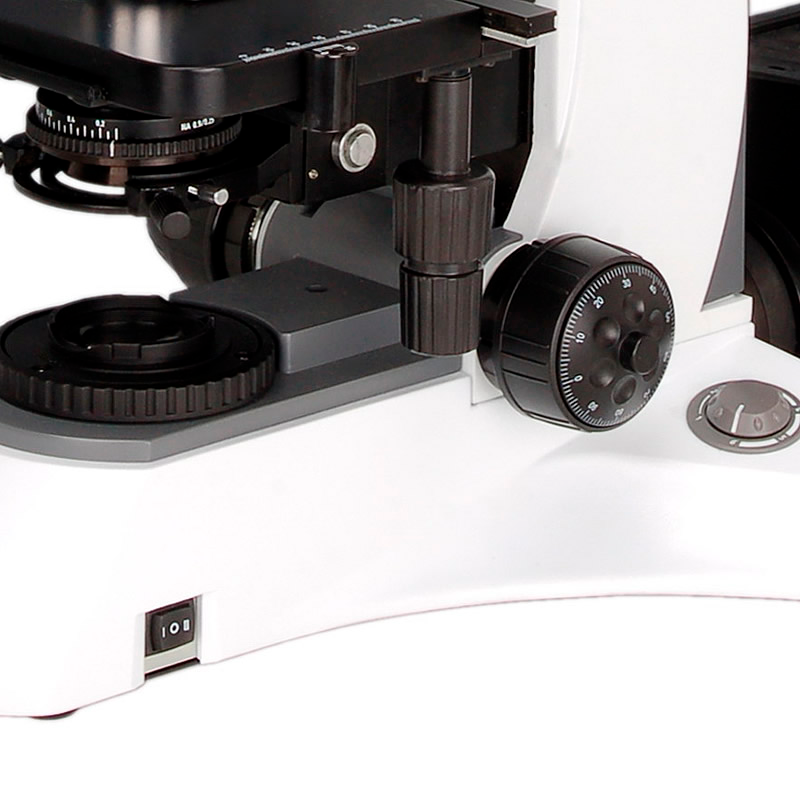

| Focusing | Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation | |
| Polarizer | 360° Rotatable, 0° Position Adjustable | |
| Filter | Blue Filter, Dia.45mm | |
| Illumination | Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable | |
Technical specifications

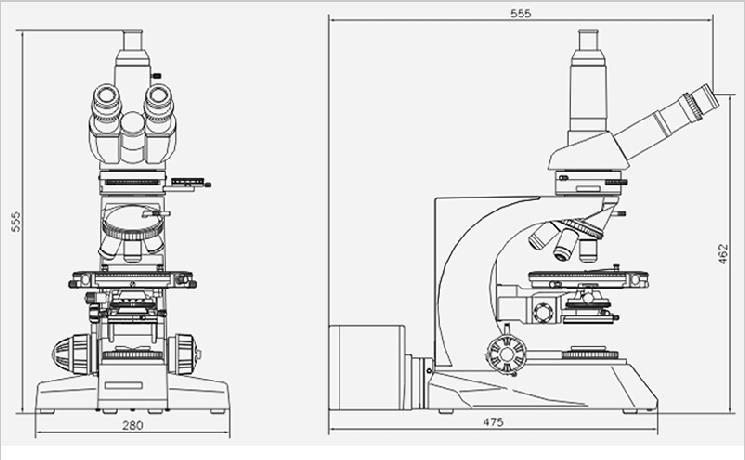

| Dimensions | L 46.3 × W 38.4 × H 83 cm |
|---|---|
| Weight | 16.5 kg |
| Manufacturer | Kalstein |
