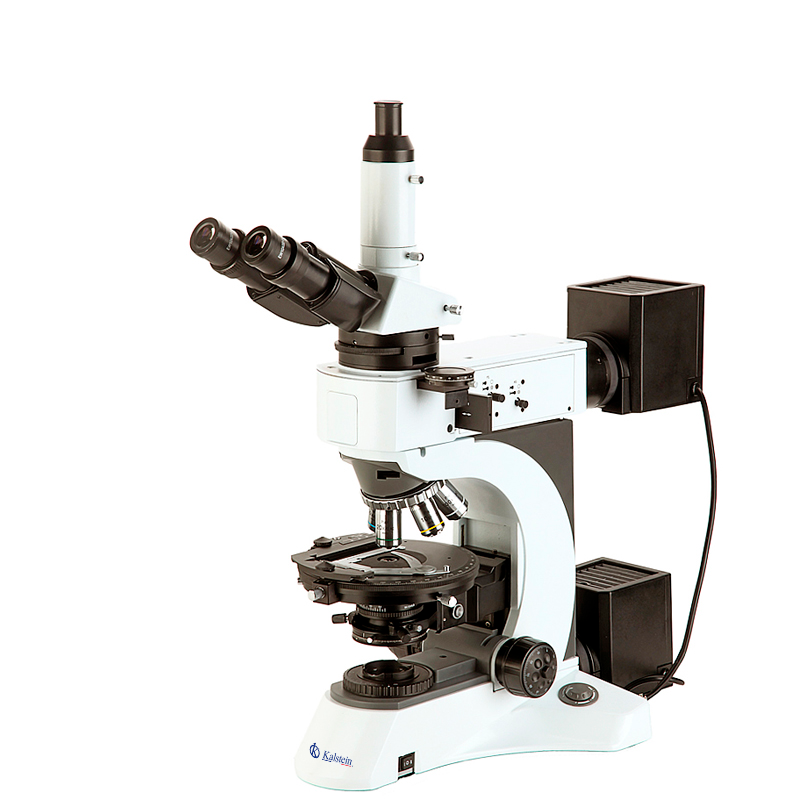

Polarizing Microscope YR0262 – YR0263

ManufacturerKalstein

Description

The Polarizing Microscope YR0262 – YR0263 is a state-of-the-art instrument designed for high-precision analysis and research. Featuring an Infinity Optical System and a Seidentopf Trinocular Head with 30° inclination, this microscope allows for clear and adjustable viewing, perfect for professional use in laboratories. With quintuple nosepieces and long working distance strain-free infinity plan objectives ranging from 5x to 100x, this microscope offers versatility in observation. It includes integrated analyzer units with Bertrand Lens, λ Slip, and other advanced optical compensators, making it a comprehensive tool for both transmit and reflect studies.

Market Price

The market price for high-end polarizing microscopes varies widely depending on features and brand reputation. The Polarizing Microscope YR0262 – YR0263 typically falls within a price range of approximately USD 2500 to USD 3300, offering competitive value given its comprehensive range of professional features and accessories.

Frequently Asked Questions

Q: Can the microscope be used for both orthoscopic and conoscopic observations?
A: Yes, it features a switch mechanism to easily transition between orthoscopic and conoscopic modes, enhancing its versatility.

Q: What kind of illumination does the microscope provide?
A: It offers both transmitted and reflected halogen light with adjustable brightness to suit various observations.

Advantages and Disadvantages

Advantages: The microscope’s advanced optical systems and adjustable components provide clarity and precision. Its versatility with both transmitted and reflected light makes it ideal for a variety of studies. Reliability is assured with quality construction and design.
Disadvantages: The advanced features can require a learning curve for new users, and the initial investment is significant, reflecting its professional-grade specifications.

Product Use in the Field

This microscope is highly effective in fields such as mineralogy, geology, and material sciences, where precise sample observation and analysis are required. Its polarization capabilities are crucial for identifying and studying minerals and other anisotropic materials with high precision.

Recommendations

To ensure optimal performance, regular maintenance such as lens cleaning and mechanical checks is advised. For best results, adjust the illumination according to sample type and use the available filters for enhanced visualization.

Features

  • Infinity Optical System
  • Seidentopf Trinocular Head with Diopter Adjustment
  • LWD Strain-free Infinity Plan Objectives
  • Integrated Analyzer with Bertrand Lens and Optical Compensators
  • Dual Illumination System with Adjustable Brightness
  • Comprehensive Range of Optional Accessories

Technical Specifications

Model YR0262 YR0263
Optical System Infinity Optical System

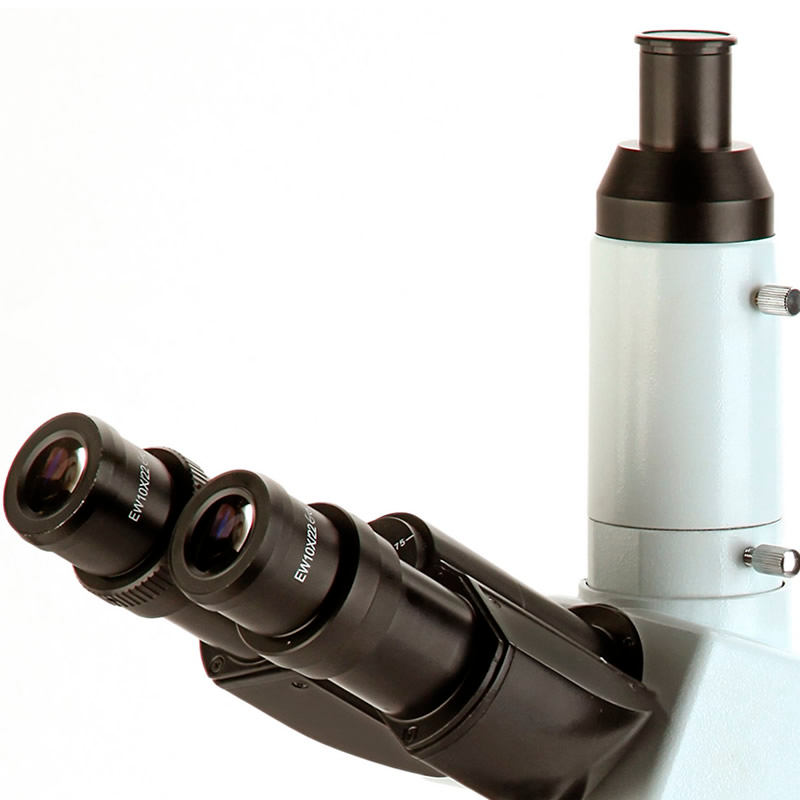

Head Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable
Eyepiece Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Plan Eyepiece With Scale of Crosshair
Plan Eyepiece With Cross
Plan Eyepiece With Gridding

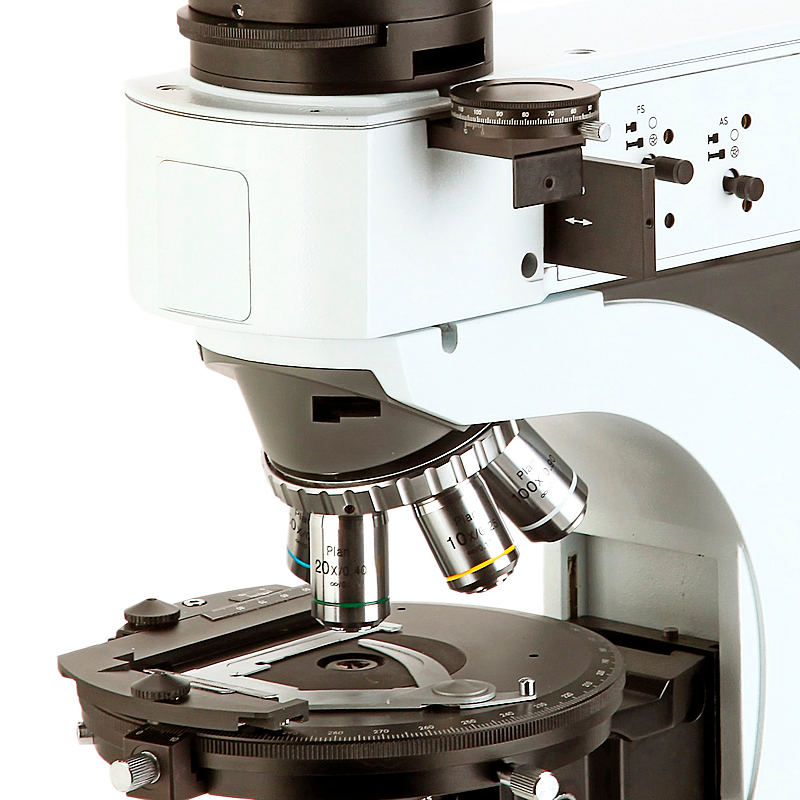

Nosepiece Backward Quintuple Nosepiece
Objective Strainfree LWD Infinity Plan Achromatic Objective 5x/0.12/∞/- W.D.15.5mm
10x/0.25/∞/- W.D.10mm
20x/0.4/∞/0 W.D.4.3mm
50x/0.75/∞/0 W.D.0.32mm
100x/0.8/∞/0 W.D.2mm
Strainfree Infinity Plan Achromatic Objective 40x/0.65/∞/0.17 W.D.0.54mm o
100x/1.25/∞/0.17 W.D.0.13mm o
Nosepiece Backward Quintuple Nosepiece, Center Adjustable
Analyzer 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale)
–Switch Between Orthoscopic And Conoscopic Observation
–Bertrand Lens Postion Adjustable
–Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge
Working Stage Polarizing Rotatable Stage, Dia.170mm, Center Adjustable
360° Scale, Minimum Division 1°
Minimum Reading 6′ By Means of Vernial Scale
45° Click Stop Knob
Condenser Strainfree Swing Condenser N.A.0.95/0.25

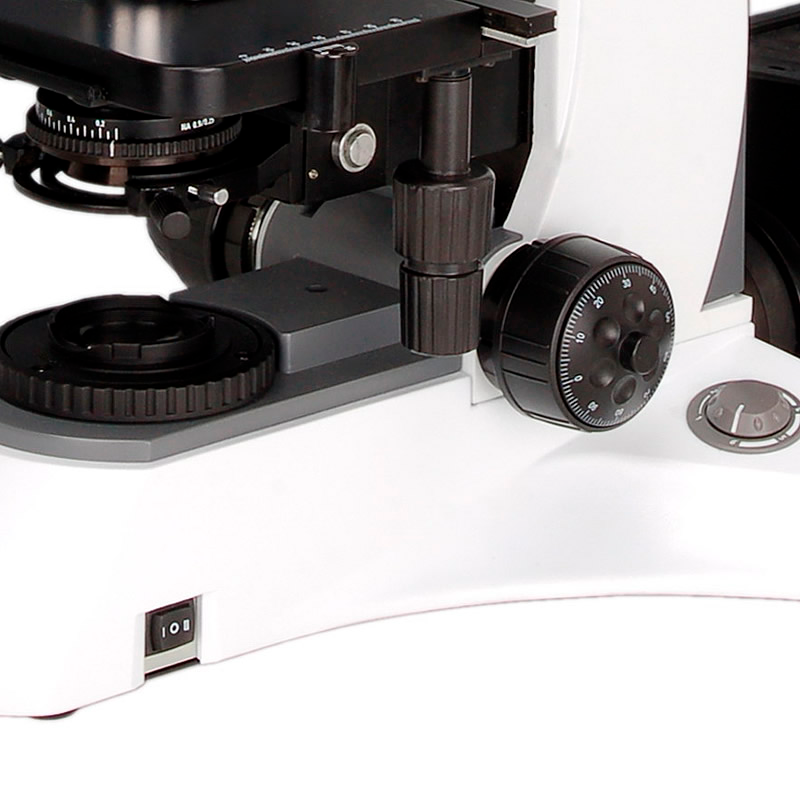

Focusing Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation
Polarizer For Reflect: Fixed Polarizer
For Transmit: 360° Rotatable Polarizer, 0° Position Adjustable o
Illumination Reflect Light Halogen Lamp 24V100W, Brightness Adjustable
Transmit Light Halogen Lamp 24V100W,Brightness Adjustable o
Blue Filter, Dia.45mm
Reflect, Reflect & Transmit Polarizing Microscope Optional Accessories
Stage Attachable Stage, Moving Range 30*40mm YR0263-op1
Filter For Netural Filter ND25, Dia.45mm YR0263-op2
Transmit Light: Netural Filter ND6, Dia.45mm YR0263-op3
For Blue Filter, Dia.25mm YR0263-op4
Reflect Light: Netural Filter ND25, Dia.25mm YR0263-op5
Netural Filter ND6, Dia.25mm YR0263-op6
Adapter Photo Adapter YR0263-op7
C-Mount 1.0x YR0263-op8
C-Mount 0.5x YR0263-op9

Additional information

Weight 16,5 kg

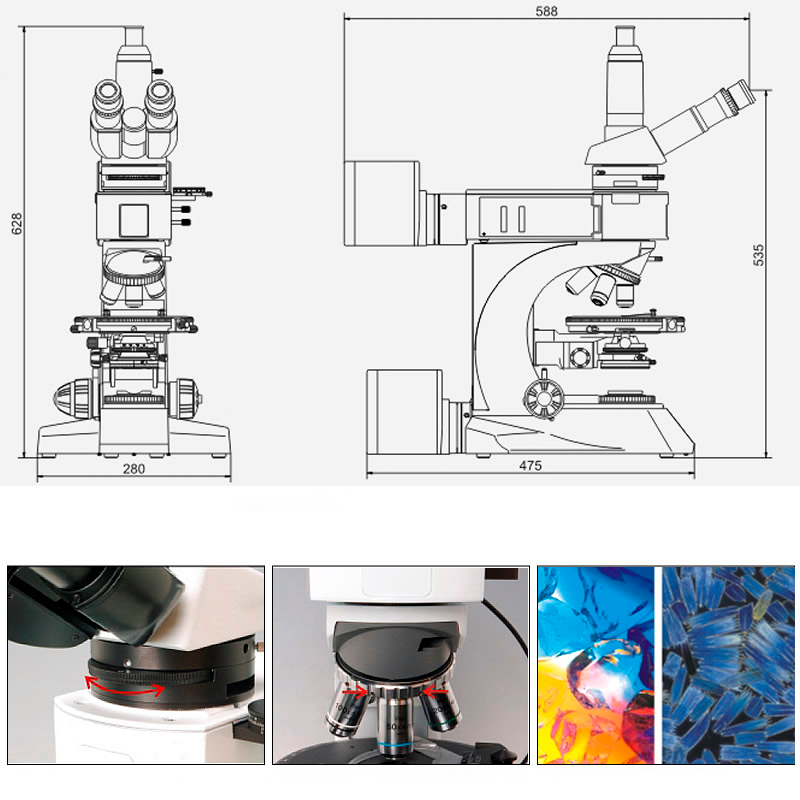

Dimensions 46,3 × 38,4 × 83 cm
Model

YR0262, YR0263
