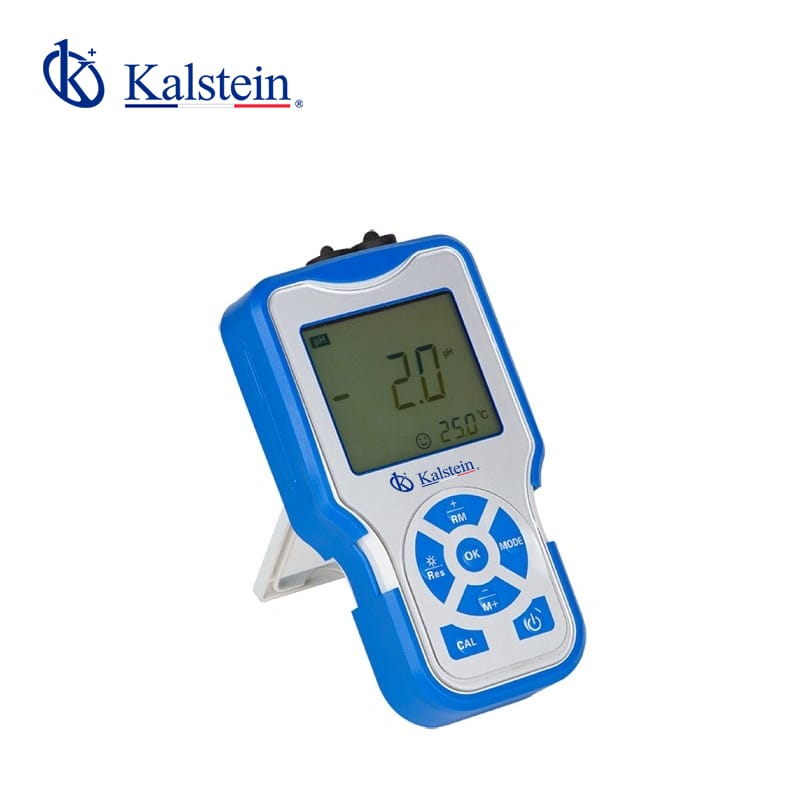

Description
- Large LCD screen with controllable white backlight.
- Built-in microprocessor chip has Intelligent functions such as auto calibration, ATC, data storage, function settings, auto diagnosis, auto power off, and undervoltage prompt, etc.
pH Mode
- Auto recognition of 25 buffers with three kinds of options: Europe & USA, NIST and China. Support 1, 2, 3 point calibration
DO Mode
- It has functions of ATC, auto salinity compensation and manual pressure compensation.
- Polarographic DO electrode, short polarization time (3-5 minutes).
Technical Specifications
| Model | YR06381 | |
|
pH
|
Measuring range | (-2.00~19.99)pH |
| Resolution | 0.1/0.01 pH | |
| Accuracy | Meter:±0.01pH; Overall: ±0.02pH | |
| Input impendance | ≥1×1012 Ω | |
| Stability | ±0.01 pH/3h | |
| Temp. compensation | (0~100)ºC (Auto/manual) | |
|
mV
|
Measuring range | ±1999.9mV |
| Resolution | 1mV | |
| Accuracy | ±0.1% FS | |
|
DO
|
Measuring range | (0 ~ 20.00) mg/L(ppm), (0 ~ 200.0)% |
| Resolution | 0.1/0.01 mg/L(ppm), 1/0.1 % | |
| Accuracy | Electrode: ±0.10 mg/L, Instrument: ±0.40 mg/L | |
| Response time | ≤30s (25ºC, 90%response) | |
| Residual current | ≤0.1 mg/L | |
| Temp. compensation | (0 ~ 45)ºC (auto) | |
| Salinity compensation | (0 ~ 45) ppt (auto) | |
| Pressure compensation | (66 ~ 200) kPa (manual) | |
| Auto calibration | Air saturated by water, water saturated by air | |
| Electrode type | Polarographic | |
|
Temp.
|
Measuring range | (0 ~ 100)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
|
Other
|
Data storage | 200 sets |
| Power | Two AA batteries (1.5V x2) | |
| Ambient Temp. | 5 ~ 35 ºC | |
| Ambient humidity | ≤85% | |
| IP grade | IP57 Dustproof and waterproof | |
| Dimensions/N.W. | (65×120×31)mm/180g | |
| Shipping size/G.W. | (460×300×55)mm/1Kg | |
