Portable Veterinary Digital X-Ray (DR) YR06160

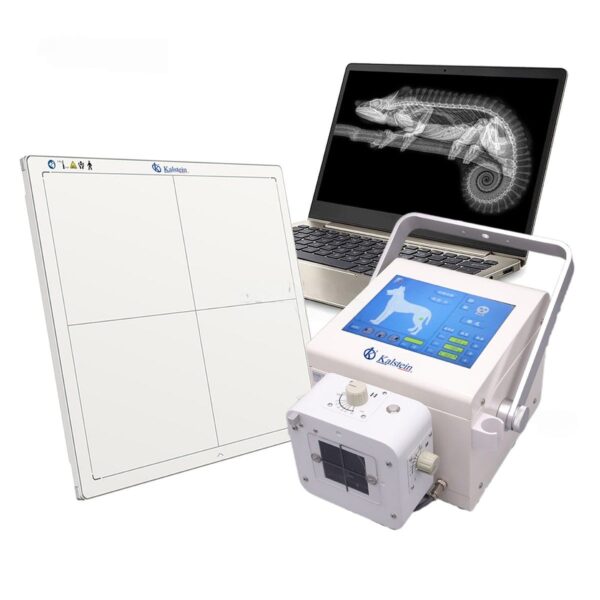

The Portable Veterinary Digital X-Ray (DR) YR06160 is an advanced imaging system designed for veterinary use. Featuring a 10.4-inch touch screen display, this portable X-ray machine is equipped with self-protection and self-diagnosis features to ensure effective operation. With high-precision control over tube voltage and current and multiple anatomy memory patterns, veterinary professionals can achieve precise imaging results. The unit offers various exposure methods including touch screen, hand switch, or remote control, enhancing convenience and flexibility during examinations. Moreover, the X-ray tube is fully encapsulated with lead for optimal protection against radiation leakage.

Market Price

Veterinary digital X-ray machines like the YR06160 generally range in price from $31,000 to $32,100 in the market. This makes it a competitive choice for veterinary professionals seeking a balance between advanced technology and cost-effectiveness. These prices can vary based on supplier, additional features, and warranty options included with the purchase.

Frequently Asked Questions

How portable is the YR06160? The unit is designed for easy mobility, with a main unit weight of only 19kg, making it suitable for use across different locations and settings. What types of animals can be diagnosed using this equipment? The YR06160 is versatile and can be used for a wide range of animal sizes, from pets such as dogs and cats to larger animals like horses. Does the device come with a warranty? Yes, most suppliers offer a standard warranty with the option to purchase extended coverage for added protection.

Advantages and Disadvantages

The key advantages of the YR06160 include its portability, precise imaging capabilities, and ease of use thanks to its intuitive touch screen interface. However, it may require specialized training for new users to maximize its features, and initial setup can be complex.

Field Use

The Portable Veterinary Digital X-Ray (DR) YR06160 is especially beneficial in field settings where mobility and quick setup are crucial. Veterinarians can transport this machine easily to off-site locations or different rooms within a clinic, facilitating on-the-spot diagnosis without the need for multiple visits.

Recommendations

To maximize the efficiency and longevity of your device, regularly perform maintenance checks and ensure it is operated by trained personnel. Consistent calibration and careful handling during transport will also contribute to preserving its accuracy and functionality over time. For more information, or to get a customized quote, consider using the Kalstein Plus platform to simplify the process.

Features

- 10.4-inch touch screen display - Self-protection and self-diagnosis features - Precise control of tube voltage and current - 48 presupposed anatomy memory patterns - Multiple exposure options (touch screen, hand switch, remote control) - Lead-encased tube for radiation protection

Technical Specifications

Model		YR06160
Generator	Power	5kW
	kV Range	40~110kV
	mA Range	20~100mA
	mAs Range	0.8-200mAs
	Working Frequency	≥40kHz
	Exposure time	40ms~4000ms
X-ray tube	Anode heat storage	56KHU
	Focus	1.8mm
	Inherent filtration	1mm Al/75Kv
	Light source	LED
Wireless flat panel detector	Scintillator	CSI
	Active Area	10*13 inch
	Pixel Matrix	2528*3318
	Data Interface	WiFi / Tethered
	Trigger Mode	AED (optional) / Software
	Dimensions	269mm*362mm*16mm
	Weight	2.2kg
Touch Screen	Dimension	10.4-inch
Main Unit	Weight	19kg
	Dimension	290mm*265mm *230mm
Power Supply	Voltage	AC 220V±10%, 50Hz±1Hz
