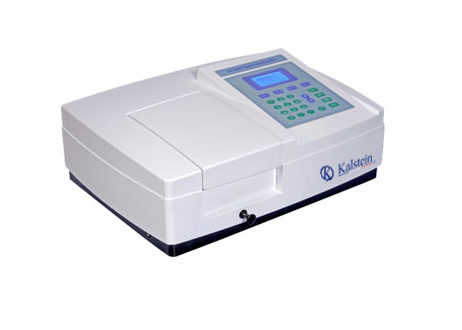

UV-VIS Spectrophotometer- YR01849

Manufacturer: Kalstein

Description

The UV-VIS Spectrophotometer YR01849 from Kalstein is a cutting-edge tool designed to provide precise measurements of light absorption and transmission across wavelengths ranging from 320 to 1100 nm. Primarily utilized for DNA and protein testing, this model showcases an advanced optical system with a fully sealed monochromator secured by a silicon dioxide membrane. Such engineering reduces stray light to less than 0.05% T, ensuring consistently accurate results. It comes equipped with a 128 x 64-point LCD screen for clear data display and offers storage for up to 200 data groups and standard curves. Additionally, the spectrophotometer supports upgrades to scanning mode via UV-Professional software, which enhances its functionality with quantitative, kinetic, multi-wavelength, and wavelength scanning features.

Market Price

The YR01849 UV-VIS Spectrophotometer is competitively priced, with a market average ranging between $2,600 and $2,900 USD. This makes it an optimal choice for biology, chemistry, and biochemistry labs that demand precise and dependable measurements in both the ultraviolet and visible spectrum. To explore a personalized pricing structure, engage with the straightforward quotation services offered on the Kalstein Plus platform, which guarantees a tailored purchasing experience.

Frequently Asked Questions

  • What applications is the YR01849 suitable for?
    This spectrophotometer excels in laboratory settings that require detailed DNA/protein testing, quantification, and wavelength scanning.
  • Is it capable of operating in scanning mode?
    Yes, it integrates smoothly with UV-Professional software to enable advanced scanning functionalities.
  • How much data can it store?
    It can accommodate up to 200 data groups and 200 standard curves, ensuring comprehensive laboratory record-keeping.

Advantages and Disadvantages

The YR01849 stands out with its superior optical design minimizing stray light, considerable storage capacity, and user-friendly LCD interface. Its compatibility with UV-Professional software extends its analytical potential. However, its 16 kg weight might pose challenges for frequent relocations, although its robust build guarantees stability and precision for lab analyses.

Field Applications

This spectrophotometer is a valuable asset in both research and clinical labs where accuracy is paramount. Its capability to perform both quantitative and qualitative DNA/protein scans makes it versatile for numerous experiments. The storage facility ensures long-term data tracking, while the USB port provides seamless computer integration for data management.

Recommendations

Optimal performance of the YR01849 is achieved with regular calibrations and maintaining the device in a clean, dust-free setting. The sealed monochromator extends the lifespan and accuracy of the optical system. Consider updating your laboratory toolkit with a personalized quote from Kalstein Plus, and discover how the YR01849 UV-VIS Spectrophotometer can enhance your analytical outcomes, delivering consistent and trustworthy results with each use.

Features

  • Wavelength Range: 320-1100nm
  • Bandwidth: 2nm
  • Wavelength Accuracy: ±0.5nm
  • Wavelength Repeatability: ≤0.2nm
  • Auto Wavelength Setting
  • Photometric Accuracy: ±0.2%T
  • Photometric Repeatability: 0.2%T
  • Photometric Range: -0.3-3A, 0-200%T, 0-9999C
  • Stability: ± 0.001A/h @ 500nm
  • Stray Light: ≤0.05%T@220nm, 360nm
  • Data Output Port: USB Port
  • Printer Port: Parallel Port
  • Display: 128*64 Dots LCD
  • Lamps: Tungsten Lamp
  • Detector: Silicon Photodiode
  • Power Requirements: AC 220V/50Hz or AC 110V/60Hz
  • Dimensions: 460*360*225mm
  • Weight: 16kg

Technical Specifications

Model YR01849
Wavelength Range 320-1100nm
Bandwidth 2nm
Wavelength Accuracy ±0.5nm
Wavelength Repeatability ≤0.2nm
Wavelength Setting Auto
Photometric Accuracy ±0.2%T
Photometric Repeatability 0.2%T
Photometric Range -0.3-3A, 0-200%T, 0-9999C
Stability ± 0.001A/h @ 500nm
Stray Light ≤0.05%T@220nm, 360nm
Data Output Port USB Port
Printer Port Parallel Port
Display 128*64 Dots LCD
Lamps Tungsten Lamp
Detector Silicon Photodiode
Power Requirements AC 220V/50Hz or AC 110V/60Hz
Dimension 460*360*225mm
Weight 16kg

Additional information

Weight 25 kg
Dimensions 62 × 53 × 37 cm
