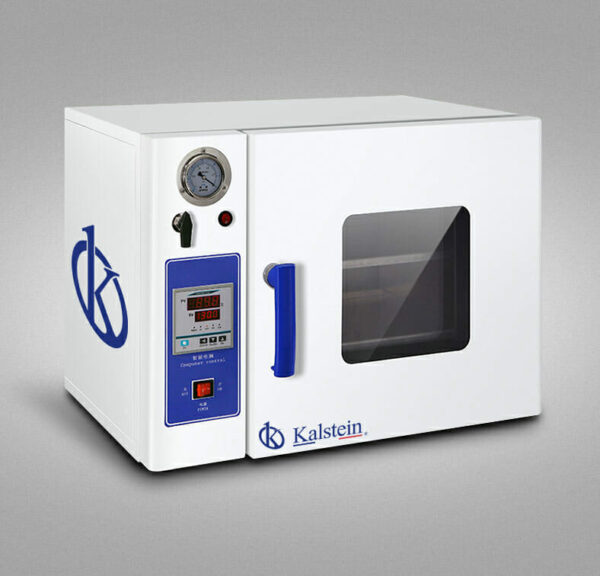

Vacuum Drying Oven YR05265-1 (SS) // YR05995 (S)

ManufacturerKalstein

Description

The Vacuum Drying Oven YR05265-1 (SS) // YR05995 (S) is an essential tool for a variety of scientific fields, including biochemical, chemical, and pharmaceutical industries, as well as for agricultural research and environmental protection. This state-of-the-art vacuum oven facilitates efficient drying, roasting, disinfection, and sterilization processes, especially for heat-sensitive materials. Its advanced design ensures precise temperature control and a reliable vacuum environment, making it an ideal choice for laboratories and research facilities worldwide.

Market Price

The vacuum drying ovens, similar to the YR05265-1 (SS) and YR05995 (S), are generally priced between $3000 and $4000 in the current market. This pricing range reflects the high-quality construction and advanced technology that these models offer for laboratory and industrial applications.

Frequently Asked Questions

What materials can be dried using this vacuum oven? This oven is suitable for drying powders, granular samples, and other heat-sensitive substances, thanks to its capacity to reduce the boiling point of liquids under vacuum conditions.

How do I ensure a proper seal to maintain the vacuum? The oven door features an adjustable seal tightened by the user, along with a silicone rubber sealing ring, ensuring a high vacuum is maintained within the chamber.

Advantages and Disadvantages

The primary advantage of the Vacuum Drying Oven is its ability to handle heat-sensitive materials by significantly lowering the boiling point, thus shortening drying times. Its microcomputer intelligent PID control provides accurate temperature management. A potential disadvantage might be its higher initial investment cost compared to conventional ovens; however, its efficiency and precision make it a cost-effective solution in the long run.

Product Use in the Field

In practical settings, this vacuum oven is utilized for the drying and sterilization of laboratory glassware and reagents. Its explosion-proof double-layer glass door allows users to observe the process safely. The robust design and effective temperature control system mean users can rely on this oven for consistent and reproducible results across all applications.

Recommendations

For optimal performance, regularly check the door seal and vacuum system for any leaks. Ensure that the oven is placed in a well-ventilated area to avoid overheating. When not in use, maintain the oven’s interior and exterior by cleaning it with appropriate cleaning agents, prolonging its lifespan and maintaining its efficiency.

Key Features

  • Arc-shaped inner chamber with electrostatically sprayed cold-rolled steel exterior.
  • Interior options available in stainless steel or cold-rolled steel.
  • Adjustable door tightness with silicone rubber sealing ring.
  • Microcomputer intelligent PID control with timing and over-temperature alarm functions.
  • Tempered and explosion-proof double-layer glass door.

Technical Specifications

Model YR05265-1 (SS) YR05988 (S) YR05989 (S) YR05990 (S) YR05991 (S)
Voltage (V) 220
Temp.range (℃) 50~200
Timer 0~999 min
Accuracy (℃) ±1
Vacuum degree Pa <133
Power (KW) 2 0.8 1.2 2 2
Interior (mm)
(H×W×D)
485x440x500 315×265×280 400×370×350 485×400×425 485x440x500
Exterior (mm)
(H×W×D)
1580x700x720 450×635×465 570×750×515 620×780×600 1580x700x720
Package Size (mm)
(H×W×D)
1770x790x790 570×720×545 690×830×600 740*900*710 1770x790x790
Net.Weight (Kg) 120 45 68 85 120
Model YR05992 (S) YR05993 (S) YR05994 (S) YR05995 (S)
Voltage (V) 220
Temp.range (℃) 50~200
Timer 0~999 min
Accuracy (℃) ±1
Vacuum degree Pa <133
Power (KW) 1 1.4 2 2
Interior (mm)
(H×W×D)
280×265×245 370×370×315 455×440×390 485x440x500
Exterior (mm)
(H×W×D)
450×635×465 570×750×515 620×780×600 1580x700x720
Package Size (mm)
(H×W×D)
570×720×545 690×830×600 740*900*710 1770x790x790
Net. Weight (Kg) 43 66 81 120

Additional information

Weight N/A
Dimensions N/A
Model

YR05265-1 (SS), YR05988 (S), YR05989 (S), YR05990 (S), YR05991 (S), YR05992 (S), YR05993 (S), YR05994 (S), YR05995 (S)
