The

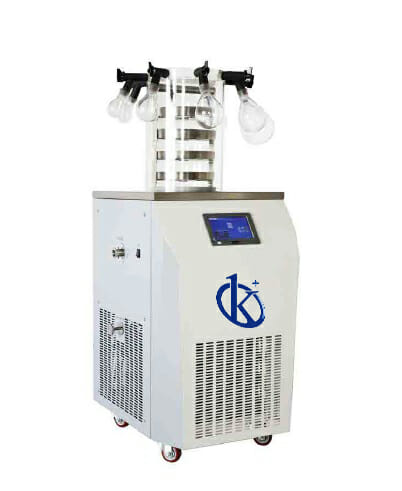

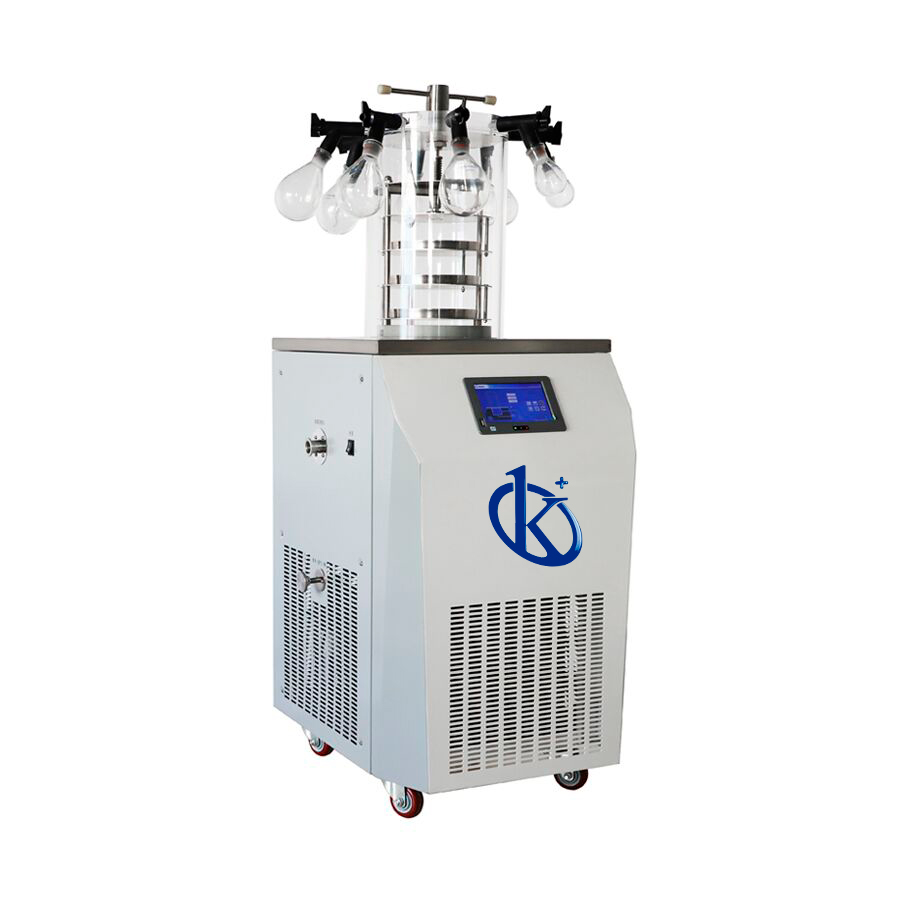

Vertical Laboratory Freeze Dryer YR05194 // YR05197 is a state-of-the-art piece of equipment designed to meet the lyophilization needs of various sectors including medicine, pharmaceuticals, biological research, chemistry, and food industries. Its advanced vacuum freeze-drying system allows for the preservation of materials through lyophilization, making them easy to store for extended periods. When rehydrated, these materials retain their original biochemical characteristics. This freeze dryer is tailored for laboratory use, fulfilling routine lyophilization processes with utmost efficiency.
Market Price
In the current market, freeze dryers like the YR05194 // YR05197 generally range between $6,800 to $7,600 USD. This range reflects the high-quality construction and the versatility of the device, making it a worthwhile investment for laboratories seeking a reliable lyophilization solution.
Frequently Asked Questions
What is the capacity of the freeze dryer? The YR05194 model offers a freeze-dried area of 0.18m²/0.27m² and panel material capacity of 1.8L/2.7L, while the YR05197 model comes with 0.09m² and a 0.9L capacity.
How does this freeze dryer handle vacuum switching? It supports flexible switching of vacuum units (Pa, mBar, etc.) and includes a vacuum pump protection function.
Advantages and Disadvantages
The Vertical Laboratory Freeze Dryer YR05194 // YR05197 boasts numerous advantages such as an intuitive 7-inch touch screen, stainless steel construction, and a pre-freezing function in the cold trap. However, the weight of 105 kg might be a consideration for laboratories with mobility needs.
Product Use in the Field
In practical applications, this freeze dryer is vital for maintaining the stability of thermosensitive materials. It is commonly used to freeze-dry biological samples, pharmaceuticals, and food products, preserving them with minimal degradation.
Recommendations
To maximize the longevity and performance of your freeze dryer, regularly clean the stainless steel cold trap and follow the manufacturer's guidelines for maintenance. Utilize the warning system to operate within safe parameters.
Features
- Warning System when operating
- 7 Inch Touch Screen
- Stainless steel cold trap and operating table
- A large opening cold trap with pre-freezing function
- Cold Trap Electric Defrost
- Flexible switching of vacuum units (Pa, mBar, etc.)
- Vacuum pump protection function with set the vacuum pump to start the cold trap temperature.
Technical Specifications
| Model |
YR05194 |
YR05195 |
YR05196 |
YR05197 |
| Freeze-dried area |
0.18m²/0.27m² |
0.09m² |
0.18m²/0.27m² |
0.09m² |
| Panel material (material thickness 10mm) |
1.8L/2.7L |
0.9L |
1.8L/2.7L |
0.9L |
| Material Tray |
Ф240mm
4/6 layers |
Ф200mm
3 layers |
Ф240mm
4/6 layers |
Ф200mm
3 layers |
| Material plate spacing |
70mm |
| Cold trap temperature |
≤ -56 ° C (no load), optional ≤ -80 ° C (no load) |
| Water catching capacity |
6 kg/24h |
| Ultimate vacuum |
≤ 5pa (no load) |
| Power |
1400 W |
| Host Weight |
105 KG |
| Mainframe Dimensions |
630×580×1415mm |
630×580×1510mm |
630×580×1435mm |
630×580×1540mm |
