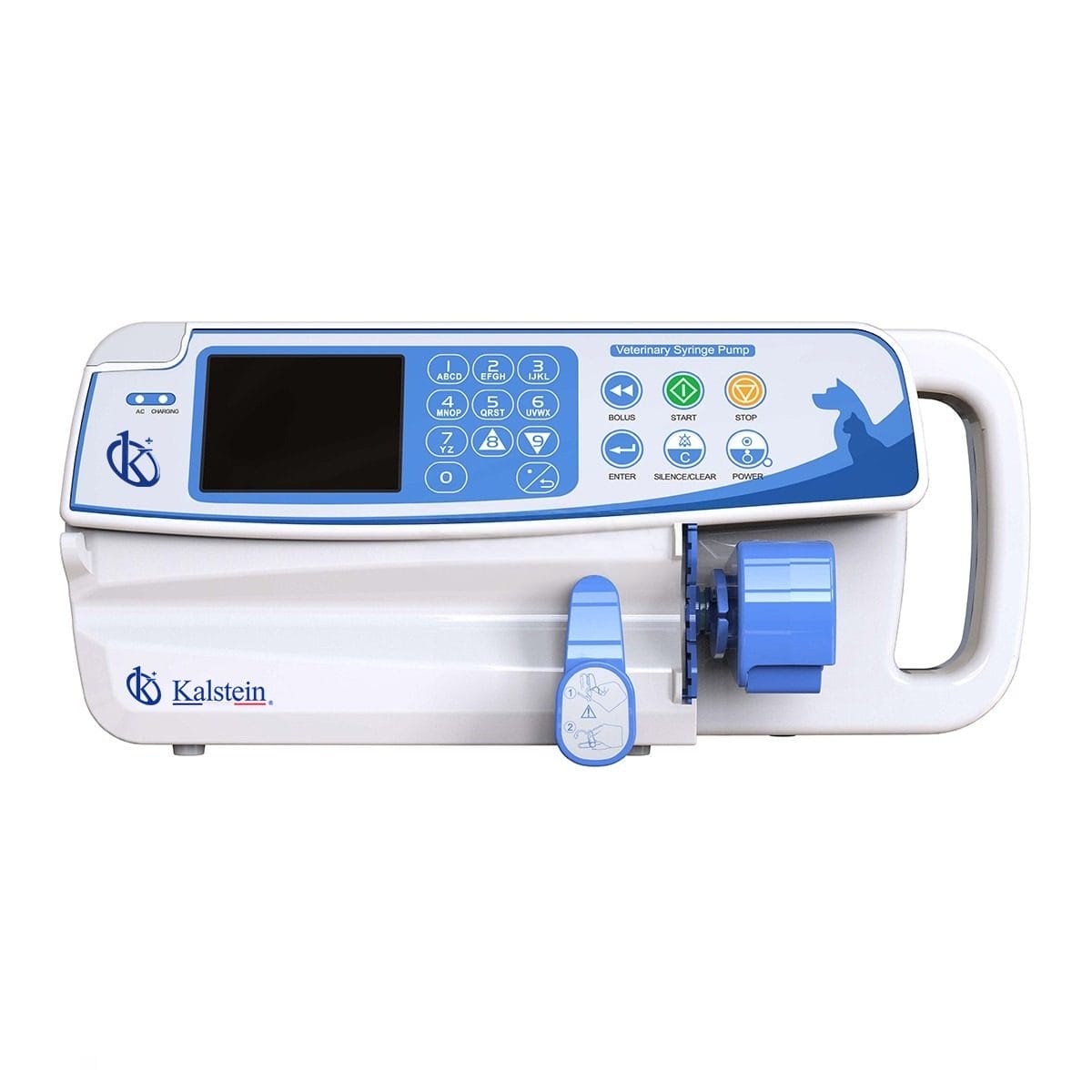

Veterinary Syringe Pump YR06185
Veterinary Syringe Pump YR06185 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Veterinary Syringe Pump YR06185 stands out in the market with its large, colorful LCD display for easy monitoring. It features unique syringe recognition technology and dynamically displays pressure to ensure precise and safe infusions. Equipped with a double CPU, it enhances safety, while its adjustable buzzer volume and anti-bolus function make it user-friendly in any veterinary setting. Moreover, its 90-degree rotatable pole clamp is convenient for use on both horizontal bars and vertical IV poles, making it versatile and reliable.
Market Price
In the market, veterinary syringe pumps like the YR06185 are generally priced between $800 and $1600 USD. This range provides an idea of what to expect when considering the addition of this innovative technology to your practice. Note that prices may vary based on the retailer and additional features or services offered.
Frequently Asked Questions
What sizes of syringes are compatible with the YR06185?
The pump is compatible with various sterile syringe brands ranging from 5ml to 60ml.
How long does the battery last once fully charged?
After a full charge, the rechargeable battery can last for more than 12 hours under normal operating conditions at 5ml/h.
Advantages and Disadvantages
This product's main advantages include its user-friendly interface, intelligent syringe recognition, and high infusion accuracy of ±2%. On the downside, some users may find the audible alarms slightly less customizable despite the adjustable buzzer volume.
Product Usage in the Field
In practical veterinary applications, the YR06185 is instrumental for accurate and controlled medication delivery in various animal care scenarios. Its intelligent recognition and adjustable infusion modes make it suitable for diverse clinical requirements.
Recommendations
For optimal use, ensure regular calibration of the pump to maintain its high accuracy. Storing and transporting it under recommended conditions will extend its lifespan. Sign up at Kalstein Plus to request a quote and explore further specifications to meet your clinical needs efficiently.
Features
- Large & colorful LCD display
- Unique syringe intelligent recognition technology
- Dynamically display the pressure
- Double CPU ensuring safe infusion
- Adjustable buzzer volume and anti-bolus function
- Various visual and audible alarms for enhanced safety
- RS232 interface for connectivity
Technical Specifications
| Model | YR06185 |
| Infusion mode | Dose mode, Time mode, Rate mode |
| Applicable syringes | Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml |
| Accuracy | ±2% (after syringe correct calibration) |
| Infusion rate | 5ml syringe: 0.1 -150ml/h 10ml syringe: 0.1 -300ml/h 20ml syringe: 0.1 -600ml/h 30ml syringe: 0.1 -900ml/h 50ml syringe: 0.1 -1500ml/h |
| Volume to be infused (VTBI) | 0～1000 ml |
| Volume Infused (∑) | 0～9999.9 ml |
| KVO rate | 0.1-2 ml/h adjustable; default value: 0.1ml/h |
| Bolus rate | 5ml syringe: 100-150ml/h 10ml syringe: 100-300ml/h 20ml syringe: 100-600ml/h 30ml syringe: 100-900ml/h 50ml syringe: 100 -1500ml/h |
| Alarms | Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe disengaged, No AC power supply, Battery exhausted, Malfunction etc. |
| Power supply | AC: 100~240V, 50/60Hz DC: 12V ±1.2V |
| Power consumption | 25VA |
| Nurse call alarm | Optional |
| Classification | Class I, type CF |
| Dimensions | 300(L)x 130(H)x 125 (W)mm, not including pole clamp |
| Net weight | 1.8KG |
| Waterproof Level | IPX3 |
| Occlusion pressure | (40.0-160.0)kpa |
| 3 adjustable occlusion pressure settings | low, middle and high |
| Battery | Rechargeable Li polymer battery,7.4V, 1900mAh Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃ |
| Battery recharge time | 10h with power on, 3h with power off |
| Operating conditions | Temperature: 5℃~40℃, Relative humidity: 10~95%, Atmosphere pressure: 86～106kPa |
| Transport conditions | Temperature: -20℃~+60℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
| Storage conditions | Temperature: -20℃~+45℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
Technical specifications
| Dimensions | L 40 × W 22 × H 21 cm |
|---|---|
| Weight | 3 kg |
| Manufacturer | Kalstein |
