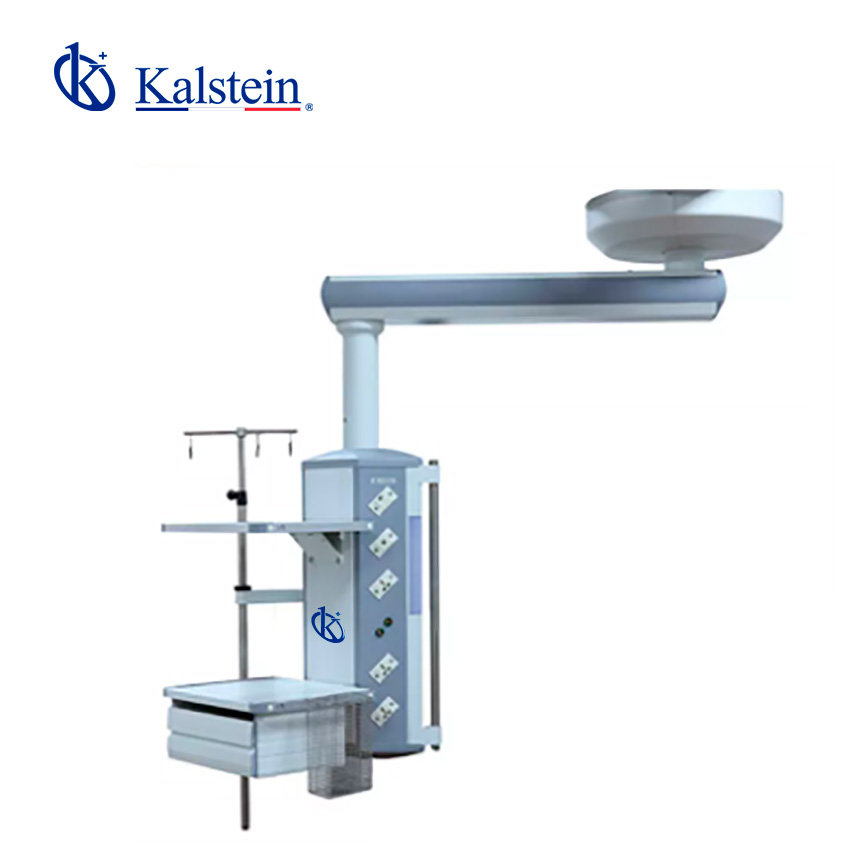

Site Requirements and Installation Conditions for the YR02076 Surgical Pendant
The YR02076 surgical pendant is an essential piece of equipment in various clinical settings, including operating rooms, emergency departments, intensive care units, and recovery rooms. To ensure optimal performance and safety, it is vital to understand the specific installation conditions and environmental requirements necessary for this advanced surgical device.
Technical Specifications of the YR02076 Surgical Pendant
| Specification | Details |
|---|---|
| Model | YR02076 |
| Arm Rotating Radius | 1000 mm |
| Arm Rotating Angle | 340° |
| Braking System | Friction brake |
| Maximum Load Capacity | 160 kg |
| Electrical Socket | 2 earth studs |
| Standard Configuration | |
| 1 Oxygen (O2) | |
| 1 Air | |
| 1 Vacuum Suction (VAC) | |
| 6*10A Power Outlets | |
| 1 Network Socket | |
| 1 Grounding Terminal | |
Understanding Environmental Conditions
The setup for the YR02076 surgical pendant must consider various environmental factors that can affect its operation. Proper temperature, humidity, and ventilation are critical to maintain device performance and longevity.
1. **Temperature Range**: The ideal operating temperature for the YR02076 is between 18°C and 30°C. Extreme temperatures can affect the mechanical systems and electronic components of the pendant.
2. **Humidity Levels**: The relative humidity in the area where the pendant is installed should be between 30% and 70%. Excess moisture can lead to corrosion and malfunction of electrical components.
Installation Considerations
When installing the YR02076, several key steps should be followed to ensure a safe and effective configuration:
1. Ceiling Structure: The pendant must be securely anchored to a ceiling capable of supporting its weight (116 kg) and the load it will bear.
2. Space Requirements: Ensure adequate clearance around the pendant for full arm rotation (340°) and access for medical staff.
3. Power Supply: The pendant requires a stable power supply with two earth sockets. Check that the electrical standards comply with the local regulations (German/British/American/Australian standards).
Planning for Gas and Electrical Supply
The effective operation of the YR02076 depends on correctly configured gas outlets and electrical connections. The user can customize the gas supply according to their needs, with options for oxygen, air, and vacuum suction. The standard configuration includes:
- 1 Oxygen (O2) outlet
- 1 Air outlet
- 1 Vacuum Suction (VAC) outlet
It is crucial to consult with local norms to ensure compliance with medical gas supply standards.
Maintaining Ventilation and Air Quality
Proper ventilation is essential in clinical settings to prevent the accumulation of gases and ensure air quality. During installation, ensure that:
- Airflow is unobstructed around the pendant.
- The pendant does not obstruct any existing ventilation systems.
- Regular maintenance checks for air filters and ventilation systems are scheduled.
Site Preparation Checklist
| Task | Status |
|---|---|
| Verify ceiling strength and structure | |
| Check temperature and humidity levels | |
| Ensure power supply readiness | |
| Confirm gas supply installation | |
| Inspect ventilation systems |
Frequently Asked Questions
What are the environmental conditions required for the YR02076 surgical pendant?
The YR02076 requires a temperature range of 18°C to 30°C, with humidity levels between 30% and 70% to ensure optimal performance.
What is the maximum load capacity of the YR02076 pendant?
The maximum load capacity of the YR02076 surgical pendant is 160 kg, which includes the weight of the pendant itself and any equipment attached to it.
How is the YR02076 surgical pendant powered?
The YR02076 is powered through a standard electrical supply with two earth sockets, complying with local electrical standards.
Can the gas outlets be customized based on specific clinical needs?
Yes, the YR02076 allows for customization of gas outlets, including options for oxygen, air, and vacuum suction based on clinical requirements.
What should be done if the YR02076 experiences operational issues?
In case of operational issues, it is advised to check the installation conditions, ensure all connections are secure, and refer to the troubleshooting guidelines in the user manual.
What safety measures should be taken during installation?
During installation, ensure all equipment is properly secured, verify that the ceiling structure can support the pendant, and comply with local medical gas and electrical standards.
How can I ensure compliance with local installation regulations?
Consult with local authorities or a qualified professional to ensure that the installation of the YR02076 adheres to all relevant medical equipment regulations and standards.
