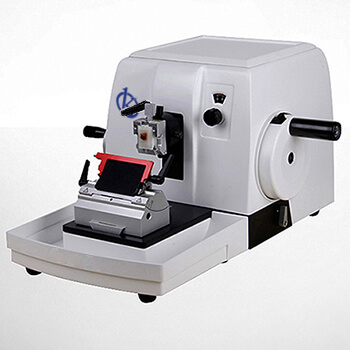

Site Requirements and Environmental Conditions for the YR417 Microtome
The YR417 Microtome is designed to meet the diverse needs of histology and histopathology laboratories. To ensure optimal performance and reliability, understanding the specific environmental conditions and installation requirements is crucial. This article delves into the site prerequisites and the optimal conditions necessary for the YR417 to operate effectively.
Environmental Conditions for the YR417 Microtome
The successful operation of the YR417 Microtome is highly influenced by its surrounding environment. Key factors to consider include temperature, humidity, vibration, and electrical stability.
Temperature Range
The YR417 Microtome should be operated within a temperature range of 18°C to 25°C (64°F to 77°F). Temperatures outside of this range can lead to inaccurate cuts and affect the overall performance of the microtome. Regular monitoring of room temperature is recommended to ensure compliance.
Humidity Levels
Humidity should be maintained between 40% and 60% relative humidity. High humidity levels can lead to moisture accumulation, which might affect the integrity of the samples and the functioning of the microtome. Using a dehumidifier in particularly humid environments can help maintain appropriate levels.
Electrical Supply Stability
The YR417 requires a stable electrical supply to function optimally. It is recommended to use power stabilizers or UPS systems to protect against power surges and outages. The electrical specifications for the YR417 are as follows:
| Parameter | Specification |
|---|---|
| Voltage | 110-240V |
| Frequency | 50/60 Hz |
Installation and Setup Requirements
Proper installation of the YR417 Microtome is vital for achieving its full potential. Below are the steps and considerations for the installation process.
Unboxing Checklist
- Verify that all components are present as per the manual.
- Inspect for any visible damage.
- Ensure that all tools required for installation are available.
Anchoring and Leveling
The microtome should be installed on a stable, flat surface to prevent vibrations that could affect cutting precision. Anchoring the unit may be necessary in environments subject to movement or vibration. Use spirit levels to ensure that the microtome is perfectly leveled.
Technical Data for YR417 Microtome
| Specification | Details |
|---|---|
| Model | YR417 |
| Cutting Thickness Adjustment Range | 0-60 μm |
| Minimum Cutting Thickness Setting | 1 μm |
| Maximum Sample Size | 70×70mm |
| Cutting Thickness Options | 15μm and 35μm |
| Sample Retraction | 60 μm (optional) |
| Total Horizontal Sample Feed | 28 mm |
| Vertical Sample Stroke | 70 mm |
| Blade Holder Base Movement Range | 0-60 mm (forward and backward) |
| Blade Press Plate Movement Range | 0-23 mm |
| Sample Holder Rotation | Any angle within 360 degrees |
| Sample Orientation | XY-8° |
| Precision Error | ±1% |
| Dimensions | 590×500×330 mm (Width×Depth×Height) |
| Net Weight | 37kg |
Site Preparation Checklist
Before installation, ensure that the site meets the following criteria:
| Requirement | Details |
|---|---|
| Space Clearance | Provide adequate space around the unit for maintenance and operation. |
| Vibration Isolation | Use anti-vibration pads if the unit is installed near heavy machinery. |
| Proper Ventilation | Ensure good airflow to prevent overheating. |
| Drainage Accessibility | Ensure easy access to drainage systems for waste management. |
Frequently Asked Questions
What are the temperature and humidity requirements for operating the YR417 Microtome?
The YR417 Microtome should operate in a temperature range of 18°C to 25°C and humidity levels between 40% and 60% to ensure its optimal performance.
How can I ensure stable electrical supply for the YR417 Microtome?
Using power stabilizers or Uninterruptible Power Supply (UPS) systems can help maintain a stable electrical supply, protecting the microtome from power surges and outages.
What factors should I consider for the site preparation of the YR417 Microtome?
Key factors include space clearance for operation, vibration isolation, proper ventilation, and drainage accessibility.
What is the recommended method for leveling the YR417 Microtome?
Use spirit levels to ensure the microtome is perfectly leveled on a stable flat surface to prevent inaccuracies in cutting.
How do I maintain the environmental conditions for the YR417 Microtome?
Regular monitoring of temperature and humidity levels is essential. Use air conditioners, heaters, or dehumidifiers as needed to maintain optimal conditions.
What steps should I take during the unboxing of the YR417 Microtome?
Verify all components are present, inspect for visible damages, and ensure that necessary tools for installation are available during unboxing.
