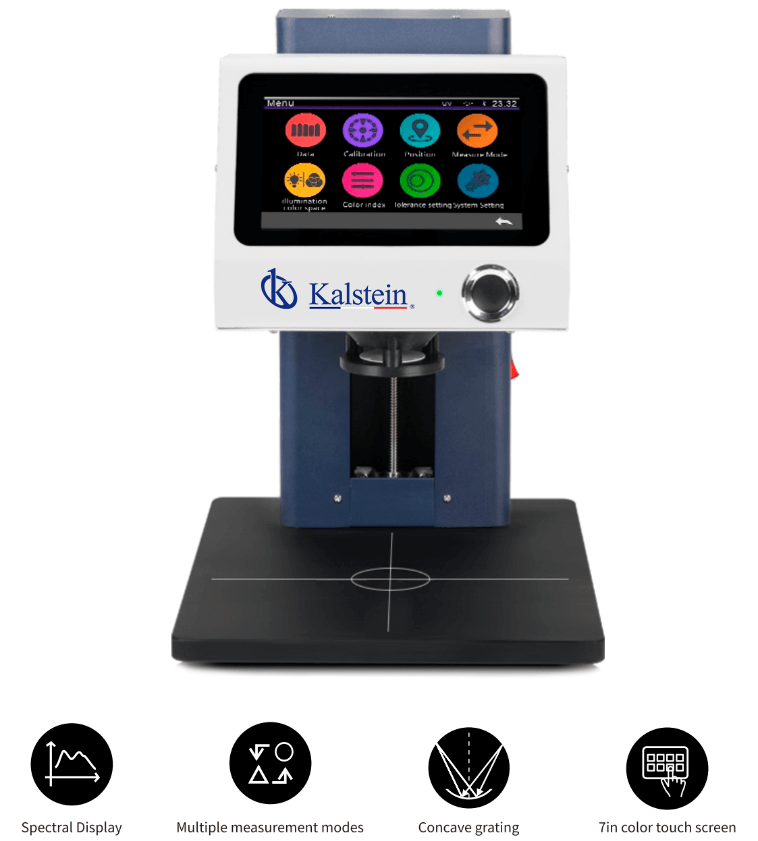

Technical Glossary and Key Terminology for the YR05481 Contactless Desktop Spectrophotometer
The YR05481 Contactless Desktop Spectrophotometer is an advanced color measurement solution that utilizes D/8 optical standards for accurate color analysis without contact. This article serves as a technical glossary, defining key terms and terminologies essential for understanding the capabilities and functionalities of the YR05481. Mastering this glossary will enhance your operation and maintenance of the device in various applications.
Understanding the YR05481 Spectrophotometer
The YR05481 is designed for precise measurement of color in powder and unconventional materials, making it a valuable asset in industrial and research settings. Its high-fidelity results are achieved through a full-spectrum LED light source and a high-precision CMOS image sensor. The 7-inch touchscreen interface enhances user experience by providing real-time data visualization, crucial for quality control in automated production lines and laboratories.
Technical Specifications Overview
| Model | YR05481 |
|---|---|
| Optical Geometry | D/8 (diffuse illumination, 8° reception direction) |
| Light Source | Full-spectrum LED |
| Measurement Range | 400-700 nm |
| Reflectance Range | 0-200% |
| Measurement Distance | 3.0 mm (+0.2 mm) |
| Data Storage Capacity | Up to 48,000 measurements |
| Weight | Approximately 10 kg |
| Operating Environment | 0~40°C, 0-85% RH (non-condensing) |
Key Terminology
Below is a glossary of essential terms associated with the YR05481, elaborated to enhance your understanding of the spectrophotometer’s features and functions:
| Term | Definition |
|---|---|
| D/8 Geometry | A measurement geometry where light is diffused and collected at an 8-degree angle, ensuring accurate color measurement. |
| CMOS Sensor | A high-precision image sensor that captures light data to provide reliable measurements. |
| Reflectance | The proportion of light that a surface reflects, expressed as a percentage. |
| Measurement Distance | The space between the instrument and the sample being measured, crucial for accuracy. |
| Colorimetric Indices | Quantitative measures used to assess and compare color properties, including WI, YI, and MI. |
| Color Space | A specific organization of colors that helps in understanding and defining color measurement standards. |
| Calibration | The process of adjusting the spectrophotometer to ensure accurate readings against known standards. |
| Data Visualization | The graphical representation of measurement data for easier analysis and reporting. |
| Error Codes | Specific alphanumeric codes appearing on the device to indicate issues or errors during operation. |
| Sample Mode | A measurement mode focused on obtaining specific sample data for analysis. |
| Quality Control | The systematic processes in place to ensure that products meet predefined quality standards. |
| Operating Environment | The conditions (temperature, humidity, etc.) under which the spectrophotometer functions optimally. |
| Touchscreen Interface | A user-friendly interface that allows for intuitive navigation and operation of the device. |
| LED Light Source | A full-spectrum light source providing consistent illumination for accurate measurements. |
| Measurement Reliability | A measure of how consistently the spectrophotometer produces accurate readings over time. |
| Fields of Application | The various industries and scenarios where the YR05481 can be effectively utilized, such as cosmetics, food, and ceramics. |
Frequently Asked Questions
What is the purpose of the YR05481 Contactless Desktop Spectrophotometer?
The YR05481 is designed for precise color measurement in various applications, allowing for accurate analysis of powders and unconventional materials without contact, thereby ensuring the integrity of the sample.
How does the D/8 optical geometry benefit measurements?
The D/8 optical geometry provides diffuse illumination and measures light at an 8-degree angle, which minimizes the effects of surface texture and provides more accurate color readings.
What types of samples can be measured with the YR05481?
The YR05481 can measure a variety of samples, including powders and surfaces that are irregular or in motion, making it ideal for industries such as cosmetics, food, and ceramics.
How often should the YR05481 be calibrated?
Regular calibration is recommended to maintain accuracy; it is typically advised to calibrate the instrument before initial use and periodically based on operational demands or after significant changes in environmental conditions.
What storage capacity does the YR05481 offer for measurements?
The YR05481 has a data storage capacity that allows for up to 48,000 measurements, combining sampling modes and continuous statistical data, which is essential for extensive testing environments.
Can the YR05481 be used in automated production lines?
Yes, the YR05481 is designed for seamless integration into automated production lines, providing accurate and reliable color measurements essential for quality control processes.
Where can I request a quote for the YR05481?
You can request a personalized quote for the YR05481 through our dedicated channels, ensuring you receive the best pricing tailored to your needs.
