Technical Glossary and Key Terminology of the YR0254 Trinocular Microscope
The YR0254 Trinocular Microscope is an advanced piece of laboratory equipment that plays a crucial role in various scientific applications. Understanding the technical terminology associated with this microscope enhances its usage and operational efficiency. This guide provides a comprehensive glossary of key terms related to the YR0254, along with detailed explanations of their relevance.
Understanding the YR0254 Trinocular Microscope

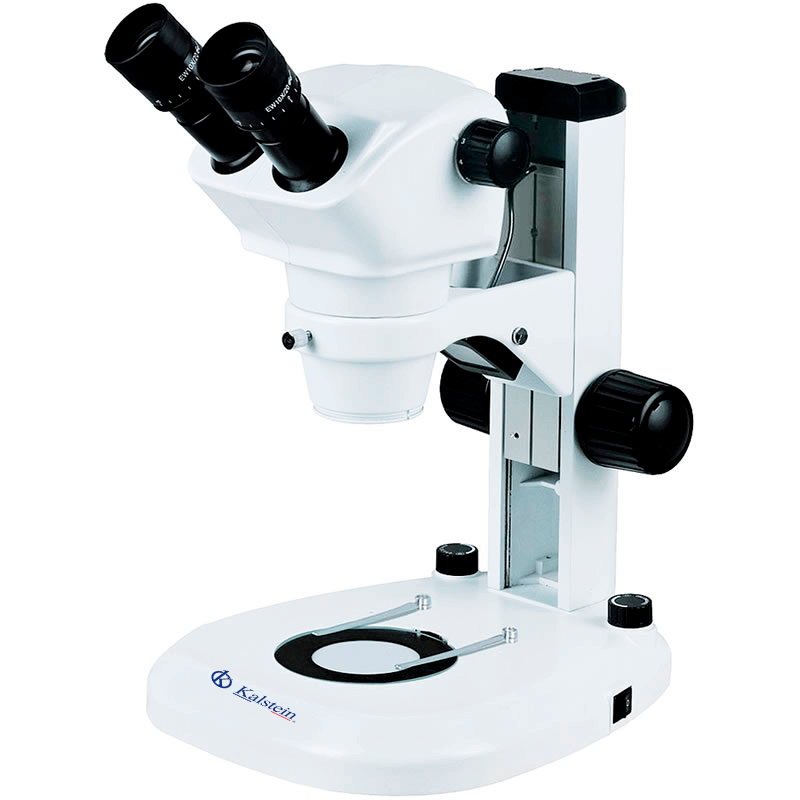

The YR0254 model is a Zoom Stereo Microscope designed for low magnification observations. This innovative instrument utilizes two separate optical paths to produce a three-dimensional view of the sample. Its primary applications include dissection, micro-surgery, entomology, and other close work that requires detailed observation.
Technical Specifications of the YR0254
| Specification | Description |
|---|---|
| Model | YR0254 |
| Head | Trinocular, inclined at 45°, interpupillary distance 55~75 mm |
| Eyepiece | Extra wide field EW10x/22 mm, high eyepoint, adjustable diopter |
| Objective Magnification | 0.8x~5x |
| Zoom Ratio | 01:06.3 |
| Working Distance | 115 mm |
| Stand | Rail stand with glass plate Dia. 125 mm |
| Illumination | LED light above and below, adjustable brightness |
| Power | Wide voltage range of 100 ~ 240 V |
| Optional Accessories | Various eyepieces, auxiliary lenses, and adapters available |
Key Terms Glossary
| Term | Definition |
|---|---|
| Trinocular | A microscope head designed to accommodate both binocular eyepieces and a third camera port for photomicrography. |
| Zoom Ratio | A measurement of the range of magnification that a zoom microscope can provide, indicating the flexibility in viewing specimens. |
| Interpupillary Distance | The distance between the centers of the ocular lenses, adjustable to accommodate different users. |
| Working Distance | The distance from the objective lens to the specimen being observed, crucial for ensuring that the microscope can accommodate various sample sizes. |
| Illumination | The method by which light is supplied to the specimen; can be transmitted or reflected, as in the case of the YR0254. |
| Magnification | The process of enlarging the appearance of a specimen, allowing for detailed observation of small structures. |
| Eyepiece | The lens system through which the user views the magnified image, often adjustable for individual eyesight. |
| Auxiliary Lens | Additional lenses that further modify the microscope's magnification range or working distance. |
| LED Illumination | Light-emitting diode lighting that offers longevity and efficiency for specimen viewing. |
| Field of View | The observable area visible through the microscope at any given time, which can be adjusted by changing eyepieces or objectives. |
Frequently Asked Questions
What are the main features of the YR0254 Trinocular Microscope?
The YR0254 Trinocular Microscope features a trinocular head design, adjustable interpupillary distance, high-quality optical components for clear imaging, LED illumination, and a wide magnification range of 0.8x to 5x.
How does the YR0254 differ from other microscopes?
The YR0254 is specifically designed for low magnification, allowing for three-dimensional observations, making it ideal for dissection and similar applications compared to compound microscopes which provide higher magnification for more detailed cellular studies.
What applications is the YR0254 best suited for?
The YR0254 is best suited for applications in entomology, micro-surgery, dissection, and educational settings where detailed surface observations are necessary without the need for high magnification.
What optional accessories can enhance the YR0254’s functionality?
Optional accessories for the YR0254 include various eyepieces with different magnifications, auxiliary lenses to extend the working range, and adapters for integrating cameras for photomicrography.
How can I maintain the YR0254 Trinocular Microscope?
Regular maintenance includes cleaning the optical components with lens cleaner, ensuring the LED lights are functioning, and periodically checking the mechanical parts for wear or misalignment to ensure optimal performance.
What troubleshooting steps should I take if the YR0254 does not power on?
If the YR0254 does not power on, check the power connection, verify that the voltage settings match your power supply, and inspect for any blown fuses or damaged components in the power supply unit.
Where can I request a quote for the YR0254 Trinocular Microscope?
You can request a quote for the YR0254 Trinocular Microscope by contacting our sales representatives or visiting our product catalog for competitive pricing and special offers.
