Technical Guide to the YR02147 Electrosurgical Generator: Specifications, Accessories, and Compatible Consumables
The YR02147 Electrosurgical Generator is a versatile and reliable instrument designed for precise electro-surgical procedures. This article provides a deep dive into its specifications, compatible accessories, and consumables, ensuring users can maximize its potential in various clinical settings.

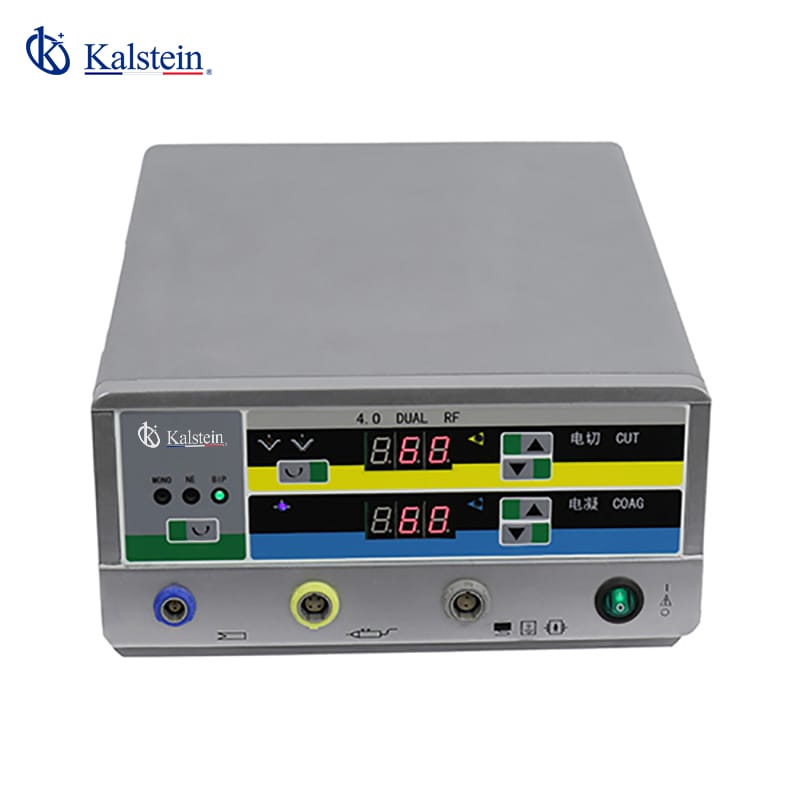

Overview of the YR02147 Electrosurgical Generator
The YR02147 model is engineered for electro-surgical procedures, particularly in gynecological applications such as Loop Electrosurgical Excision Procedure (LEEP). With an isolated output of up to 150 watts and advanced automatic control functions, it is designed to perform high-precision cuts and coagulations while minimizing thermal damage.
Technical Specifications of the YR02147
| Model | YR02147 |
|---|---|
| Main Unit | Electrosurgical Generator |
| Base Output Frequency | 512 KHz |
| Cut Power Pure/Mixed | 0 ~ 150 W |
| Pure Waveform Type | Continuous sinusoidal wave, max open voltage 1700 V |
| Mix Waveform Cut 1 | 68% duty cycle sinusoidal waveform, max open voltage 1700 V |
| Mix Waveform Cut 2 | 56% duty cycle sinusoidal waveform, max open voltage 1600 V |
| Mix Waveform Cut 3 | 32% duty cycle sinusoidal waveform, max open voltage 2000 V |
| Coagulation Power | 0 ~ 100 W |
| Soft Coagulation Power | 16% duty cycle, max open voltage 3300 V |
| Spot Coagulation Waveform | 16% duty cycle, max open voltage 4600 V |
| Power Supply | 220 V / 50 Hz, rated current 3.15 A |
| Leakage Current | <150 Ma |
| Safety Standard | EN 60601-1 and 60601-2-2 |
| Smoke Extractor | Optional |
| Volume | 30 ~ 100L / min, 8 adjustable grades |
| Internal Filter Efficiency | > 99.999% |
| External Filter Efficiency | > 99.97% with charcoal filter for odor removal |
| Start Mode | With control or optional pedal |
| Power Supply | 220 V / 50 Hz, rated current 3.15 A |
Compatible Accessories and Consumables for YR02147
To maintain the optimal performance of the YR02147, using compatible accessories and consumables is essential. Below is a list detailing the recommended items:
- Electrodes: Various types compatible with YR02147, such as standard cutting and coagulation electrodes.
- Filters: Internal and external filters for smoke extraction.
- Probes: Surgical probes designed for specific procedures.
- Replacement Parts: Components requiring periodic replacement to maintain functionality.
- Cleaning Supplies: Recommended cleaning agents for maintaining the generator and accessories.
Installation and Setup for the YR02147
Proper installation and setup of the YR02147 Electrosurgical Generator is critical for ensuring its operational efficiency. Here’s a guide for getting started:
- Unboxing: Check the contents against the packing list to ensure all components are included.
- Placement: Ensure the unit is placed on a stable surface away from direct sunlight and humidity.
- Power Connection: Connect the generator to a compatible power source as per specifications.
- Calibration: Conduct a calibration check before first use to ensure accurate performance.
Troubleshooting Common Issues with YR02147
Even the best equipment may encounter issues. Here are common problems, their potential causes, and solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Equipment does not power on | Power source issue | Check power cable and connections. |
| Error Code E-03 | Electrode malfunction | Replace the electrode and restart the unit. |
| Inconsistent readings | Calibration error | Recalibrate the device following the manual instructions. |
Frequently Asked Questions
What types of procedures can the YR02147 be used for?
The YR02147 is suitable for various electro-surgical procedures, including gynecological surgeries, plastic surgeries, and ENT surgeries.
How do I maintain the YR02147 Electrosurgical Generator?
Regular maintenance includes cleaning, inspection of accessories, and timely replacement of consumables to ensure efficient operation.
What accessories are essential for the YR02147?
Essential accessories include compatible electrodes, filters for smoke extraction, and surgical probes tailored for specific procedures.
What should I do if I encounter error codes?
Refer to the troubleshooting guide in the user manual to identify the error code and follow the recommended solutions.
Is there a warranty for the YR02147 Electrosurgical Generator?
Yes, the YR02147 comes with a manufacturer's warranty covering parts and service for a specified period. Details are available in the product documentation.
How can I request a quote for the YR02147?
You can request a quote through our sales channels, where our team will assist you with pricing and purchasing options.
