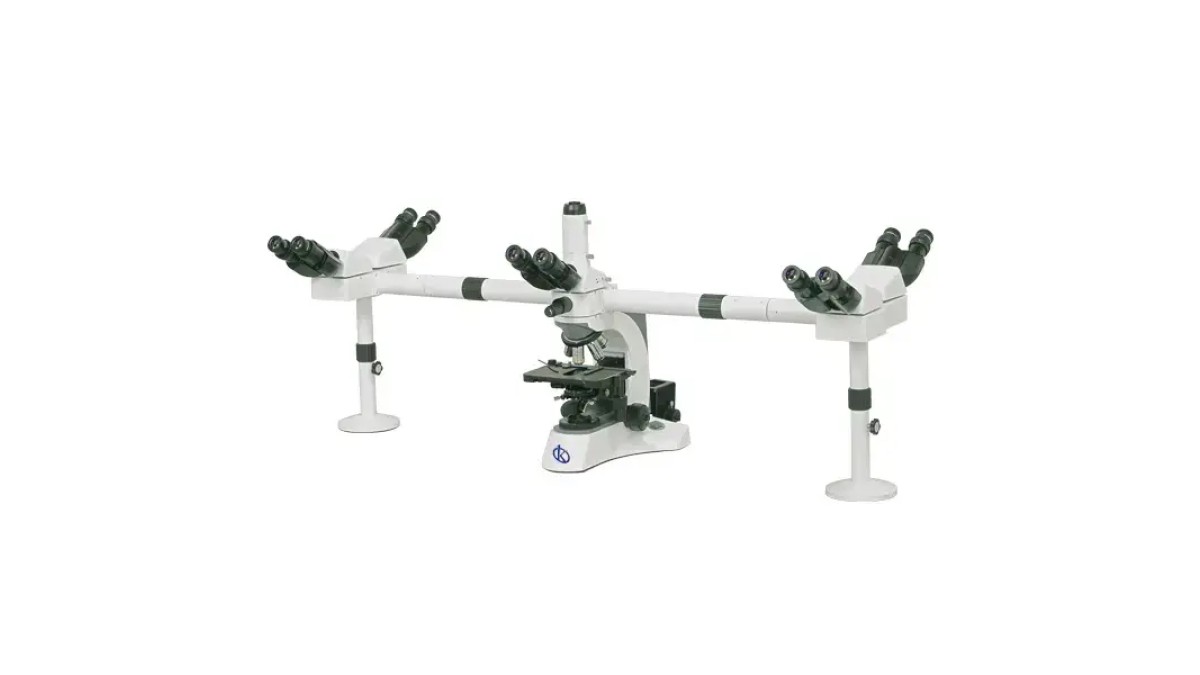

Technical Performance and Safety of the Binocular Microscope YR0232
The YR0232 binocular microscope stands out in the realm of laboratory equipment, particularly due to its modular multi-viewing system that provides exceptional image quality for every user. This advanced optical system allows multiple observers to view the same sample simultaneously, simulating a true microscopy working experience. With its precision-coated glass optics and innovative design, the YR0232 is ideal for clinical settings, scientific research, and educational demonstrations.
Product Description
The YR0232 model features a robust infinite optical system that enhances clarity and detail. The microscope is equipped with a trinocular head that is inclined at 30 degrees, allowing for comfortable viewing angles. Its 360-degree rotatable head accommodates multiple users, making it a practical choice for collaborative work environments.
One of the key features of the YR0232 is its wide-field eyepiece (EW10x/20), which provides a larger viewing area, enhancing the observational experience. The microscope also includes a quintuple reversed revolving nosepiece and a range of high-quality achromatic infinity objectives (4x, 10x, 40x, 100x) to facilitate diverse examinations.
This microscope is designed with a dual-layer mechanical stage, providing a spacious platform for specimen manipulation. The Kohler illumination system, using a 24V/100W halogen lamp, ensures optimal lighting conditions, while the LED pointer with adjustable brightness allows for precise highlighting of specimens.
Technical Specifications
| Specification | Details |
|---|---|
| Model | YR0232 |
| Optical System | Infinite Optical System |
| Viewing Head | Trinocular Head, 30° incline, 360° rotatable, interpupillary distance 48-75mm |
| Eyepiece | Wide-Field Eyepiece EW10x/20 |
| Nosepiece | Quintuple Reversed Revolving |
| Objectives | Achromatic Infinity Objectives: 4x, 10x, 40x, 100x |
| Condenser | Rotary NA0.9/0.25 |
| Focus | Coaxial fine and coarse focus adjustment, fine division 0.001mm |
| Stage | Double-layer mechanical stage 185x142mm, mobile range 75x55mm |
| Lighting System | Kohler Illumination, 24V/100W Halogen Lamp |
| LED Pointer | Adjustable brightness green LED pointer |
Market Price
The YR0232 binocular microscope is competitively priced at approximately $4509.00. Given its advanced features and superior optical performance, it represents a worthwhile investment for laboratories, educational institutions, and research facilities. Its versatility, combined with the ability to support multiple users, enhances its value in various applications.
Frequently Asked Questions
What is the optical system of the YR0232 microscope?
The YR0232 features an infinite optical system, which provides superior image clarity and detail, making it suitable for a variety of applications in clinical and educational settings.
How many users can observe through the YR0232 microscope at the same time?
The YR0232 is designed to accommodate multiple observers simultaneously, offering configurations for 2, 3, 4, 5, and even custom options for up to 20 viewing stations.
What types of objectives are included with the YR0232?
The microscope includes achromatic infinity objectives of various magnifications: 4x, 10x, 40x, and 100x.
What lighting system does the YR0232 utilize?
The YR0232 uses a Kohler illumination system powered by a 24V/100W halogen lamp, ensuring optimal lighting for specimen examination.
Is the YR0232 suitable for educational purposes?
Yes, the YR0232 is widely utilized in educational settings due to its ability to support multiple users, making it perfect for teaching environments where collaboration is key.
What is the weight of the YR0232 microscope?
The YR0232 microscope has a gross weight of approximately 30 kg, indicating a sturdy construction that supports its advanced functionality.
Pros and Cons
Pros
- Exceptional image quality with infinite optical system.
- Supports multiple users simultaneously for collaborative work.
- Wide field eyepiece enhances viewing area.
- Built-in LED pointer with adjustable brightness for precise focusing.
- Sturdy and durable construction, suitable for various environments.
Cons
- Higher price point compared to standard models.
- Requires careful handling due to its precision optics.
- Heavy weight may limit portability.
Field Usage
The YR0232 microscope is extensively used in various fields including clinical diagnostics, scientific research, and educational institutions. In clinical settings, its ability to provide simultaneous viewing enhances collaborative diagnosis and learning. Researchers benefit from its high-quality optics, allowing for detailed specimen analysis. In educational environments, it promotes interactive learning experiences, enabling students to engage directly with specimens alongside their peers.
Recommendations
For laboratories looking to enhance their observational capacity, the YR0232 binocular microscope is highly recommended. Its advanced features cater to both educational and professional needs. Consider requesting a quote to explore how the YR0232 can fit into your scientific workflow.
