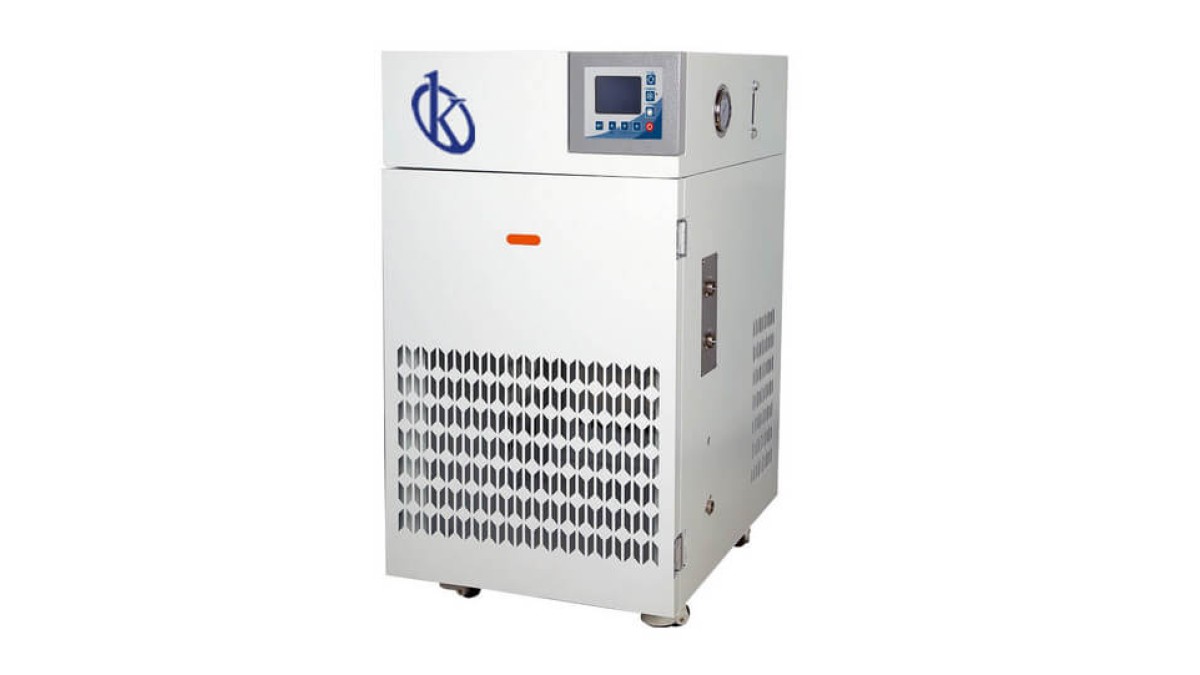

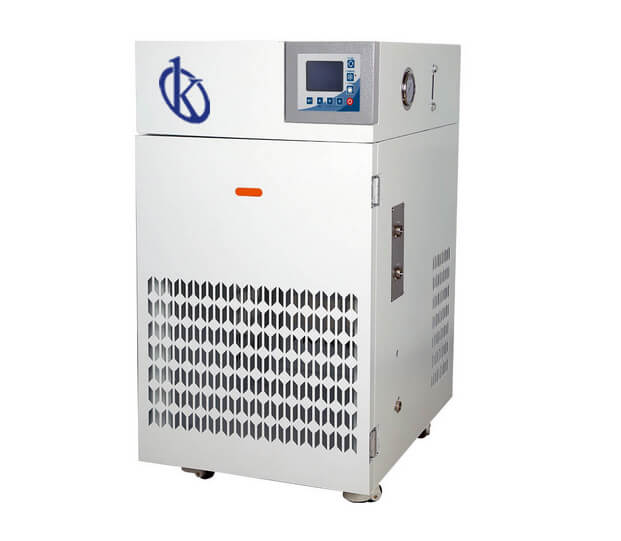

Technical Performance and Safety of the YR05004 Cooling and Heating Circulator Pump
The YR05004 Cooling and Heating Circulator Pump is engineered to meet the demands of chemical reactors, offering unparalleled performance and safety. This article delves into the technical specifications, market prices, frequently asked questions, pros and cons, field usage, and recommendations regarding this advanced pump model.
Product Description
The YR series circulator pump, specifically model YR05004, is one of the most widely used pumps for chemical reactors. It integrates a cooling system, heating system, and pre-cooling system that can operate continuously or independently. This versatility makes it suitable for a variety of laboratory and industrial applications.
Features
- Contains a cooling system, heating system, and pre-cooling system that can be used continuously or separately.
- Fast heating and cooling capabilities with continuous adjustment of temperature.
- Wide temperature control range without the need to change the heat transfer medium throughout the process, ensuring low consumption of the heat transfer medium.
- Complete closed circulation system that prevents the heat transfer fluid from volatilizing or oxidizing at high temperatures and avoids moisture absorption at low temperatures, prolonging the fluid's lifespan.
- High-temperature cooling function that can quickly reduce temperatures from high levels.
- The cooling heat exchanger features complete brazing, ensuring a compact design and high efficiency heat exchange.
Technical Specifications
| Model | For Glass Reactor | Circulation Type | Temperature Resolution | Cooling Power | Heating Power | Flow Rate | Control Method | Safety Measures | Type of Pump | Total Power | Voltage | Dimensions | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| YR05004 | 30 – 50L | -35-200 °C closed circulation | 0.1°C | 10280-2560W | 6000W | 35 l/min | Microcomputer digital control | Delay, leakage, overcurrent, overheating protection | Leak-free closed special pump | 9000 | 380V / 50Hz | 630 x 550 x 1060 | 165 |
Market Price
The YR05004 Cooling and Heating Circulator Pump is competitively priced at $3360.00. This price reflects the advanced technology and features offered by this model, making it a valuable investment for laboratories and industrial settings requiring reliable temperature control.
Frequently Asked Questions
What is the temperature range of the YR05004 Cooling and Heating Circulator Pump?
The YR05004 circulator pump operates within a temperature range of -35°C to 200°C, allowing for versatile applications in various laboratory processes.
What safety features does the YR05004 include?
This model is equipped with multiple safety measures, including delay functions, leakage detection, overcurrent protection, and overheating protection to ensure safe operation.
How does the YR05004 compare to other models in the YR series?
The YR05004 model is designed for larger glass reactors (30-50L) and has higher power ratings compared to the YR05001, YR05002, and YR05003 models, making it suitable for more demanding applications.
What is the control method for the YR05004?
The pump is controlled by a microcomputer digital control system, which allows for precise temperature adjustments and improved operational efficiency.
Can I use the YR05004 for both heating and cooling?
Yes, the YR05004 circulator pump is designed to provide both heating and cooling functions, making it ideal for applications that require temperature fluctuations.
What are the dimensions and weight of the YR05004?
The dimensions of the YR05004 are 630 x 550 x 1060 mm, and it weighs 165 kg, making it a robust option for laboratory settings.
How can I request a quote for the YR05004?
You can easily request a quote for the YR05004 Cooling and Heating Circulator Pump through our online channels or customer service.
Pros and Cons
Pros
- Versatile operation with both heating and cooling functions.
- Wide temperature control range.
- Advanced safety features to ensure safe usage.
- High efficiency with low heat transfer medium consumption.
- Compact design with efficient heat exchanger.
Cons
- Higher initial investment compared to simpler models.
- Heavier weight may require special handling.
Field Usage
The YR05004 Cooling and Heating Circulator Pump is primarily used in chemical laboratories for processes that demand precise temperature control. It is ideal for use in glass reactors within the pharmaceutical, biotechnology, and chemical industries. The pump's ability to handle both heating and cooling processes makes it invaluable for experiments requiring rapid temperature changes and stability.
Recommendations
When utilizing the YR05004 circulator pump, it is essential to adhere to the manufacturer's guidelines for installation and operation. Regular maintenance checks should be performed to ensure optimal performance and longevity. For organizations looking for reliable temperature control in chemical processes, investing in the YR05004 is a sound decision due to its advanced features and safety mechanisms.
