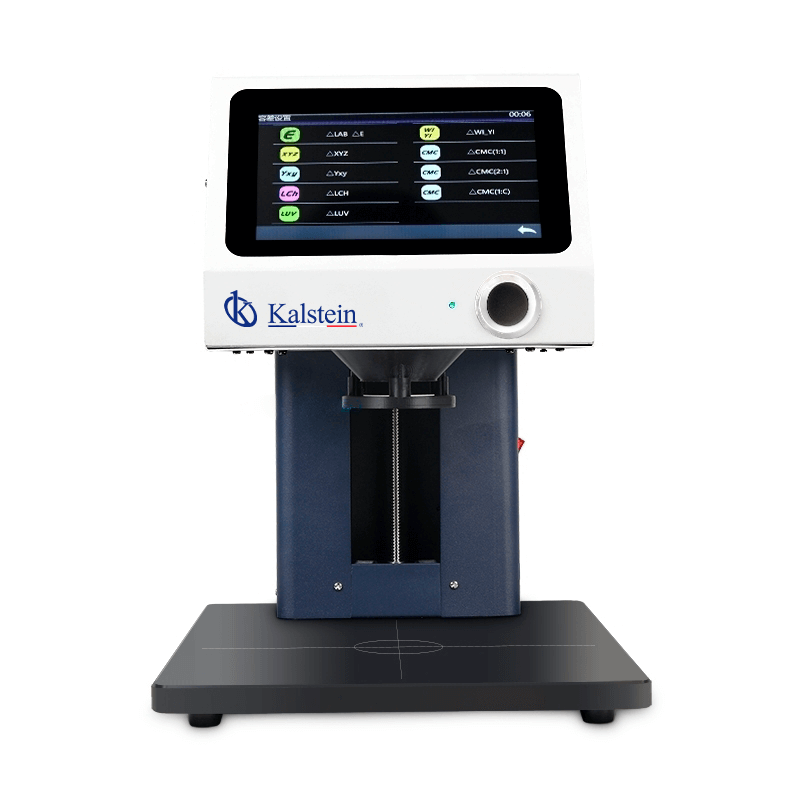

Troubleshooting Common Errors with the YR05482 Non-Contact Table Spectrophotometer
The YR05482 Non-Contact Table Spectrophotometer is a sophisticated instrument designed for precise color measurement without direct contact with the sample. While the device is engineered for reliability, users may encounter various issues that can hinder performance. This guide focuses on common errors and provides troubleshooting solutions tailored specifically for the YR05482 model.
Understanding the YR05482 Spectrophotometer
The YR05482 employs a 45/0 optical geometry to obtain accurate measurements of color properties in various sample types, including liquids, powders, and pastes. Key features include a non-contact measurement capability to prevent sample contamination, a touch screen interface, and a wide measurement wavelength range from 400 to 700 nm. Despite its advanced design, understanding potential error sources is essential for optimal performance.
Common Symptoms and Their Solutions
When using the YR05482, operators may notice several symptoms indicating potential errors or malfunctions. Below, we categorize common issues and provide diagnostic steps along with effective solutions.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Equipment does not power on | Power supply issue | Check the power cable and connections. Ensure the power outlet works. |
| Error code E-03 | Calibration error | Recalibrate the device according to the user manual. |
| Inconsistent readings | Sample height not detected | Adjust the sample height manually or check the automatic height adjustment setting. |
| Data display error | Software glitch | Restart the device and ensure the software is up-to-date. |
| Low accuracy in measurements | Contamination on the sensor | Clean the sensor with a soft cloth; perform a test measurement. |
Technical Specifications of YR05482
| Specification | Details |
|---|---|
| Model | YR05482 |
| Illumination System | 45/0 method with ring illumination |
| Measurement Range | 400~700 nm, 10 nm intervals |
| Light Source | Full-spectrum LED, UV light |
| Measurement Modes | Sample, Quality Control, Continuous Statistical |
| Data Storage | 40,000 samples in sample + QC mode, 10,000 in continuous mode |
| Display | 7-inch capacitive TFT touchscreen |
Frequently Asked Questions
What should I do if the YR05482 does not turn on?
If the device does not power on, first check the power source and ensure the power cable is securely connected. Try using a different outlet to rule out issues with the power supply.
How do I recalibrate the YR05482 if I encounter error code E-03?
This error typically indicates a calibration issue. Follow the calibration procedure outlined in the user manual. Ensure that you are using the correct calibration standards during this process.
Why are my readings from the YR05482 inconsistent?
Inconsistent readings may occur if the sample height is not correctly detected. Adjust the sample placement manually or utilize the automatic height adjustment feature.
How can I resolve data display errors on the YR05482?
To address data display errors, restart the unit and check for any pending software updates. Keeping the software up-to-date can prevent many operational issues.
What steps should I take if I experience low measurement accuracy?
Low accuracy may indicate that the sensor is dirty or contaminated. Clean the sensor using a soft, lint-free cloth and conduct a test measurement to determine if performance has improved.
Can I replace parts of the YR05482 on my own?
It is recommended to consult with technical support for any component replacement to ensure that the device remains under warranty and operates correctly. Unauthorized repairs may void the warranty.
Where can I find further assistance with the YR05482?
For further assistance, you can contact technical support or refer to the user manual for detailed troubleshooting guides and FAQs specific to the YR05482.
