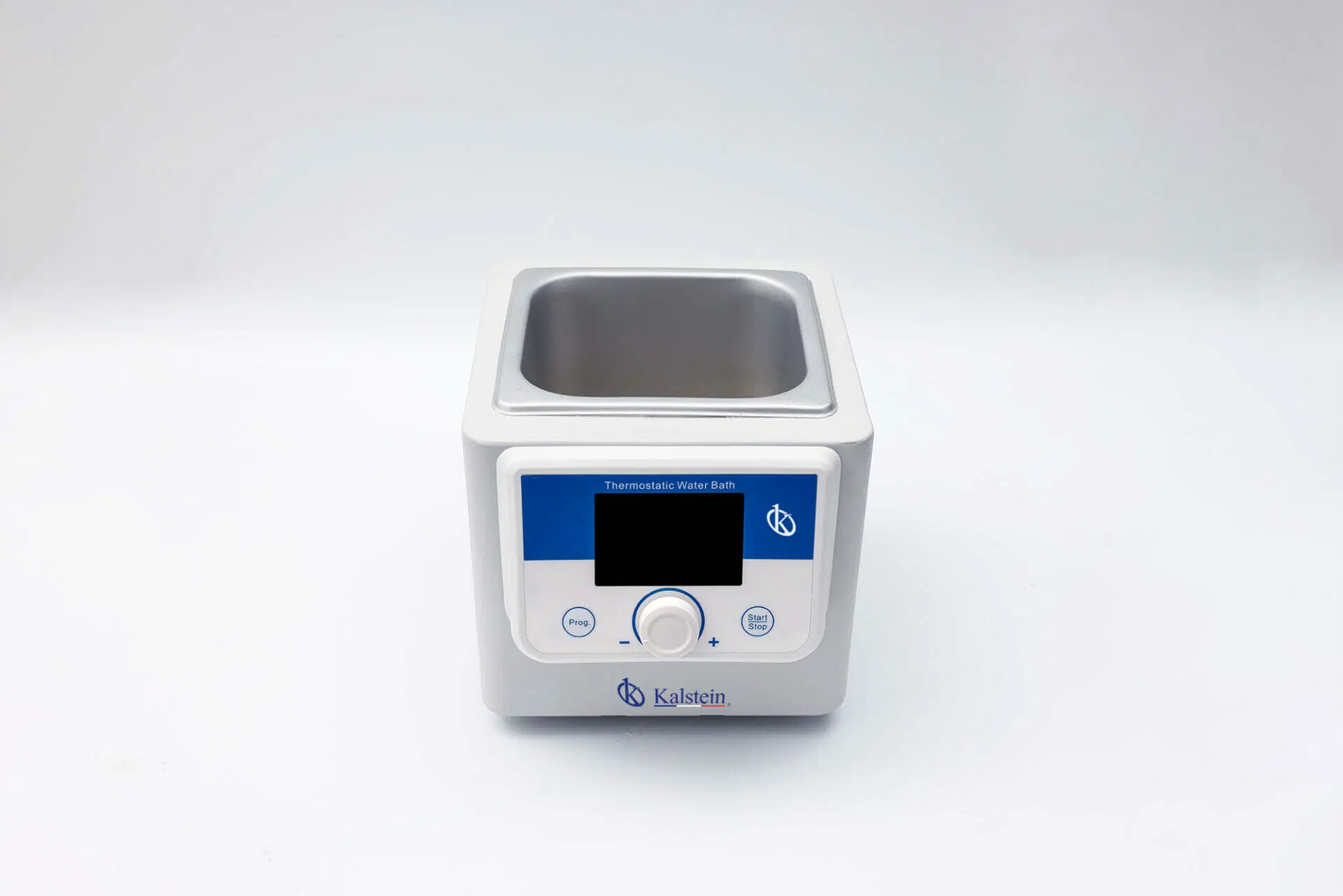

Understanding the Operational Principles and Scientific Foundations of the YR05905 Water Bath Incubator
The YR05905 Water Bath Incubator serves as a crucial piece of equipment in laboratories across various fields, including pharmaceutical, biochemical, and environmental research. With its precise control mechanisms and robust construction, understanding its operational principles can enhance its effectiveness in experimental applications.
Operational Principles of the YR05905 Water Bath Incubator
The YR05905 Water Bath Incubator operates primarily on the principle of thermoregulation, utilizing a PID (Proportional, Integral, Derivative) control system to maintain a stable temperature. This system allows the incubator to adjust the heating element's output based on the current temperature reading, ensuring minimal fluctuation and high precision.
When the incubator is powered on, the PID controller continuously monitors the actual temperature of the water bath against the desired setpoint. If the actual temperature falls below the setpoint, the controller activates the heating element until the correct temperature is reached. Conversely, if the temperature exceeds the desired level, the PID controller reduces the heating output accordingly. This feedback loop is essential for maintaining a consistent environment for sensitive biochemical reactions and sample incubations.
Scientific Foundations Behind the Design Choices
The design of the YR05905 Water Bath Incubator incorporates several critical features that enhance its usability and reliability. The high-quality stainless steel tank, coated with Teflon, not only resists corrosion but also provides excellent heat conduction properties, enabling uniform temperature distribution throughout the water bath.
Furthermore, the large heating plate fixed beneath the tank bottom ensures high uniformity, which is essential for experiments requiring even surface temperatures. This design choice minimizes temperature gradients that can lead to inconsistent results in experiments.
Technical Specifications of the YR05905
| Model | Voltage | Temperature Control Range | Timer | Temperature Accuracy | Uniformity | Capacity | Power | Drain Method | Liquid Level Alarm |
|---|---|---|---|---|---|---|---|---|---|
| YR05905 | AC100~120V/AC200~240V 50~60Hz | RT +5~100℃ | 1m~99h59m | ±0.3℃ | ±0.3℃ (37℃) | 2L x 3 | 750W | Drainage Pump | Yes |
Applications and Use Cases of the YR05905
In laboratories, the YR05905 Water Bath Incubator is utilized for a variety of applications. Its ability to maintain precise temperature control makes it suitable for culturing microorganisms, performing enzyme reactions, and incubating biological samples. The incubator's design allows for the effective homogenization of samples, which is vital in clinical and biochemical research.
Moreover, its multiple pre-stored programs facilitate quick operation, making it an ideal choice for laboratories with high throughput demands. Researchers benefit from the user-friendly large TFT display, enhancing operational efficiency and reducing the risk of errors during setup.
Common Issues and Troubleshooting the YR05905
While the YR05905 is designed for reliability, users may encounter common issues such as inconsistent temperature readings or failure to power on. Understanding potential causes and solutions to these symptoms can significantly improve laboratory efficiency.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Equipment does not power on | Power supply issue | Check the power source and connections. |
| Error code E-03 | Temperature sensor malfunction | Inspect and replace the temperature sensor if faulty. |
| Inconsistent temperature readings | Improper calibration | Calibrate the incubator according to manufacturer guidelines. |
Frequently Asked Questions
What is the maximum temperature range of the YR05905?
The YR05905 has a temperature control range of RT +5 to 100℃, making it suitable for a variety of laboratory applications.
How many pre-stored programs does the YR05905 include?
The YR05905 features 10 pre-stored programs, allowing for quick operation tailored to specific laboratory needs.
What materials are used in the construction of the YR05905?
The YR05905 is constructed with high-quality stainless steel coated with Teflon, ensuring durability and resistance to corrosion.
How does the PID control system function in the YR05905?
The PID control system continuously adjusts the heating element's output to maintain a stable temperature, achieving high precision with minimal fluctuation.
What types of applications can the YR05905 be used for?
The YR05905 can be used for culturing microorganisms, performing enzyme reactions, and incubating various biological samples.
