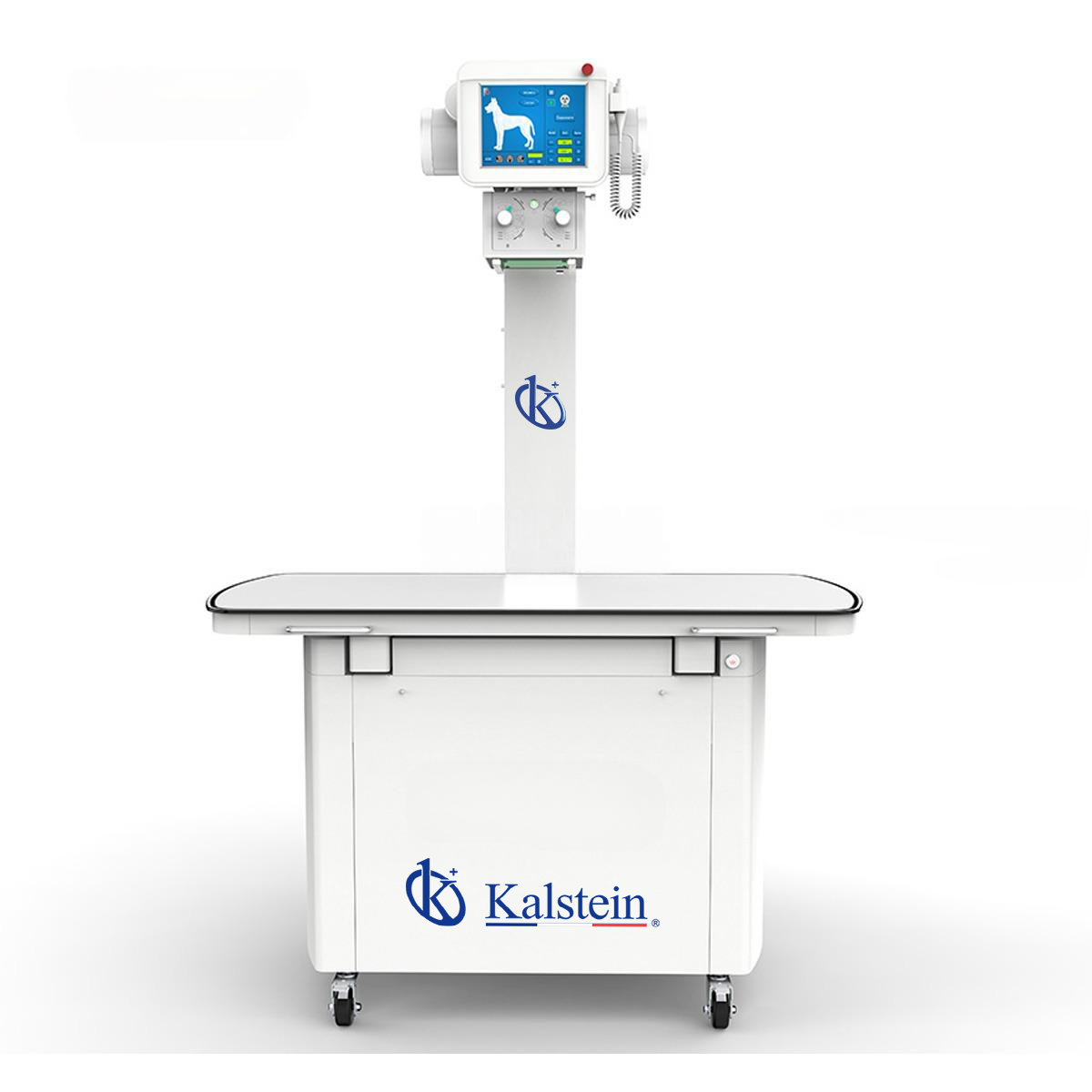

Understanding the Principle of Operation and Scientific Fundamentals of the YR06164 Digital Veterinary X-ray Machine
The YR06164 Digital Veterinary X-ray Machine is a sophisticated tool that utilizes advanced technology for high-quality imaging in veterinary practices. Understanding its underlying principles provides operators with insight into its optimal use and maintenance. This article delves into the operational mechanisms that power the YR06164, exploring the scientific foundations that enable it to deliver precise veterinary diagnostics.
Basic Principles of X-ray Production
X-rays are a form of electromagnetic radiation, generated when high-speed electrons collide with a target material, typically tungsten. In the YR06164, this process begins in the X-ray tube, where an anode and cathode create a vacuum environment. The cathode emits electrons, which are then accelerated towards the anode. Upon impact, these electrons produce X-rays, which are then directed towards the animal being imaged.
The principal physical interactions involved in X-ray production include Bremsstrahlung radiation and characteristic radiation. Bremsstrahlung occurs when electrons are deflected by the nucleus of the tungsten atoms, releasing energy in the form of X-rays. Characteristic radiation occurs when an electron dislodges an inner-shell electron from the tungsten atom; as outer-shell electrons fill that vacancy, they emit X-ray photons. This dual mechanism enhances the efficiency of the YR06164, allowing it to produce high-quality images suitable for veterinary diagnostics.
Design Choices and Their Impact on Performance
The design of the YR06164 Digital Veterinary X-ray Machine is a result of careful engineering decisions aimed at maximizing performance and operational efficiency. One key feature is its 400 mA high-frequency generator that allows for rapid and controlled X-ray production. The ability to adjust the tube current gives veterinarians the flexibility to tailor the exposure settings based on the size and type of animal being examined.
Another significant design choice is the flat panel detector technology integrated into the system. This allows for faster image acquisition and better image quality compared to traditional radiographic systems. The detector captures the X-rays emitted after interacting with the animal's body, converting them into digital signals that create high-resolution images on the workstation's LCD display.
Key Technical Specifications of the YR06164
| Specification | Details |
|---|---|
| Model | YR06164 |
| Maximum Output Power | 32 kW |
| Tube Current Range | 32~400 mA |
| Tube Voltage Range | 40 kV~125 kV |
| Loading Time | 10~5000 ms |
| mAs Range | 0.32~400 mAs |
| Input Voltage Range | AC 220V±22V |
| Max. Tube Voltage | 120 kV |
| Focus | Small focus: 1.0 mm, Large focus: 2.0 mm |
| Anode Speed | 2800 r/min |
| CPU | >=2.8 GHz |
| Memory | 4 GB |
| Disk Capacity | 500 GB |
| Medical LCD | 19” LCD |
Understanding Digital Imaging Technology
The YR06164 employs state-of-the-art digital imaging technology that revolutionizes how veterinary professionals capture and interpret X-ray images. The flat panel detector enhances image quality by providing high spatial resolution and a wider dynamic range than traditional film-based systems. Images can be manipulated digitally, allowing for adjustments in contrast and brightness, which aids in clearer diagnostics.
Moreover, the immediate availability of digital images on the workstation enables veterinarians to make faster decisions regarding patient care. This not only improves the efficiency of the workflow but also enhances the overall experience for pet owners and their animals.
Operational Best Practices for the YR06164
To ensure the longevity and optimal performance of the YR06164, operators should adhere to several best practices. Regular maintenance, including calibration of exposure settings and inspection of the X-ray tube, is essential. Keeping the machine clean and verifying the integrity of the cables and connections also play a crucial role in maintaining performance standards.
Operators should become familiar with the user interface, ensuring that they can quickly navigate through settings for different imaging requirements. Awareness of the proper positioning of the animal and correct exposure settings is vital for obtaining high-quality images. Utilizing the device's software for image enhancement and reporting can significantly streamline the diagnostic process.
Frequently Asked Questions
What is the maximum voltage and current output of the YR06164?
The YR06164 has a maximum tube voltage of 120 kV and a current output that ranges from 32 to 400 mA, providing flexibility for various imaging needs in veterinary practice.
How does the flat panel detector improve imaging quality?
The flat panel detector used in the YR06164 provides higher spatial resolution and a greater dynamic range, resulting in clearer and more detailed images compared to traditional film methods.
What is the recommended maintenance schedule for the YR06164?
Regular maintenance should be performed at least once per year, including calibration checks, cleanliness inspections, and ensuring the integrity of electrical connections.
Can the YR06164 be used for different sizes of animals?
Yes, the YR06164 is designed with adjustable settings to accommodate various animal sizes, ensuring accurate imaging for both small and large veterinary patients.
What are the key safety features integrated into the YR06164?
The YR06164 includes multiple safety features such as automatic shutoff, shielding to minimize radiation exposure, and user alerts for operational anomalies, ensuring safe usage during imaging procedures.
How does the YR06164 facilitate faster diagnostic decisions?
With its digital imaging capabilities, the YR06164 allows instant image capture and manipulation, enabling veterinarians to make quicker diagnostic decisions, ultimately improving patient care.
Where can I request a quote for the YR06164?
You can request a quote for the YR06164 through our official channels to get the most competitive pricing for this advanced veterinary imaging solution.
