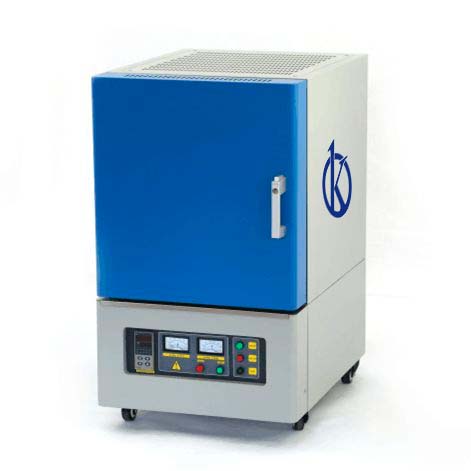

Universal Lab High Temp Box Muffle Furnace YR05274
The Universal Lab High Temp Box Muffle Furnace YR05274 is a state-of-the-art laboratory device designed to meet the needs of various scientific applications. With its advanced features, this muffle furnace provides reliable performance for high-temperature experiments, quality control testing, and material synthesis.
Product Description
The YR05274 model muffle furnace adopts a box-type structure, making it convenient for inserting and removing materials. It has a maximum temperature capability of up to 1700°C, allowing for a wide range of applications. The furnace can be customized according to specific requirements, ensuring versatility in laboratory settings.
Constructed with a double-layer carbon steel housing and equipped with a 30-segment PID control system, the YR05274 guarantees precision and stability during operation. It features high-purity polycrystalline alumina fiber bricks and high-quality heating elements that enhance its reliability.
The air cooling system enables rapid temperature adjustments, making it ideal for annealing and sintering materials, composition analysis, and quality testing in universities, research institutes, and various laboratories. This furnace is essential for any laboratory aiming for high standards in material processing.
Market Price
The current market price for the Universal Lab High Temp Box Muffle Furnace YR05274 is approximately $1120.00 USD. This price reflects the advanced technology and features integrated into the furnace, providing excellent value for laboratories focusing on quality control and high-temperature applications.
| Model | Chamber Size (DxWxH) (cm) | Capacity | Max Temperature (°C) | Continuous Working Temperature (°C) | Heating Element | Thermocouple Type | Working Voltage (V) | Max Power (KW) | Weight (KG) |
|---|---|---|---|---|---|---|---|---|---|
| YR05274 | 30x20x12 | 7.2 | 1700 | ≦1600 | Molybdenum Disilicide Heater | Type B | 220-380 | 1-16 | 84 |
| YR05273 | 20x15x15 | 4.5 | 1200 | ≦1100 | Fe-Cr-Al-Mo Wire | Type K | 220-380 | 1-9 | 93 |
Frequently Asked Questions
What is the maximum temperature the YR05274 can reach?
The maximum temperature the YR05274 can reach is 1700°C, making it suitable for various high-temperature applications.
Can the YR05274 be customized?
Yes, the YR05274 muffle furnace can be customized according to specific laboratory needs, including chamber size and additional features.
What safety features does the muffle furnace have?
The YR05274 is equipped with safety lock features that automatically shut off the furnace when the door is opened, ensuring user safety.
Is the furnace suitable for quality control testing?
Yes, the YR05274 is designed for quality control testing and is ideal for applications such as annealing, sintering, and composition analysis.
What type of heating element does the YR05274 use?
The YR05274 utilizes a molybdenum disilicide heater, which provides efficient heating capabilities for high-temperature processes.
What is the weight of the YR05274 muffle furnace?
The weight of the YR05274 muffle furnace is approximately 84 kg, making it manageable for laboratory setups.
How is temperature control achieved in the YR05274?
The YR05274 uses a PID control system with 30 programmable segments for accurate and reliable temperature management.
Pros and Cons
Pros
- High maximum temperature of 1700°C.
- Customizable features to meet specific laboratory needs.
- Advanced PID control for precision temperature management.
- Safety lock mechanisms enhance user safety.
- Efficient air cooling system for rapid temperature adjustments.
Cons
- Initial cost may be high for smaller laboratories.
- Requires proper handling and maintenance for longevity.
Field Usage
The Universal Lab High Temp Box Muffle Furnace YR05274 is extensively used in a variety of fields, including:
- Material science for sintering and annealing processes.
- Chemical analysis in academic and research institutions.
- Quality control testing for manufacturing industries.
- Laboratory experiments that require precise thermal processing.
Recommendations
For laboratories focused on quality control and high-temperature applications, investing in the YR05274 muffle furnace is highly recommended. Its advanced features and customizable options provide excellent flexibility and reliability for various processes. Ensuring proper installation and regular maintenance will maximize its efficiency and lifespan.
To enhance your laboratory experience, consider requesting a quote on Kalstein Plus, where you can find additional equipment tailored to your needs.
