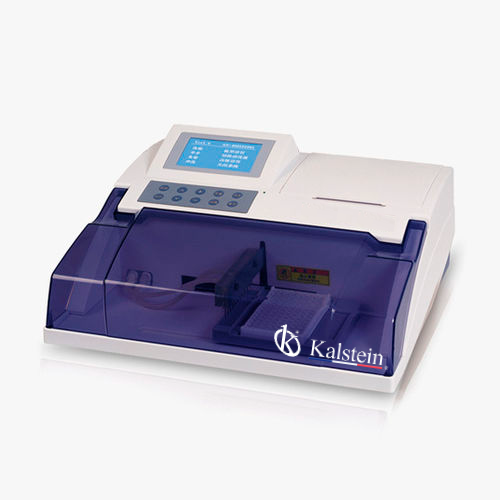

Automatic Microplate Washer YR06084 – YR06085

ManufacturerKalstein

Description

Automatic Microplate Washer YR06084 – YR06085 is a state-of-the-art laboratory instrument designed to efficiently wash flat, U, and V-bottom strips and plates. Featuring a compact design with small residual volume and multiple aspiration ways, this washer ensures precise cleaning for every experiment. With optional multi-channel incubator and liquid level detection with alert functions, this device is engineered for reliability and high performance. It’s perfect for labs looking for consistency and efficiency in their washing process.

Market Price Overview

The Automatic Microplate Washer YR06084 – YR06085 offers advanced features at a competitive market price. Typically, a machine of this caliber can be found in the range of $3,100 to $3,800 USD, depending on additional features and purchase agreements. Investing in this washer can enhance your lab’s productivity while staying within budget.

Frequently Asked Questions

Q: Can the washer accommodate different plate sizes? A: Yes, it supports both 96- and 48-well plates, offering versatility for different experimental setups.

Q: Is the incubator function standard on both models? A: The incubator is an optional feature, providing flexibility based on your specific needs.

Advantages and Disadvantages

The main advantages of the Automatic Microplate Washer YR06084 – YR06085 include its adaptability, ease of use, and precise control over washing cycles. Its efficient use of reagents and minimal waste production ensure resource conservation. A potential downside could be the initial learning curve for users unfamiliar with automated systems, but thorough training mitigates this issue.

Field Use Application

In a practical setting, this washer is indispensable for high-throughput laboratories, where reducing manual workload and increasing sample throughput are critical. Its ability to perform up to 99 washing cycles with programmable strip washing makes it a valuable asset in experimental workflows that demand consistency and reproducibility.

Recommendations

To maximize the lifespan and performance of your Automatic Microplate Washer YR06084 – YR06085, it is recommended to regularly calibrate the machine and keep it clean after each use. Regular maintenance intervals should be adhered to, as specified by the manufacturer.

Product Features

  • Washes flat, U, and V-bottom strips and plates.
  • Small residual volume, multiple aspiration ways.
  • Multi-channel, incubator optional.
  • Liquid level detection and alert function.

Technical Specifications

Model YR06084 YR06085
Plate Mode 96-/48-well plate or strip
Residual Volume ‹3pl
Washing Volume 10-3000ul/well, 1ul by step
Washing Cycle Maximum 99 cycles
Strip Washing 1 to 12 strips programmable
Soaking Time 0-24hours
Shaking Time 0-24hours
Display Large LCD
Wash Channels
5 channels, 1 or up to 3 for wash, Includes an 8 or 12 pin collector
1 forrinse and 1 for waste for a quick and efficient wash
Memory 99 washing protocols 100 different washing programs
Interface RS-232
Power Supply a.c. 110V-220V,50Hz
Net Weight 13 Kg
Dimension 450MM×390MM× 190MM
Incubator Temperature(optional) 25 °С,30 °C,37 °С

Additional information

Weight N/A
Dimensions 54,8 × 50,8 × 34,4 cm
Model

YR06084, YR06085
