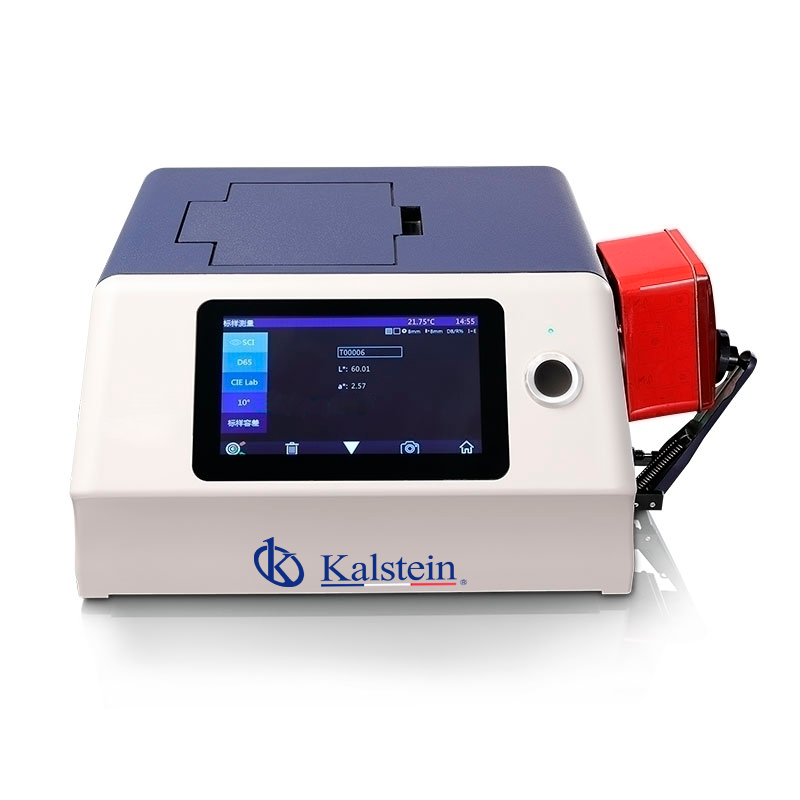

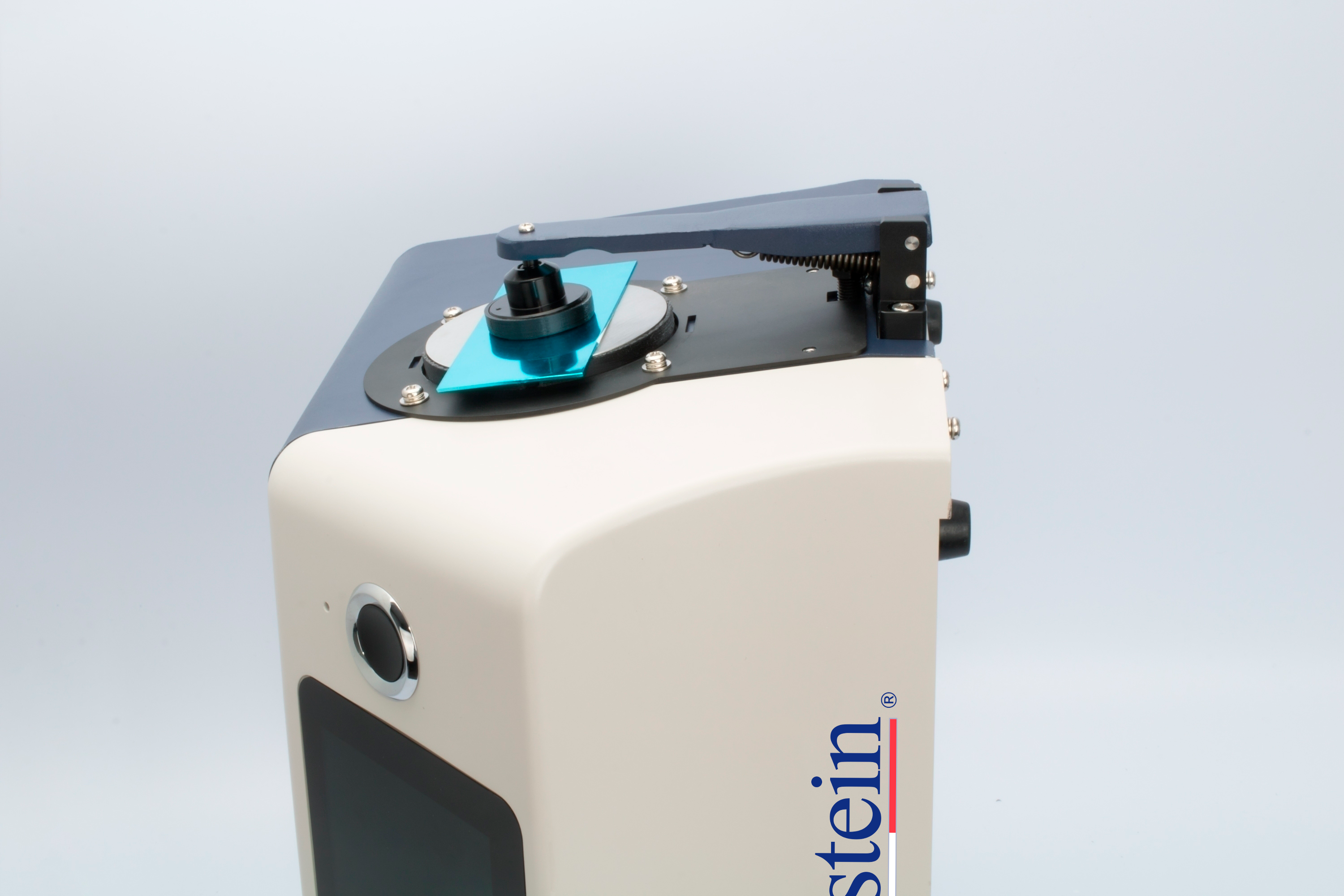

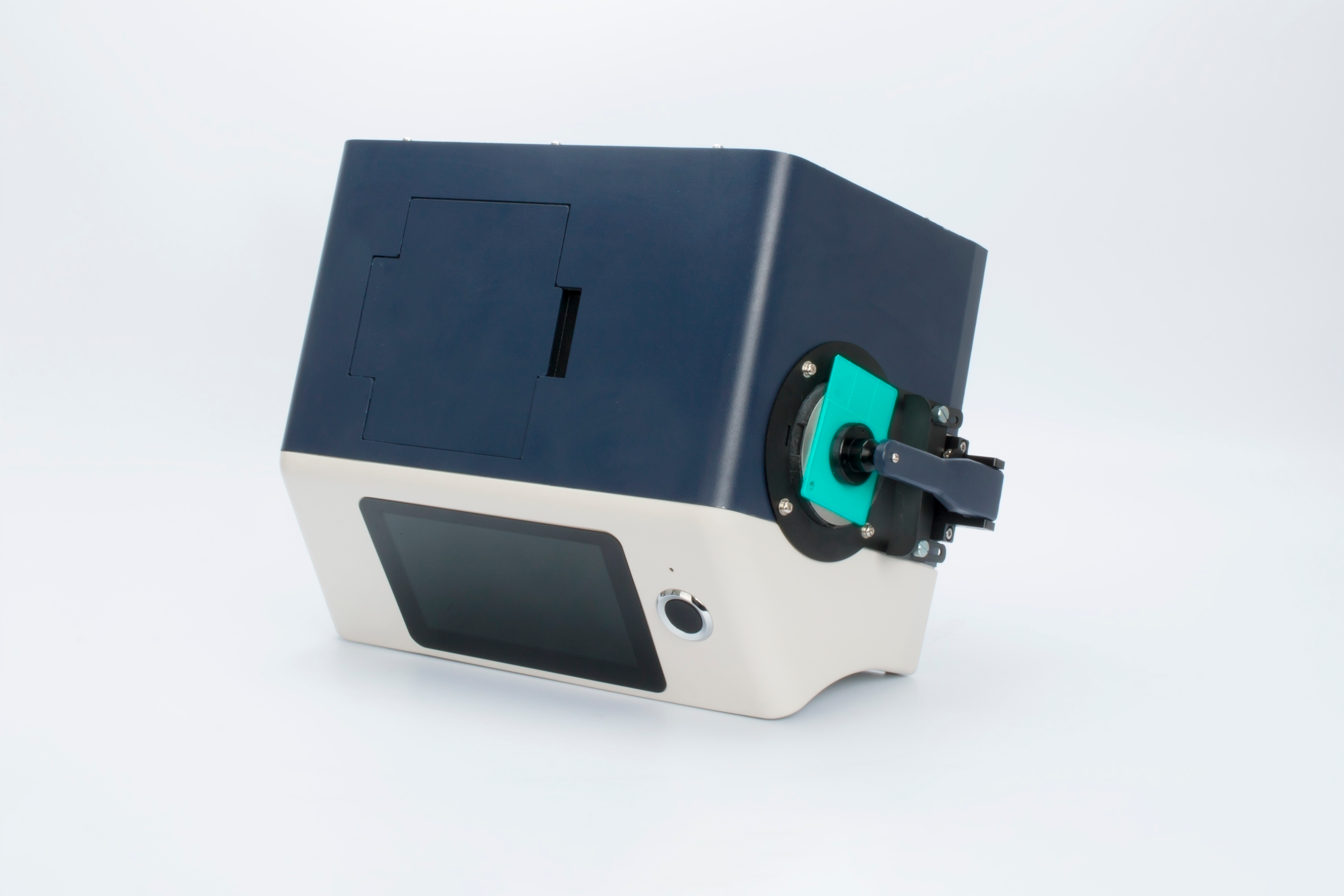

Benchtop Spectrophotometer YR05477

ManufacturerKalstein

Description

The Benchtop Spectrophotometer YR05477 is a versatile and high-precision instrument designed for seamless measurement of color and appearance across a variety of industrial applications. Equipped with advanced optical structures such as reflective d/8 and transmissive d/0 geometry, it expertly handles both reflectance in solid objects and transmittance in liquids and translucent materials. This device boasts a user-friendly design with a 7-inch TFT touch screen and an array of illuminants, including LED and UV light sources. A storage capacity for up to 20,000 records, combined with powerful and versatile PC software, makes the YR05477 a definitive solution for color analysis in industries like plastics, paint, textiles, and cosmetics.

Market Price

The market price for precision instruments like the Benchtop Spectrophotometer YR05477 ranges from $10,400 to $10,800 USD. This price point makes the YR05477 a cost-effective choice for companies prioritizing accuracy and consistency in quality control and color management. To receive a tailored quote that fits your industry’s specific requirements, we encourage you to utilize the Kalstein Plus platform for a quick and secure quote application.

Frequently Asked Questions

  • Is the YR05477 suitable for both translucent and opaque samples?
    Yes, this versatile spectrophotometer is capable of measuring both opaque and translucent materials, including liquids and transparent solids.
  • What is the storage capacity?
    The YR05477 can store up to 20,000 test results, allowing for a comprehensive and detailed record of analyses.
  • Does the device offer options to adjust the measurement aperture?
    Yes, users can select from four different apertures: φ25.4 mm, 15 mm, 8 mm, and 4 mm, providing flexibility across various applications.

Advantages and Disadvantages

The primary advantages of the YR05477 include its reliable temperature compensation system, ensuring precision even in fluctuating environments, its adaptability in measuring diverse color spaces, and its comfortable ergonomic design suitable for prolonged use. However, users should be mindful of periodic calibration needs especially in high-use environments to maintain optimal measurement accuracy.

Field Use

The YR05477 is invaluable in industries with high standards for product appearance, such as automotive, food, cosmetics, and medical sectors. Its capacity for precise measurement of both reflectance and transmittance makes it an essential tool for quality control processes, effectively supporting product development and ensuring consistent adherence to quality standards.

Recommendations

To achieve maximum efficiency with the YR05477 spectrophotometer, regular calibration and maintaining it within a clean, stable environment are necessary. Select the appropriate measurement aperture based on sample type and testing conditions to enhance accuracy and reproducibility of results. Generate your tailored quote today through Kalstein Plus and discover how the Desktop Spectrophotometer YR05477 can elevate your quality control practices, offering precision and reliability across all applications.

Features

  • Reflective and transmissive optical geometry
  • User-friendly design with 7-inch TFT touch screen
  • LED and UV light sources for versatile illumination
  • Storage capacity up to 20,000 records
  • Comprehensive color analysis across multiple industries
  • Adjustable measurement apertures for versatility

Technical Specifications

Model YR05477
Optical Geometry Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) ;         SCI (specular component included)/SCE (specular component excluded) ;                                          Include UV / excluded UV light source Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) ;                     SCI (specular component included)/SCE (specular component excluded) ;                                          Include UV / excluded UV light source;Haze(ASTM D1003), Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Application It is used for accurate analysis and transmission of laboratory color.     Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere Size Φ154mm
Light Source 360 nm to 780 nm, Combined LED Light, 400nm cut-off light source
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 360-780nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture Reflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm;
Remark: 1. Automatic identification of switch caliber   2. Customized Configuration caliber and lens position
Specular Component Reflectance: SCI&SCE  / Transmittance: SCI&SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula ΔE * ab ,ΔE * uv ,ΔE * 94 ,ΔE * cmc(2:1) ,ΔE * cmc(1:1) ,ΔE * 00 , DINΔE 99 ,ΔE (Hunter),
Other Colorimetric Index WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003)
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time About 2.4s (Measure SCI & SCE about 5s)
Repeatability Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)                                                                                        Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Φ25.4mm/SCI, Within ΔE*ab 0.15
(Average for 12 BCRA Series II color tiles)
Dimension L*W*H=370x300x200mm
Weight Approx. 9.6kg
Power AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB & Print serial port
Data Storage Standard 2000 Pcs, Sample 20000 Pcs
Language Simplified Chinese, Traditional Chinese, English,
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)

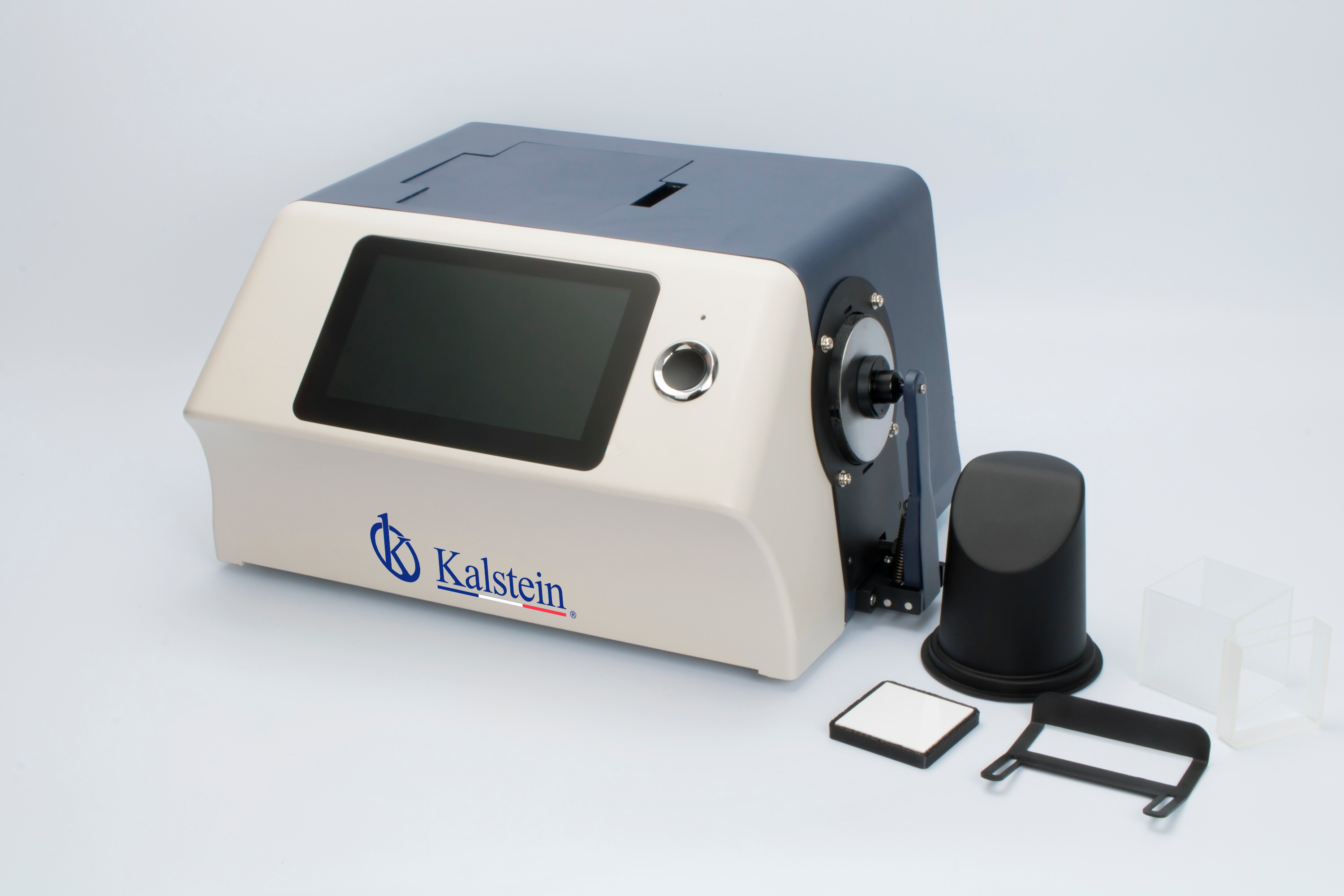

Standard Accessory Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber
Optional Accessory Micro-printer, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components
Notes: The specifications are subject to change without notice.

Additional information

Weight 12,5 kg
Dimensions 51 × 45 × 33 cm
