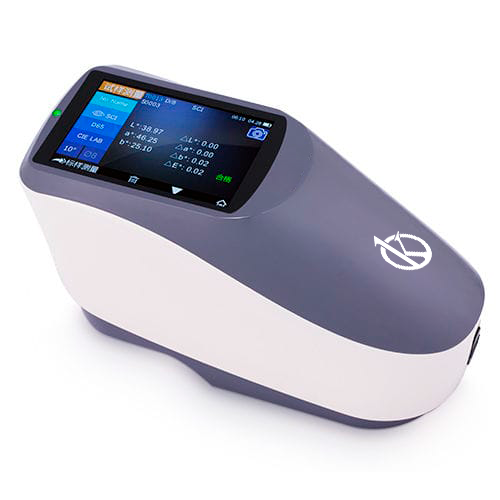

Grating Spectrophotometer with 8mm and 4mm Apertures YR05504

ManufacturerKalstein

Description

The UV Grid Spectrophotometer with 8 mm and 4 mm Apertures YR05504 by Kalstein is a cutting-edge device tailored to meet the highest standards in color analysis across both laboratory and industrial settings. This spectrophotometer features a 45/0 optical system with a ring-shaped illumination at 45° and vertical observation at 0°, ensuring precise and consistent color transmission results. Compatible with international standards like CIE No.15 and ASTM E1164, its dual aperture design provides versatile measurement options suitable for industries such as paints, textiles, printing, and signage. Boasting a dual-matrix CMOS detector, integrated LED and UV light sources, and a 3.5-inch LCD touchscreen, the YR05504 is advanced, user-friendly, and built to last.

Market Price

The YR05504 spectrophotometer is competitively priced in the market, with a range from $4,900 to $5,400 USD, depending on additional accessories and configurations. This price point makes the spectrophotometer a valuable investment for those aiming to enhance color accuracy and improve production processes. For a detailed quote tailored to your needs, consider using the Kalstein Plus platform for quick and personalized pricing information.

Frequently Asked Questions

  • What industries benefit from the YR05504 spectrophotometer?
    This device is optimal for quality control in industries such as paints, textiles, and printing, as well as for measuring the color of fluorescent samples and traffic signals.
  • Does this spectrophotometer support wireless communication?
    Yes, it includes Bluetooth 4.0 and USB connectivity, facilitating easy data transfer and integration with analysis systems.
  • How durable is the light source?
    The LED light source, including UV, has a lifespan of approximately 5 years, allowing over 3 million measurements.

Advantages and Disadvantages

The YR05504 boasts several advantages, such as high precision with a standard deviation of 0.08% in spectral reflectance, flexible measurement with 8mm and 4mm apertures, and compatibility with many international colorimetry standards. Its ergonomic design and intuitive interface ensure ease of use. However, it is limited to a wavelength range of 400-700 nm, which may not be suitable for applications requiring analysis beyond the visible spectrum.

Field Applications

The YR05504 spectrophotometer is extensively used for color analysis in textiles, printing, and paint manufacturing. Its capacity to measure brightness and color metrics in traffic signals and reflective films makes it essential for ensuring color quality. Its portability and precision make it ideal for both laboratory settings and quality control during production.

Recommendations

To maintain the optimal performance of your YR05504 spectrophotometer, keep it in a clean environment and perform regular calibrations. Its lithium-ion battery allows up to 5,000 measurements over 8 hours, making recharging important for uninterrupted use. Request a customized quote or generate one quickly via Kalstein Plus to explore how the UV Grid Spectrophotometer with 8 mm and 4 mm Apertures YR05504 can elevate color control in your industry, optimizing every process with efficiency and precision.

Features

The spectrophotometer offers high accuracy, dual apertures for flexible measurement, compliance with international standards, and features like Bluetooth connectivity and a long-lasting LED light source. Its compact design includes a 3.5-inch touchscreen for easy operation, making it a versatile and reliable choice for various colorimetry applications.

Technical Specifications

Model YR05504
Illumination/Observation system 45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833
Features High accuracy spectrophotometer is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement. It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light, UV Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity, Supporting Colorimetric Polygon Tolerance
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: MAV, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) Chromaticity value: within ΔE*ab 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement (2-99)
Size (L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 4.0
Data memory Standard 1000 Pcs, Sample 30000 Pcs
Language Chinese, English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation); altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website), White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
