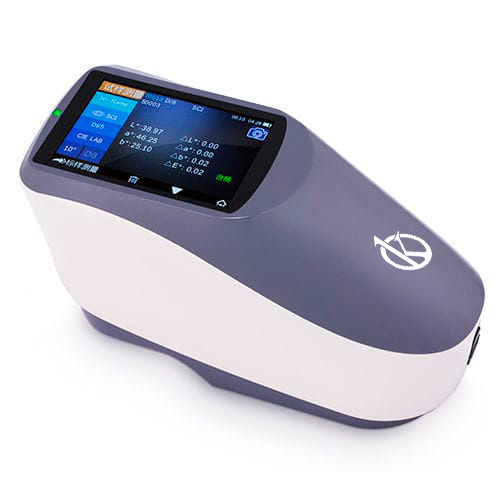

Plus 45/0 8mm Spectrophotometer YR05505

ManufacturerKalstein

Description

The Plus 45/0 8mm Spectrophotometer YR05505 by Kalstein offers a superior solution for precise color control across various industries, including paints, inks, textiles, garments, printing, and dyeing. This robust device, with its customizable 8 mm aperture, alongside 4 mm and 2 mm options, meets diverse industrial requirements. Featuring a 45/0 lighting system that aligns with international standards such as CIE No.15, ISO 7724-1, and ASTM E1164, and equipped with a LED light source, it ensures dependable performance for color transfer and quality assurance. The YR05505’s compact design and user-friendly 3.5-inch color LCD screen make it ideal for both laboratory and field applications, ensuring ease of use and portability.

Market Price

The spectrophotometer YR05505 is competitively priced within a range of approximately $3,900 to $4,700 USD, varying according to the selected accessories and customizations. This pricing makes it an attractive investment for companies focused on enhancing the precision of their color analysis and optimizing production processes. For a tailored quote that suits your specific industry needs, you can either request a personalized consultation or generate an automatic quote through Kalstein Plus, thus simplifying the procurement process.

Frequently Asked Questions

  • Is the aperture size adjustable?
    Yes, the YR05505 comes with an 8 mm aperture by default, but it also offers flexibility with 4 mm and 2 mm options for various applications.
  • What is the lifespan of the light source?
    The LED light source has a lifespan of 5 years, capable of performing over 3 million measurements.
  • Can this device store data?
    Indeed, the YR05505 can store 500 reference data points and 20,000 samples, facilitating efficient data management.

Advantages and Disadvantages

The YR05505 is renowned for its high precision in color analysis, compatibility with multiple color spaces, and its concave grating spectral separation system that guarantees accuracy. The USB interface and optional microprinter connection aid in easy data transfer. However, its use is somewhat limited to the visible spectrum (400-700 nm), making it less suitable for non-visible range analyses.

Field Applications

This spectrophotometer is invaluable for ensuring color accuracy in textiles, paints, and inks, where minute color changes can significantly impact quality. Its portable and sturdy design permits on-site production floor use, expediting quality checks. In labs, it provides consistent and precise results in sample evaluations and metamerism assessments.

Recommendations

To optimize the YR05505, regular calibration is advised, along with storage in a dry, dust-free environment. The device’s lithium battery supports up to 5,000 measurements over 8 hours, so periodic recharging is essential for uninterrupted operations. Request a customized quote or quickly generate one via Kalstein Plus and discover how this spectrophotometer can enhance your industry’s color process accuracy and efficiency.

Technical Specifications

Model YR05505
Illumination/Observation system 45/0 (45 ring-shaped illumination, vertical viewing); Comply with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833
Features Common spectrophotometer with customized one aperture, like 8mm aperture and apply in paints, inks, textiles, garments, printing and dyeing industries for color transfer and quality control.
Integrating Sphere Size Φ48mm
Light Source Combined LED Light
Spectral separation device Concave Grating
Detector 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm
Wavelength Pitch 10nm
Half Bandwidth 10nm
Reflectance Range 0~200%
Measuring Aperture Customized One Aperture: MAV: Φ8mm/Φ10mm; SAV: Φ4mm/Φ5mm; SAV: Φ2mm/Φ3mm;
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB, βxy
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE (Hunter)
Other Colorimetric Index WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity
Observer Angle 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30)
Display Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time About 1.5s
Repeatability Spectral reflectance: MAV, Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) Chromaticity value: MAV, within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5-second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Measurement mode Single Measurement, Average Measurement(2-99)
Size (L*W*H) 184*77*105mm
Weight About 600g
Power source Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB
Data memory Standard 500 Pcs, Sample 20000 Pcs
Language Chinese, English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation); altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software (download from the website) White and Black Calibration Board, Protective Cover.
Optional Accessory Micro Printer, Powder Test Box, Universal test components, Locating Plate
Notes: The specifications are subject to change without notice.

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
