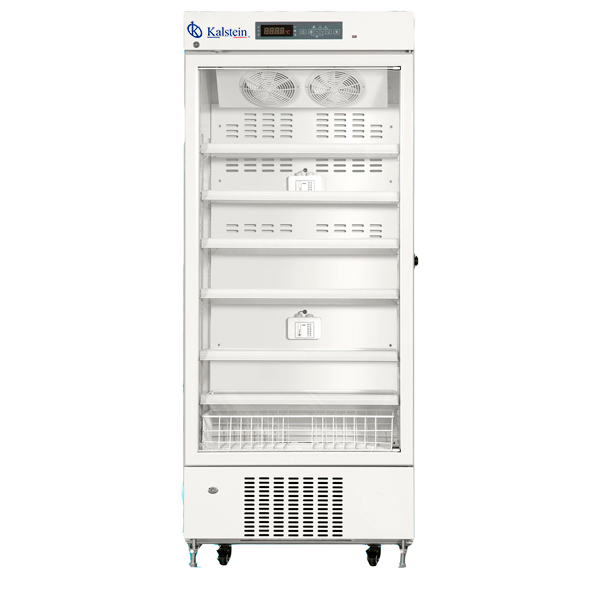

Medical Refrigerator YR05085

Manufacturer: Kalstein

Product Description

Promed pharmacy refrigerators are specially designed to store medicines,vaccines, regents and biomedical products.

Reliability and Key Features
  • Standard with USB port, easy to download temperature data and alarm data.
  • High efficiency specialty compressor with known field reliability
  • Permanently lubricated cooling fan for safety and longevity
  • Forced- air cooling with optimized air distribution system designed
  • To achieve maximum temperature uniformity and stability
  • Optimized refrigeration system design for more effective cooling and
  • Speedy recovery
  • Temperature variation within ยฑ3ยบC
  • Adjustable temperature range 2-8ยบC
  • Microprocessor control, digital display, and temperature adjustment with an increment of 0.1ยบC
  • Large digital display screen
Ergonomic Design
  • Optimized space utilization design with multi – level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
  • Safety lock to prevent unauthorized access
  • Standard with USB port, test hole and heated glass door
  • LED Interior light
Safety
  • Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light
  • Capable of alerting failures due to high and low temperature sensor error, door ajar, , power failure and low battery
Model YR05085
Specificaitons
Shelf/drawer Shelves*6/Basket*1
Cooling method Forced Air Cooling System
Defrost Auto
Refrigerant R134A
Power consumption(kWh/24h) 3.97
Noise(db) 50
Ambient temperature(โ„ƒ) 10~32โ„ƒ
Temperature range(โ„ƒ) 2~8โ„ƒ
Cooling system
Compressor brand/QTY China Brand/1
Sensor Type NTC
Temperature controller Microprocessor
Display Digital display
Power
Voltage/frequency(V/Hz) 220/50Hz
Power(W) 280W
Current(A) 1.7A
Material
Inside material Color sprayed steel
Outside material Color sprayed steel
Insulation PURF
Size
Capacity(L/cu.ft) 415/14.69
NT./GT.(kg) 120/133
Exterior size(W*D*H)(mm) 800*552*1940
Interior size(W*D*H)(mm) 685*429*1380
Package size(W*D*H)(mm) 890*655*2100
CBM 1.2
20GP/40GP/40HQ 18/39/39
Alarm
High/low temperature Y
Power failure Y
Thermostat failure Y
Backup battery failure alarm Y
Condenser fault alarm Y
Ambient Temperatures Y
Voltage abnormality alarm /
Door ajar Y
System abnormal alarm /
Power failure backup system(alarm) 48h
Accessories
Foot Y
Castor Y
Outer door/Type 1/Heating glass door with automatic rebound
Door Lock 1
Test hole QTY/diameter 1/25mm
Lamp LED
USB port Y
Temperature recorder Optional
Remote alarm port Y
RS232/485 port Y
Other Certification ISO9001/13485/14001;CE

Additional Information

Weight 150 kg
Dimensions 85,4 × 64,6 × 21 cm
