Description

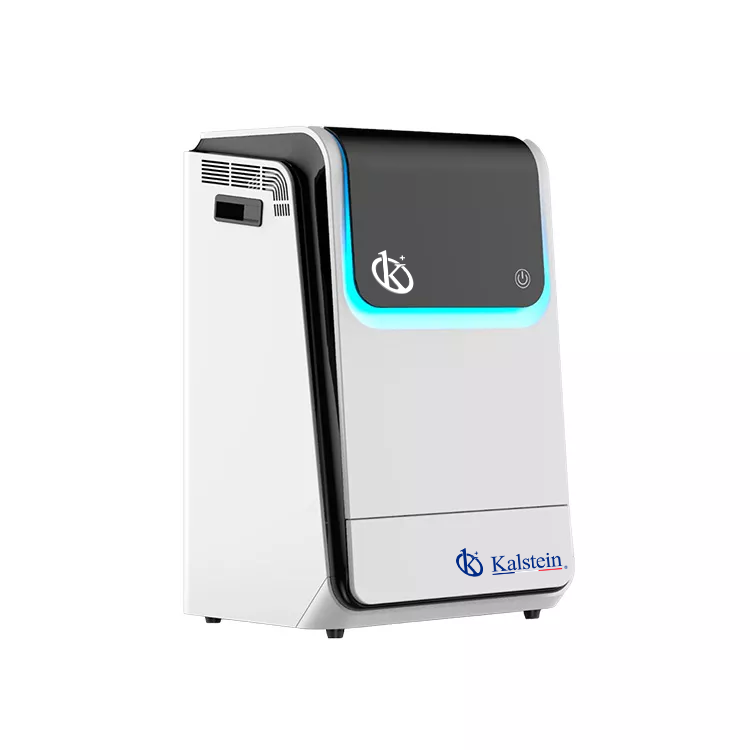

The Multifunctional Imager YR06210-YR06211 offers cutting-edge performance combined with user-friendly operations for unparalleled detection capabilities. This advanced imaging system is perfect for visible light (RGB), far red/near infrared (FR/NIR) fluorescence, chemiluminescence detection, and general gel documentation tasks. Its innovative electronic lifting platform ensures optimal capture area adjustment, accommodating diverse sample sizes. For streamlined operation, an optional removable PC enhances performance, mitigating risks associated with embedded systems.
Market Price
The Multifunctional Imager YR06210-YR06211, with its state-of-the-art features, is competitively positioned in the market. This type of high-performance imaging equipment generally falls within the $25,000 to $26,300 USD range, offering exceptional value for its advanced capabilities.
Frequently Asked Questions
What types of imaging can the Multifunctional Imager handle? The imager supports chemiluminescence, fluorescence imaging, and gel documentation applications.
Is there a software included with the imager? Yes, it includes the SHST Capture and Analysis Software, which is available for an unlimited number of users.
Advantages and Disadvantages
Advantages: It boasts a super sensitive cooled digital camera, seamless integration with an optional removable PC, and an intuitive software interface. The electronic lifting platform is a key advantage for adjusting sample capture areas.
Disadvantages: The premium price range may be a consideration for budgets with tighter constraints, and handling removable accessories requires careful management to avoid operational disruptions.
Field Use
The Multifunctional Imager is pivotal in laboratories focusing on molecular biology and biotechnology. It excels in Western blotting, both ECL and fluorescent, and is effective in DNA/RNA as well as protein gel analysis. Leveraging its precision imaging, laboratories can achieve high-quality documentation and analysis.
Recommendations
For optimal performance, ensure regular calibration and maintenance of the system. Utilizing the optional removable PC can significantly enhance data processing speeds. Periodically update the software to the latest version to leverage improvements and new features.
Features
- Super sensitive Cooled digital Camera
- Wide range of applications
- Electronic lifting platform

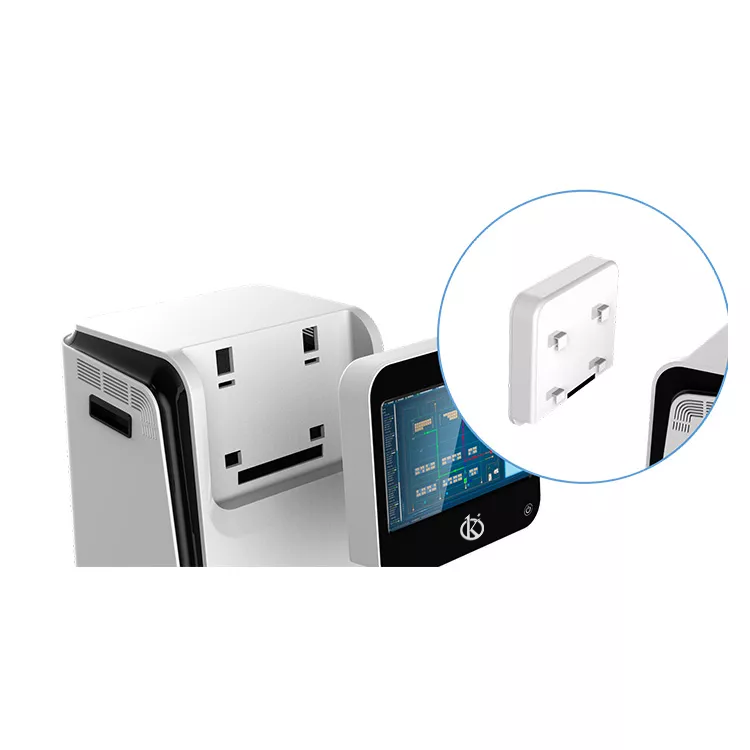

- Optional removable PC
- Intuitive Software for unlimited users.
Technical Specifications
| Model | YR06210 | YR06211 | |
|
Application
|
Chemilluminescence Imaging, ECL Western Blotting | YES | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | YES | |
| Gel Doc Application | YES | YES | |
| Protein gel；SDS Pages | YES | YES | |
|
Standard Parameters
|
Sensor | Back illuminated SCMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 °C regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel density | 16bit(65536 Grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) Auto focus | ||
| Chemilluminescence Sample tray | Electronic Lifting Platform for diverse sizes of western blotting membranes | ||
| DNA/RNA detection | Electronic Lifting Blue LED Transmission for DNA/RNA detection | ||
| Protein gel；SDS Pages | Electronic Lifting White LED Transmission for Protein Gels | ||
| Software | SHST Capture and Analysis Software for unlimited number of users | ||
|
Optional Accessories
|
Epi-UV, RGB and NIR fluorescent detection | ||
| Removable industrial computer, 13.1 Inch Touch Screen, Intel processor | |||
