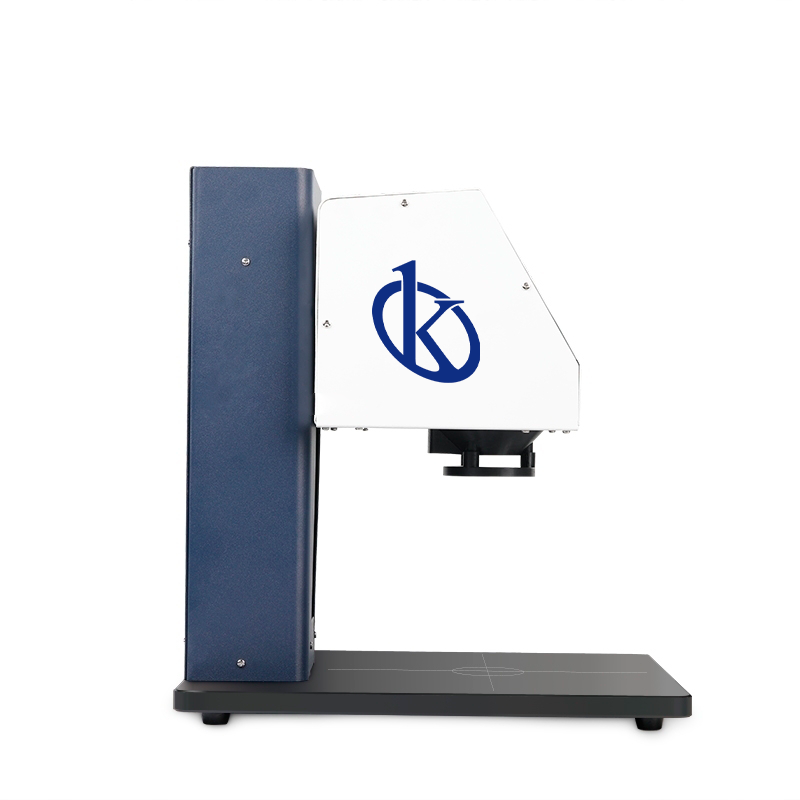

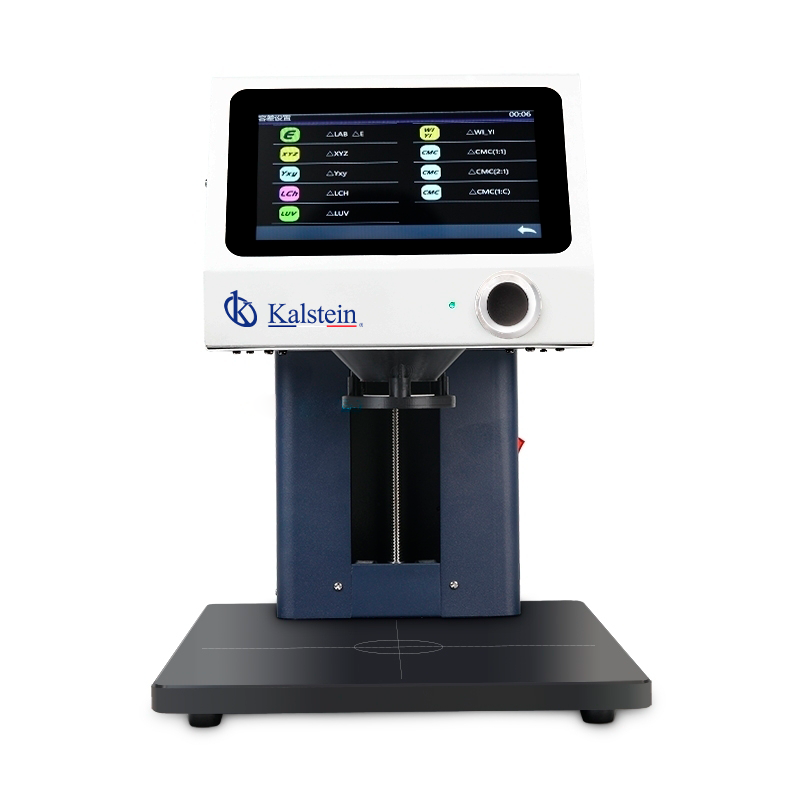

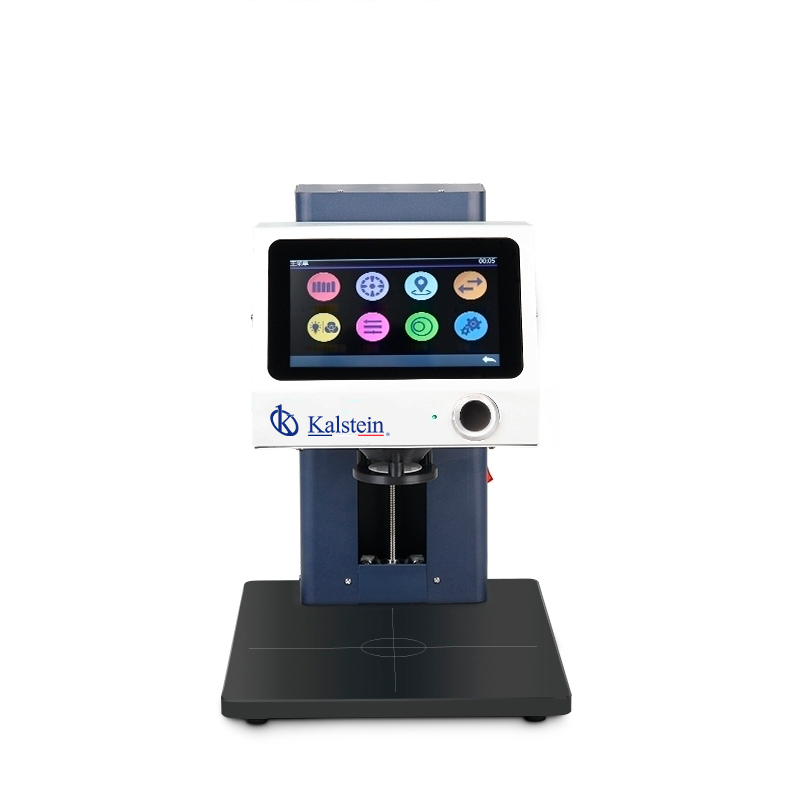

Non-contact Benchtop Spectrophotometer YR05483

ManufacturerKalstein

Description

The Non-contact Benchtop Spectrophotometer YR05483 is an innovative tool created by Kalstein to address the color measurement needs in various industries. This advanced spectrophotometer is specifically designed to prevent any contact between the measuring probe and the sample, making it perfect for delicate substances such as liquids, powders, and sauces that are easily damaged or contaminated. Featuring 45/0 optical geometry, a full-spectrum LED light source, and a 256-element CMOS sensor, the YR05483 guarantees precise, stable measurements every time. Its intuitive 7-inch TFT touch interface enhances user experience by presenting real-time data for immediate analysis, optimizing quality control in R&D labs and automated production settings.

Market Price

The market price for the YR05483 spectrophotometer varies, generally ranging from $10,000 to $10,800 USD. This price range makes it an attractive investment for businesses prioritizing high-precision color analysis in lab or industrial environments. For a custom quote that meets your specific needs, you can visit the Kalstein Plus platform to receive a detailed, obligation-free offer.

Frequently Asked Questions

  • Is it suitable for measuring liquids and powders?
    Yes, the YR05483 is expertly designed for precise, non-contact measurements of liquids, powders, and other easily damaged or contaminated materials.
  • What data storage capacity does it offer?
    The spectrophotometer can store up to 40,000 measurements, with 30,000 available in sample mode and 10,000 in continuous statistics mode.
  • How accurate is the measurement?
    The device offers exceptional measurement repeatability, ensuring a chromaticity value deviation within ΔE*ab 0.05.

Advantages and Disadvantages

One of the major advantages of the YR05483 spectrophotometer is its non-contact measurement capability, which prevents sample damage or cross-contamination. Its adaptable design accommodates various sample heights, and its robust data storage and multiple measurement modes enhance versatility. A potential downside is the need for regular calibrations in high-use environments to maintain peak accuracy.

Field Use

The YR05483 is indispensable in sectors like cosmetics, food processing, plastics, ceramics, and more, where precision in color measurement of sensitive or moving products is crucial. Its advanced lighting system and CMOS sensor ensure consistent, reliable data, vital for quality control and product development in industries where color accuracy and visual appearance are integral.

Recommendations

To maximize the performance of the YR05483 spectrophotometer, conduct periodic calibrations and maintain it in a clean, controlled environment. Ensure the measurement height is properly adjusted for each sample type to fully leverage its non-contact measurement capabilities. Request a customized quote today through Kalstein Plus to discover how this spectrophotometer can enhance your quality control processes with reliable, high-precision results at every use.

Features

Some key features of the Non-contact Benchtop Spectrophotometer YR05483 include its 45/0 non-contact measurement ability, full spectrum LED light source, 256 Image Element Double Array CMOS Image Sensor, and a wide range of color spaces including CIE LAB, XYZ, Yxy, among others. The device also showcases a 7″ TFT Capacitive Screen-touch Display for easy operation.

Technical Specifications

Model YR05483
Illumination system 45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features 45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries.
Light Source Full spectrum LED light
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400~700nm/10nm output
Reflectance Range 0~200%
Measuring Aperture Φ20mm
Non-contact Distance 7.5mm
Sample Height 0~150mm
Distance Adjustment Method Manual adjustment(test height can be stored)
Measuring mode Sample mode/QC Mode/Continuous statistics mode
Locating Method Camera Locating
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),YI(ASTM D1925,ASTM 313),TI(ASTM E313,CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,

F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset
Measuring Time About 1.5s
Data Storage Sample mode + QC mode: 30,000; Continuous statistics mode: 10,000
Repeatability Spectral reflectance: Standard deviation within 0.08%
Chromaticity value: Within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Within ΔE*ab 0.25(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2 ~ 99 times)
Dimension 330*250*370mm
Weight About 10 kg
Power Supply DC 24V, 3A Power Adapter
Illuminant Life Span 5 years, more than 3 million times measurements
Display Screen 7″ TFT Capacitive Screen-touch Display
Data Port USB/RS-232
Language Simplified Chinese,Traditional Chinese,English
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity,
Notes The specifications are subject to change without notice.

Additional information

Weight 12 kg
Dimensions 39 × 33 × 41 cm
