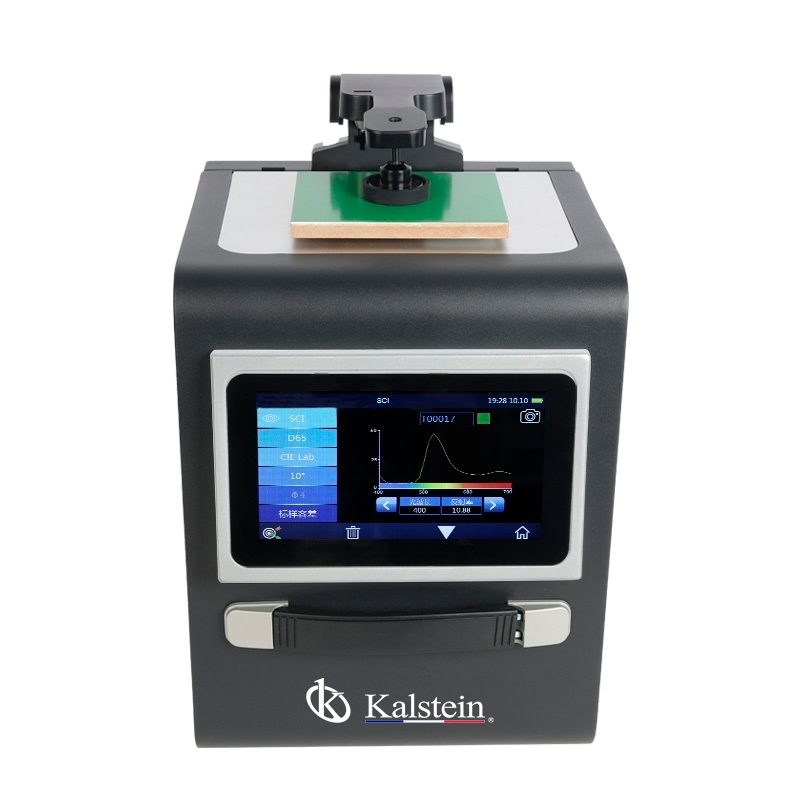

Portable Desktop spectrophotometer YR05484

ManufacturerKalstein

Description

The Portable Desktop Spectrophotometer YR05484 is a highly advanced instrument by Kalstein, specifically engineered for accurate color measurement across a variety of laboratory and industrial applications, including plastic electronics, textile manufacturing, ceramics, and printing industries. Featuring state-of-the-art 45/0 optical technology paired with a 256-pixel dual-matrix CMOS sensor, this spectrophotometer ensures an impressive ΔEab repeatability within 0.02, coupled with an internal error margin of ΔEab up to 0.15. Its adaptable design includes three optional measurement apertures (Φ18 mm, Φ8 mm, and Φ4 mm) tailored for evaluating both extensive and fluorescent samples, as well as for analyzing gloss and color coordinates on reflective films and traffic signs. Its user-centric 7-inch touchscreen and integrated camera not only streamline the measurement process but also augment the precision and effectiveness of each assessment.

Market Price

The YR05484 offers a competitive market price range, generally between $10,480 and $11,266 USD, varying depending on chosen configurations and additional accessories like an optional micro printer or rotating stand. This strategic investment is crucial for industries aiming to refine their color quality management processes. For a detailed and custom quote, the Kalstein Plus platform ensures a secure and efficient purchasing experience, encouraging buyers to swiftly generate and access personalized estimates.

Frequently Asked Questions

  • What applications is the YR05484 best suited for?
    This device is optimized for sectors demanding precise color control such as plastic electronics, textile printing, ceramics, and paint applications, and is also adept at measuring gloss and color coordinates on reflective films and signage.
  • Can the YR05484 be linked with a computer?
    Yes, it provides compatibility with PCs through its advanced color management software, allowing in-depth and comprehensive analysis of color data.
  • What storage capabilities does it offer?
    The YR05484 can store up to 1,000 standards and 30,000 samples, facilitating structured and complete records of color data.

Advantages and Disadvantages

The YR05484 excels in delivering precise results and boasts portability, adaptable sample aperture options, and reliable performance even with fluorescent specimens. Its USB and Bluetooth 5.0 connectivity promote efficient data transfer. However, its design heavily caters to laboratory use, which might limit its effectiveness in smaller spaces or tasks that do not necessitate high precision.

Field Applications

Designed for accuracy, the YR05484 shines in quality control laboratories emphasizing rigorous color analysis. Its versatile structure accommodates measurements in various orientations and larger sample areas, making it ideal for maintaining color consistency at every production stage. The SCI/SCE function, capable of conducting quick detailed assessments in approximately 3.2 seconds, significantly boosts efficiency in industrial settings.

Recommendations

To ensure optimal performance, it’s advisable to regularly calibrate the YR05484 and operate it in a clean, dust-free environment. Its robust full-spectrum LED and UV light sources guarantee precise measurements, even under challenging conditions. We invite you to explore the transformative potential of the Portable Desktop Spectrophotometer YR05484 in heightening your industry’s precision standards. For a tailored quote, swiftly generate your estimate using the Kalstein Plus platform to advance your color control processes.

Features

The Portable Desktop Spectrophotometer YR05484 includes several distinguishing features such as a 45/0 optical geometry for accurate angles, customized measurement apertures for diverse sample types, specular components for detailed gloss assessments, and broad data storage capabilities for comprehensive color tracking.

Technical Specifications

Model YR05484
Optical Geometry 45/0(45 ring-shaped illumination, 0 degree viewing angle)
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic Enhanced version spectrophotometer, Customized single aperture Φ18/8/4 mm diameter aperture,  used in laboratory accurate analysis and transmission;
Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries; It can be used for fluorescence sample measurement.
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Sensors Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0~200%
Measuring Aperture Customized single aperture,LAV:Φ18mm/Φ20mm;MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component 45/0
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),

ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity
8° Glossiness,555 tone classification
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,

F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)

Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Measuring Time About 1.8s
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15

(Average for 12 BCRA Series II color tiles)

Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method /
Dimension L*W*H=370X240X260mm
Weight About 7.8kg
Battery AC 24V, 3A Power adapter power supply
Illuminant Life Span 5 years, more than 3 million times measurements
Display 7-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth ®5.0, trigger switch interface
Data Storage Standard 1000 Pcs, Sample 30000 Pcs
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment  -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture)

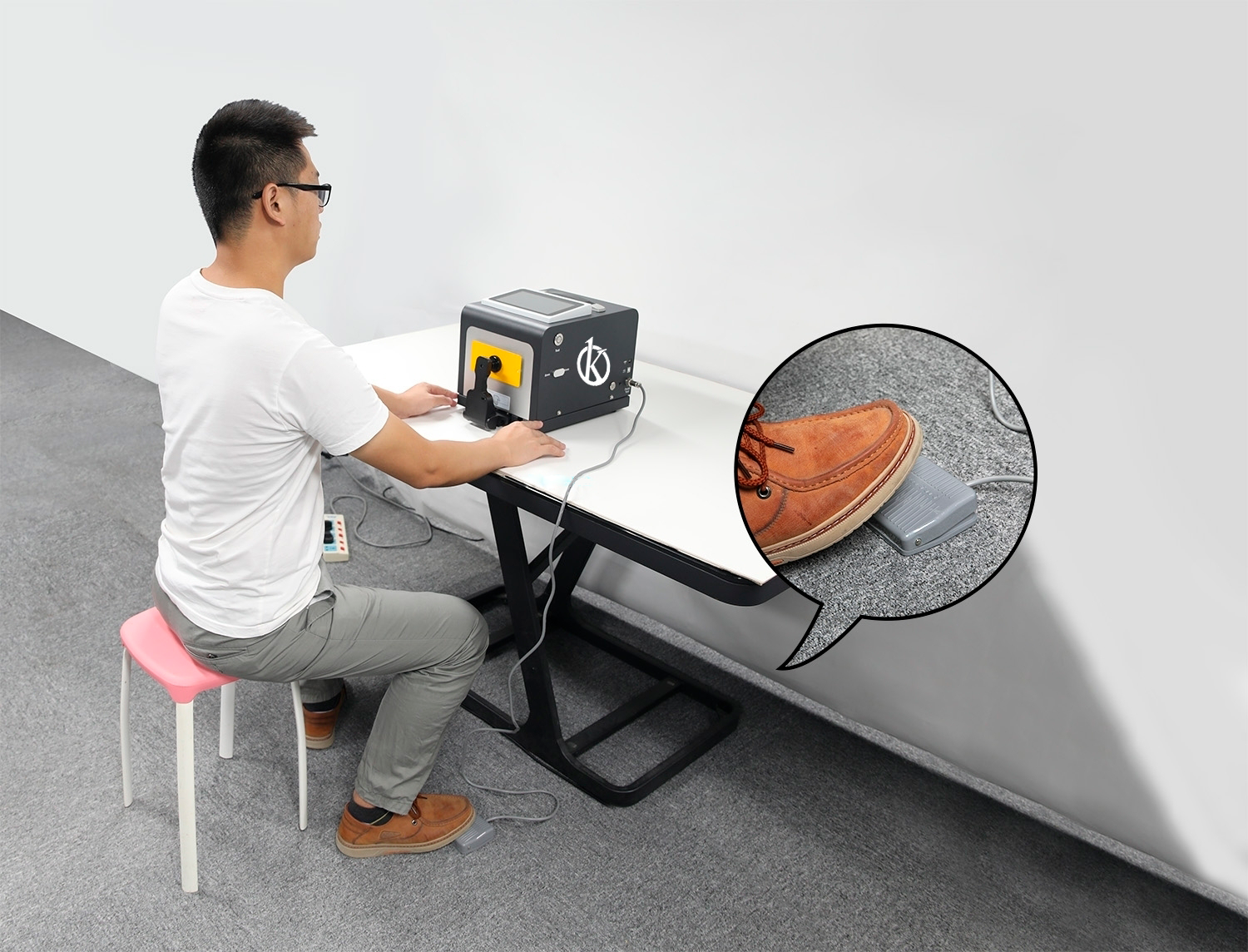

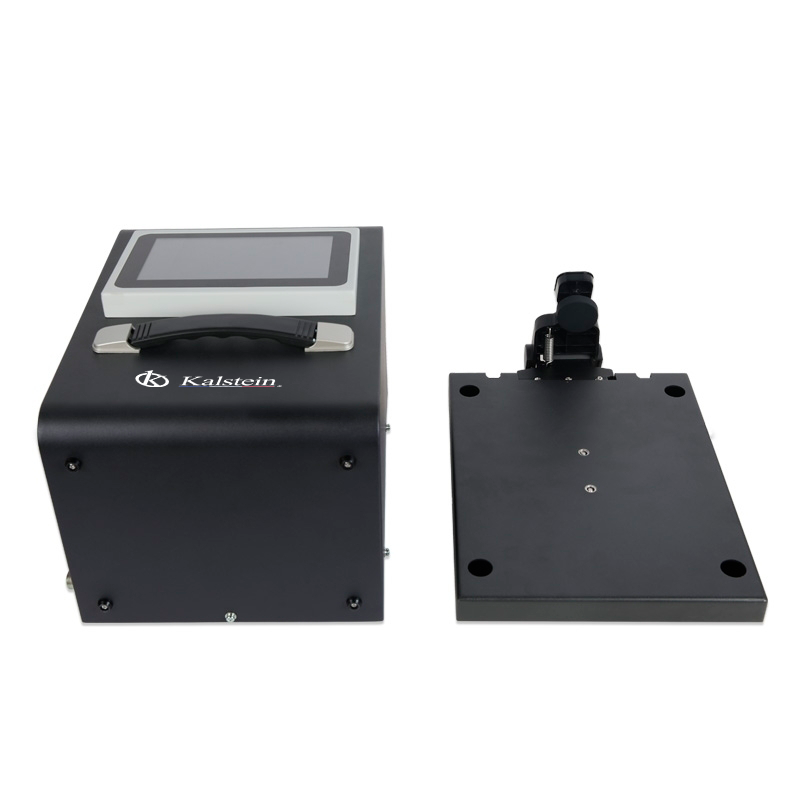

Optional Accessory Micro Printer, Foot Switch, Rotating Bracket
Notes Technical parameters are only for reference, subject to the actual sale of the product

Additional information

Weight 12 kg
Dimensions 45 × 32 × 35 cm
