Portable Desktop spectrophotometer YR05487
Portable Desktop spectrophotometer YR05487 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

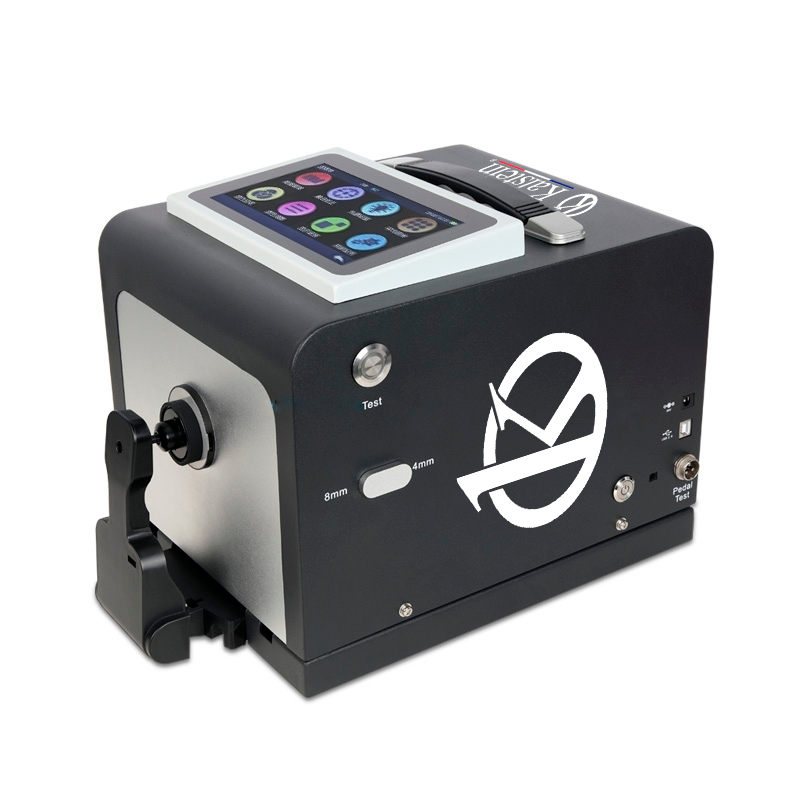

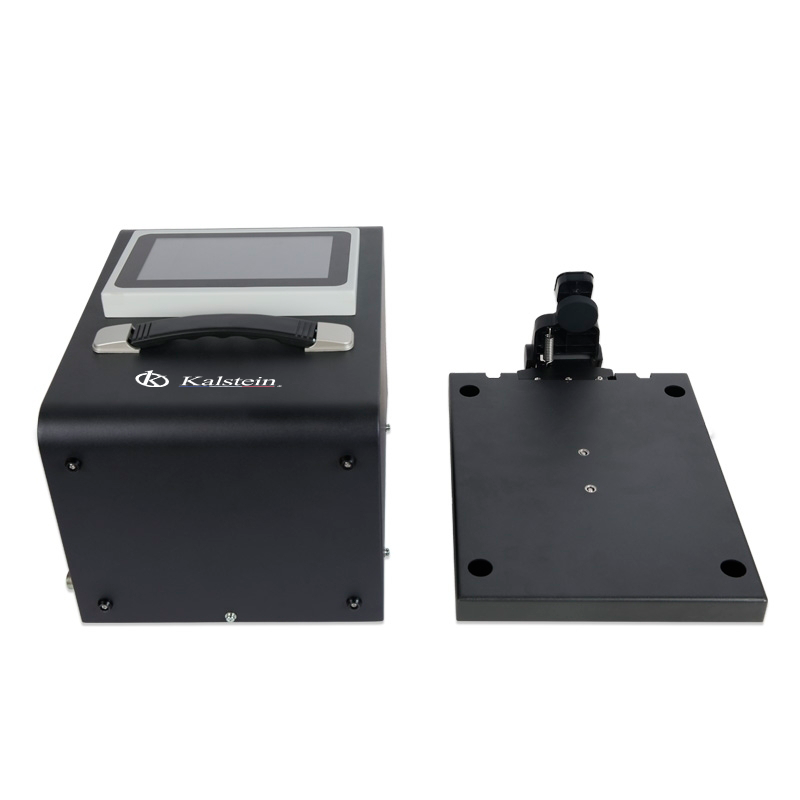

The Portable Desktop Spectrophotometer YR05487 from Kalstein is a groundbreaking device designed for meticulous color measurement across diverse industries such as textiles, ceramics, plastics, and electronics. Equipped with state-of-the-art technology, it utilizes dual-array silicon photodiode sensors and an imported whiteboard to ensure exceptional accuracy. With customizable apertures and a user-friendly design featuring an integrated positioning camera and 7-inch touchscreen, the YR05487 is perfectly engineered for both horizontal and vertical sample analysis, making it a versatile tool in any high-precision environment.
Market Price
The market price for the YR05487 ranges from $8,900 to $9,600 USD, based on configuration and optional accessories such as a micro printer or rotation stand. Investing in this spectrophotometer enhances precision in color control processes, making it an ideal choice for companies aiming to optimize quality. For a personalized quote, consider using the Kalstein Plus platform, which offers a seamless and reliable purchasing experience.
Frequently Asked Questions
- What are the recommended applications for the YR05487?
This device is perfect for industries requiring precise color control, like textiles, ceramics, and plastics. - Is it PC-compatible?
Yes, the YR05487 comes with compatible color management software for PCs, aiding in comprehensive data management. - How much data can it store?
It can store up to 1,000 standards and 20,000 samples, making it ideal for detailed record-keeping.
Advantages and Disadvantages
The YR05487 stands out with its high precision capabilities and versatile design suitable for large and fluorescent samples. Its USB and Bluetooth 5.0 connectivity ensure swift and secure data transfers. However, its laboratory-focused design might limit its use in smaller workspaces or where extreme precision is not required.
Field Applications
This spectrophotometer is perfect for quality control laboratories where precise color analysis is vital. Its ergonomic design and adaptability to multiple orientations make the YR05487 an asset in varying work conditions. The SCI/SCE function further facilitates fast, detailed measurements, boosting efficiency in industrial settings.
Recommendations
Regular calibration and maintenance are recommended to maximize the YR05487's performance. Keeping the device in a clean, dust-free environment will ensure accurate readings. The full-spectrum LED and ultraviolet light enhance measurement precision under all conditions. Request a quote through the Kalstein Plus platform and discover how the YR05487 can enhance color control processes, elevating precision at each production stage.
Features
- Dual-array silicon photodiode sensors
- Customizable measurement apertures
- Integrated positioning camera
- 7-inch touchscreen display
- USB and Bluetooth 5.0 connectivity
Technical Specifications
| Model | YR05487 |
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source | |
| Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | Customized aperture,good for horizontal or vertical measurement, wider adaptability; |
| Suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; | |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source |
| Spectrophotometric Mode | Flat Grating |
| Sensors | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0~200% |
| Measuring Aperture | Customized single aperture:MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm |
| Specular Component | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*00 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925,ASTM 313), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity | |
| 8° Glossiness,555 tone classification | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,F2(CWF),F7(DLF), F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.025 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating |
| Dimension | L*W*H=370X240X260mm |
| Weight | About 7.8kg |
| Battery | AC 24V, 3A Power adapter power supply |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, trigger switch interface |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Aperture (Optional Aperture) |

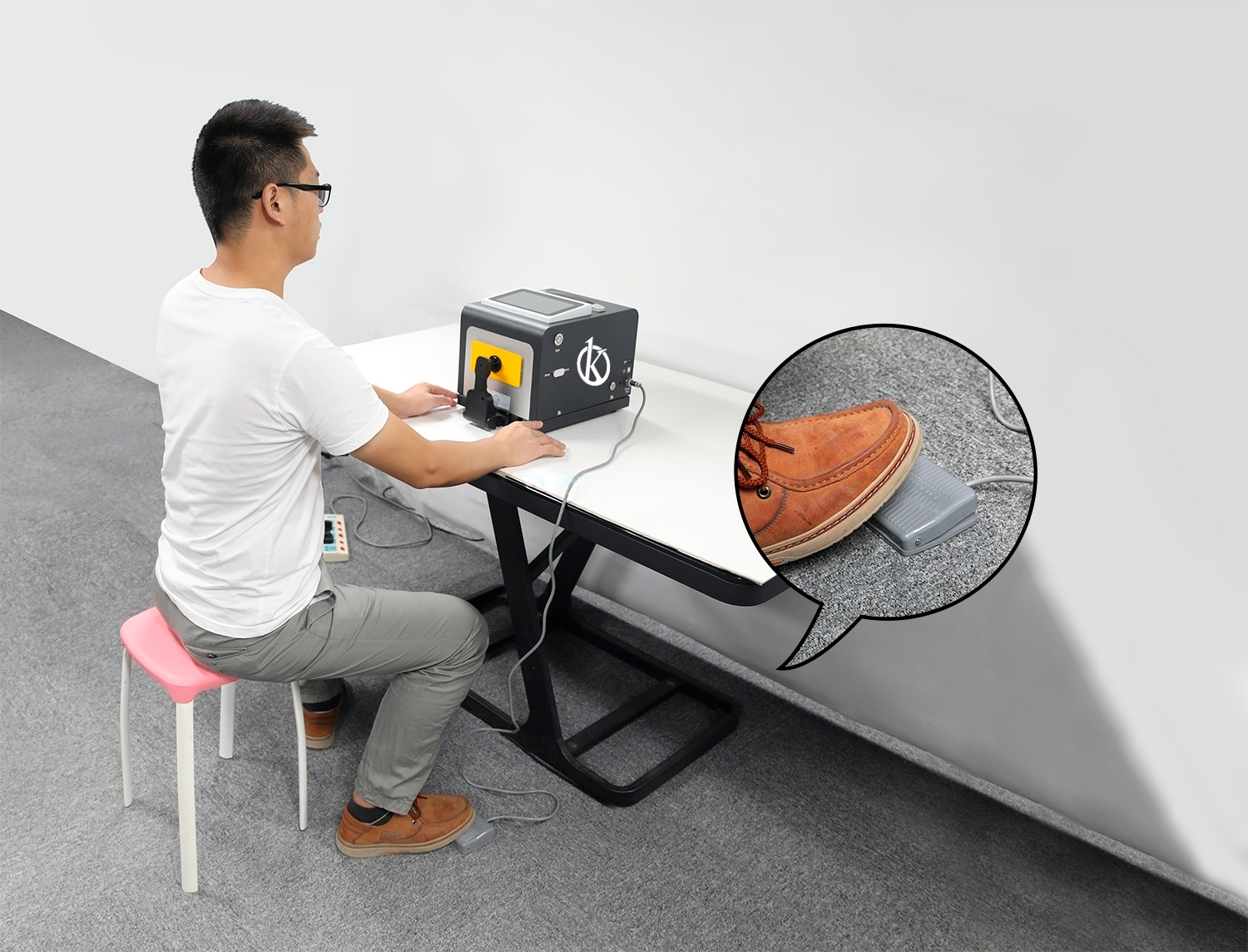

| Optional Accessory | Micro Printer, Foot Switch, Rotating Bracket |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product |
Technical specifications
| Dimensions | L 45 × W 32 × H 35 cm |
|---|---|
| Weight | 12 kg |
| Manufacturer | Kalstein |
