Surgical Navigation Systems YR02143

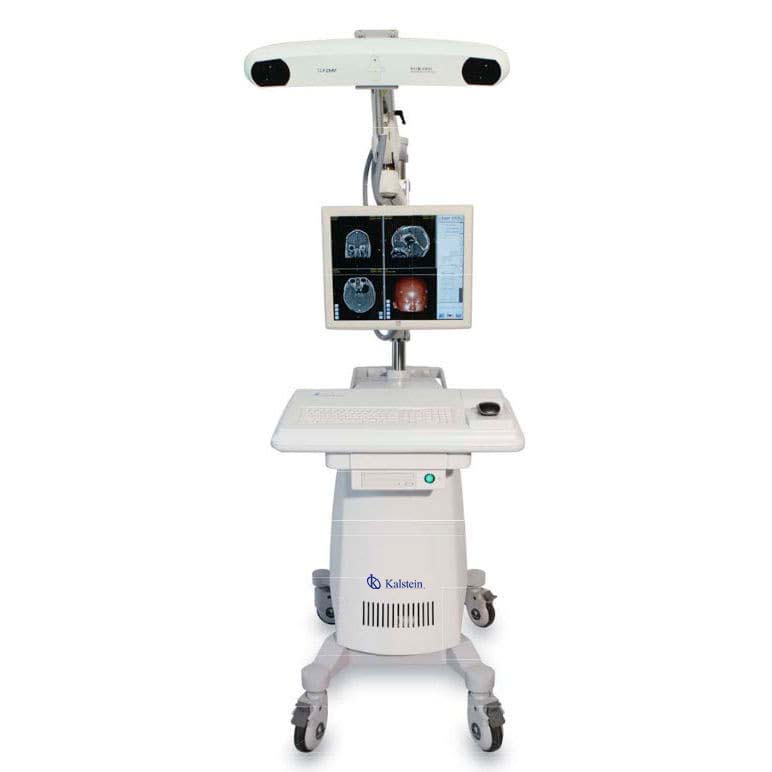

The Surgical Navigation Systems YR02143 is a cutting-edge computer-aided electromagnetic navigation system, renowned for its application in surgical visualization, planning, and guidance. It plays a crucial role in minimizing iatrogenic trauma to surrounding brain tissue and reducing the risk of complications in cranial procedures. Compatible with tomographic images in DICOM format captured via CT, C-arm, MRI, or fMRI, the YR02143 ensures precision with its advanced optical tracking technology. This system allows for detailed 3D modeling and simulation of anatomical structures, assisting surgeons in planning their approach. With real-time tracking capabilities, the system offers exceptional precision and reliability, maintaining a 1.0mm spatial resolution. The integrated navigation probe and sophisticated optical measurement tools enable surgeons to accurately assess lesion sizes and positions, ensuring a scientific surgical plan.

Market Pricing

The pricing for the YR02143 Surgical Navigation System generally varies based on specific configurations and integrated technologies. In the current market, systems of this caliber can range from $100,000 to $200,000, depending on additional features such as software modules and calibration tools. For precise pricing tailored to your specific needs, we encourage you to generate a quote using our Kalstein Plus platform.

Frequently Asked Questions

Q: What types of surgeries can the YR02143 be used for? A: The YR02143 is suitable for all ENT and neurological surgeries, particularly beneficial for deep intracranial lesions, low volume intracranial lesions, and minimally invasive surgeries. Q: What imaging modalities are supported? A: It supports DICOM images captured with CT, C-arm, MRI, and fMRI scanners, providing great flexibility and versatility. Q: How does the system handle unexpected power outages? A: The system is designed to automatically save all patient image data and registration information, allowing continuance of the navigation process, thereby minimizing downtime and maintaining surgical momentum.

Advantages and Disadvantages

The YR02143 Navigation System offers significant advantages, including high precision, real-time 3D tracking, and surgical convenience through advanced simulation technologies. However, the initial investment can be a consideration for smaller facilities, and training may be required to fully utilize all features.

Product Use in the Field

In practical scenarios, the YR02143 is utilized by placing markers on surgical tools, which are tracked throughout the procedure to ensure accurate navigation and lesion identification. This system supports a range of surgical environments, including operating rooms where complex cranial surgeries are performed.

Recommendations

To maximize the performance of the YR02143, it is advisable to regularly calibrate the optical and electromagnetic components and ensure all software updates are promptly installed. Encouraging thorough training sessions for surgical staff will enhance the utilization and efficacy of the system.

Key Features

- Real-time 3D optical tracking system - Compatible with multiple imaging modalities in DICOM format - Four distinct navigation modes for process oversight - Intelligent calibration software for anatomical changes - Mobile usage with touch monitor or surgeon mouse

Technical Specifications

Model	YR02143
Component	Amount		Description
Optical tracking system
NDI tracking system	1 set		Track 3D position and orientation of active or passive markers attached to surgical tools
Image management workstation
Computer system	1 set		For 2D image fusion and 3D reconstruction, navigation system
Touch monitor	1 piece		19 *, 1280 x 1024 resolution, medical and healthcare grade
Software package	1 set		Core set (image fusion, surgical planning and navigation, data management)
Software version 1	1 piece		Diffusion-tensor-images navigation module
Software version 2	1 piece		Needle-Aspiration-Biospy navigation module
Mobile car
Support trolley with 4 wheels	1 piece		To support the optical tracking system and image management workstation
Surgical tools
Navigation probe	2 pieces		To help the optical measurement system track movement
Microscope probe	1 piece		To help the optical measurement system track movement
Active marker	6 pieces		To help quickly recognize critical anatomical structures.
Passive reflective sphere	10 pieces		To reflect the infrared laser for cameras (in the optical tracking system) to capture
Framework	2 pieces		To locate passive reflective sphere with 4 pins
Articulated arm	1 piece		To hold the frame of reference
Clamp adapter	2 pieces		For the adaptation of another instrument (such as the brain needle during navigation)
Foot-swicht	1 piece		To help register and navigate
Touchmonitor specification
Case / bezel color	Beige	Mini VGA D-sub 15-pin; DVI-D	Mini VGA D-sub 15-pin; DVI-D
Display	Sixe: 19.0 ”diagonal, active matrix TFT	Horizontal: 31.5-80 kHz	Horizontal: 31.5-80 kHz
	Aspect ratio: 5; 4	Vertical: 56.3-75 Hz	Vertical: 56.3-75 Hz
Useful display area	Horizontal: 14.82 "(376.32 mm)	Type: 100-240 VAC, 50-60 Hz	Type: 100-240 VAC, 50-60 Hz
	Vertical: 11.85 "(301.06 mm)	Internal DC input power supply	Internal DC input power supply
Monitor dimensions	Width: 429mm (16.9 ")	DC input voltage (line): 12V 3.6V	DC input voltage (line): 12V 3.6V
	Height (including stand): 15.21 "(386 mm)	48 W max.	48 W max.
	Depth (inc. Base)	Operating; 0 ° C to 40 ° C	Operating; 0 ° C to 40 ° C
Native resolution (optional)	1280 x 1024 @ 60/70/75 Hz	Storage: -20 ° C to 60 ° C	Storage: -20 ° C to 60 ° C
Other supported resolutions	1280 x 960 / 1,024 x 768 in Hz	Operating: 20% -80%	Operating: 20% -80%
Colors	16.7 million	Storage: 10% -90%	Storage: 10% -90%
Brightness	LCD panel: 300 cd / m2	Actual: 17.66 lbs. (8 kg)	Actual: 17.66 lbs. (8 kg)
	With AccuTouch: 246 cd / m2	Shipping: 25.10 lbs (11.84)	Shipping: 25.10 lbs (11.84)
	With IntellTouch: 276 cd / m2	3 years	3 years
Response time	20 msec (typical)	Typical 40,000 hours at half brightness	Typical 40,000 hours at half brightness
Vision angle	Horizontal (left / right): 89 ° / 89 °	MTBF; 50,000 hours demonstrated	MTBF; 50,000 hours demonstrated
(Typical, from the center)	Vertical (up / down): 89 ° / 89 °	UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark	UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark
Contrast ratio	1300: 1 (typical)	Two watt / channel speakers located in the display head	Two watt / channel speakers located in the display head
Input video format	Analog: (no video card needed)	OSD locks for user and power controls	OSD locks for user and power controls
Input sync format	Separate horizontal and vertical	OSD extras include volume, treble, bass, balance	OSD extras include volume, treble, bass, balance
	Synchronization, compound synchronization and	OSD Language (English, Chinese, Spanish, French)	OSD Language (English, Chinese, Spanish, French)
	Synchronization in green	Safety lock receptacle	Safety lock receptacle
