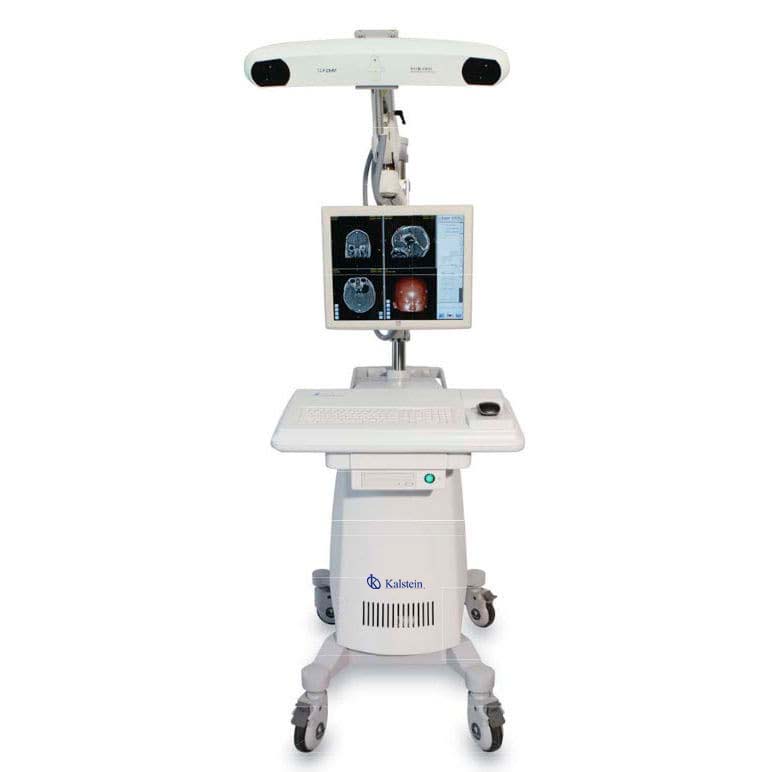

Surgical Navigation Systems YR02143

Surgical Navigation Systems YR02143 is an advanced computer-aided electromagnetic navigation system designed to enhance surgical precision. This innovative system is widely used in cranial procedures like neurology and ENT surgery to minimize iatrogenic trauma and reduce the risk of surgical complications. It supports the application of tomographic images in DICOM captured with CT/C-arm/MRI/fMRI, providing exceptional precision and reliability with a 1.0mm spatial resolution. Its 3D modeling technology simulates anatomical structures such as skin, skull, and brain tissue, allowing surgeons to accurately quantify and plan their approach.

Market Price

The Surgical Navigation Systems YR02143 is positioned in the premium segment of the market due to its state-of-the-art technology and extensive functionalities. Prices typically range from $100,000 to $150,000, varying based on configuration and additional features. To obtain an accurate quote, consider using Kalstein Plus for a detailed, automated quotation.

Frequently Asked Questions

What procedures are suitable for the YR02143 navigation system? The system is ideal for ENT and neurological surgeries, particularly those involving deep or minimally invasive intracranial lesions. Can I retrieve data if there's a power outage during surgery? Yes, the system automatically saves all patient image data and registration information for quick recovery.

Advantages and Disadvantages

The Surgical Navigation Systems YR02143 offers significant advantages, including precise location tracking of surgical tools and real-time 3D monitoring. It enhances surgical accuracy, reducing trauma and potential complications. However, its complexity may require comprehensive training, and the investment cost is substantial, demanding budget considerations.

Product Use in the Field

In practical applications, the YR02143 system allows for seamless integration into surgical settings. Surgeons benefit from its real-time tracking capabilities and reliable imaging systems, facilitating advanced planning and execution of surgical procedures. The system's intelligent software continuously compensates for anatomical changes, ensuring consistent accuracy throughout the surgery.

Recommendations

To maximize the utility of the YR02143, it is recommended to ensure all team members receive proper training. Regular software updates and maintenance checks will preserve optimal performance. Customizing the system settings to match your specific surgical needs can also enhance outcomes. Leverage Kalstein Plus to explore potential configurations and obtain a quote tailored to your requirements.

Features

• Advanced optical tracking system with 1.0mm spatial resolution.
• Supports DICOM images captured with CT/C-arm/MRI/fMRI.
• Integrated navigation probe for precise lesion measurement and surgical planning.
• Four navigation modes for comprehensive procedure monitoring.
• Automatic image data saving for quick recovery.
• Operable via surgeon mouse or touch monitor on mobile cart or ceiling suspension arm.

Technical Specifications

Model	YR02143
Component	Amount		Description
Optical tracking system
NDI tracking system	1 set		Track 3D position and orientation of active or passive markers attached to surgical tools
Image management workstation
Computer system	1 set		For 2D image fusion and 3D reconstruction, navigation system
Touch monitor	1 piece		19 *, 1280 x 1024 resolution, medical and healthcare grade
Software package	1 set		Core set (image fusion, surgical planning and navigation, data management)
Software version 1	1 piece		Diffusion-tensor-images navigation module
Software version 2	1 piece		Needle-Aspiration-Biospy navigation module
Mobile car
Support trolley with 4 wheels	1 piece		To support the optical tracking system and image management workstation
Surgical tools
Navigation probe	2 pieces		To help the optical measurement system track movement
Microscope probe	1 piece		To help the optical measurement system track movement
Active marker	6 pieces		To help quickly recognize critical anatomical structures.
Passive reflective sphere	10 pieces		To reflect the infrared laser for cameras (in the optical tracking system) to capture
Framework	2 pieces		To locate passive reflective sphere with 4 pins
Articulated arm	1 piece		To hold the frame of reference
Clamp adapter	2 pieces		For the adaptation of another instrument (such as the brain needle during navigation)
Foot-swicht	1 piece		To help register and navigate
Touchmonitor specification
Case / bezel color	Beige	Mini VGA D-sub 15-pin; DVI-D	Mini VGA D-sub 15-pin; DVI-D
Display	Sixe: 19.0 ”diagonal, active matrix TFT	Horizontal: 31.5-80 kHz	Horizontal: 31.5-80 kHz
	Aspect ratio: 5; 4	Vertical: 56.3-75 Hz	Vertical: 56.3-75 Hz
Useful display area	Horizontal: 14.82 "(376.32 mm)	Type: 100-240 VAC, 50-60 Hz	Type: 100-240 VAC, 50-60 Hz
	Vertical: 11.85 "(301.06 mm)	Internal DC input power supply	Internal DC input power supply
Monitor dimensions	Width: 429mm (16.9 ")	DC input voltage (line): 12V 3.6V	DC input voltage (line): 12V 3.6V
	Height (including stand): 15.21 "(386 mm)	48 W max.	48 W max.
	Depth (inc. Base)	Operating; 0 ° C to 40 ° C	Operating; 0 ° C to 40 ° C
Native resolution (optional)	1280 x 1024 @ 60/70/75 Hz	Storage: -20 ° C to 60 ° C	Storage: -20 ° C to 60 ° C
Other supported resolutions	1280 x 960 / 1,024 x 768 in Hz	Operating: 20% -80%	Operating: 20% -80%
Colors	16.7 million	Storage: 10% -90%	Storage: 10% -90%
Brightness	LCD panel: 300 cd / m2	Actual: 17.66 lbs. (8 kg)	Actual: 17.66 lbs. (8 kg)
	With AccuTouch: 246 cd / m2	Shipping: 25.10 lbs (11.84)	Shipping: 25.10 lbs (11.84)
	With IntellTouch: 276 cd / m2	3 years	3 years
Response time	20 msec (typical)	Typical 40,000 hours at half brightness	Typical 40,000 hours at half brightness
Vision angle	Horizontal (left / right): 89 ° / 89 °	MTBF; 50,000 hours demonstrated	MTBF; 50,000 hours demonstrated
(Typical, from the center)	Vertical (up / down): 89 ° / 89 °	UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark	UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark
Contrast ratio	1300: 1 (typical)	Two watt / channel speakers located in the display head	Two watt / channel speakers located in the display head
Input video format	Analog: (no video card needed)	OSD locks for user and power controls	OSD locks for user and power controls
Input sync format	Separate horizontal and vertical	OSD extras include volume, treble, bass, balance	OSD extras include volume, treble, bass, balance
	Synchronization, compound synchronization and	OSD Language (English, Chinese, Spanish, French)	OSD Language (English, Chinese, Spanish, French)
	Synchronization in green	Safety lock receptacle	Safety lock receptacle
