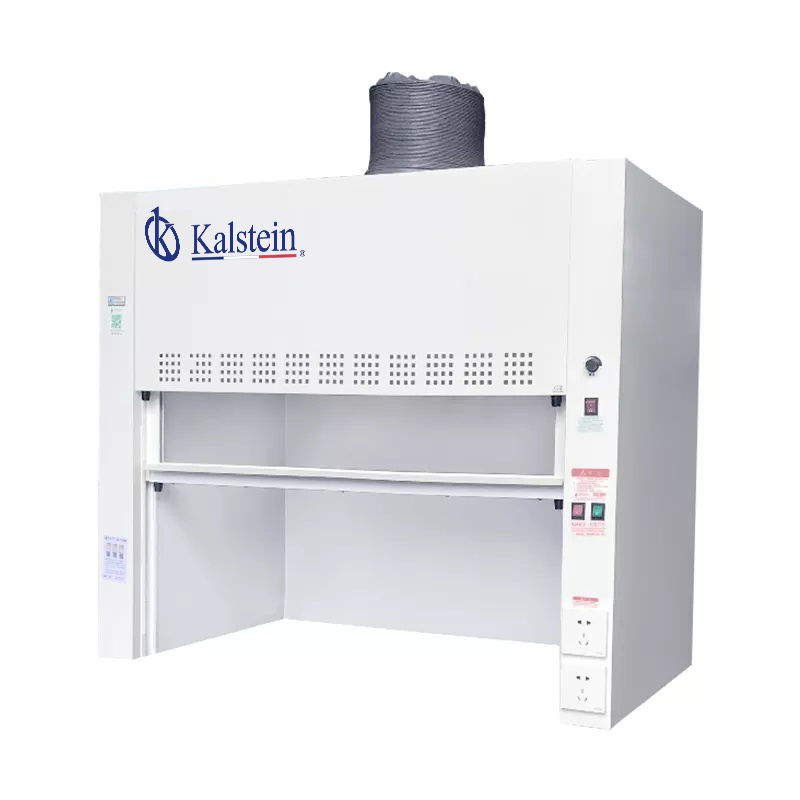

Epoxy-Coated Steel Basic Chemical Laboratory Fume Hood YR05808 // YR05812

ManufacturerKalstein

$633,60$867,24

ManufacturerKalstein

Product Description

  • Front Panel
  • Liner and guide baffles 5mm thick anti melamine board
  • Window: 5mm thick tempered glass
  • Laboratory Dedicated PP cup
  • Built-in drain pipe
  • Lower Side Plate
  • Lower Back Plate
  • Built In Axial Fan, Air Collector and anti-corrosion hose
  • With wind Regulator
  • Upper side panel (1.2mm thcik galvanized steel plate. epoxy sprayed outside)
  • Built in LED tube
  • Fan and lamp Switch
  • Multifunctional splash proof socket
  • 12.7m corrosion proof solid core, physical and chemical board, mesa
  • Door frames and door panels
Technical Specifications
Model YR05808 YR05809 YR05810 YR05811 YR05812

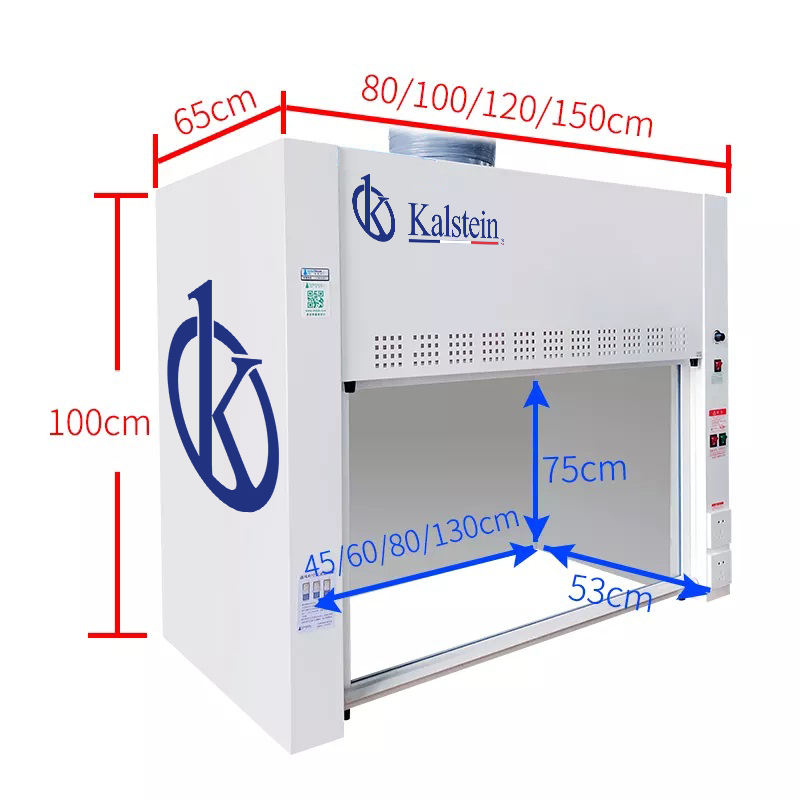

External Size

(W*D*H) (mm)

650*650*

1000

800*650*

1000

1000*650*

1000

1000*650*

1000

1500*650*

1000

Internal Size

(W*D*H) (mm)

450*600*

750

600*600*

750

800*600*

750

1000*600*

750

1300*600*

750

Work Surface

 Height

800mm
Max Opening of

window

750mm
Air Velocity/Exhaust

air volume

0.4-0.6m/s,800-1000m³/h
Noise  ≤60dB
LED Lamp  10W*1
Blower  Built-in axial flow blower;Speed adjustable.
Front Window  Manual,5mm toughened glass,height adjustable.
Power Supply  AC220V±10%,50/60Hz;
Consumption  100W
Material Main Body 1.2mm thickness cold-rolled steel with epoxy resin powder coating.
Inner Side 5mm thickness compact, resistant to strong acid and alkali.
Work Table Chemical resistant phenolic resin, thickness 12.7mm.
Standard

 Accessory

LED lamp,Built-in axial flow blower with speed adjustable.
Waterproof socket*2
3 meter PP duct,Diameter:250mm
Optional

Accessory

epoxy resin board or ceramic board, Water tap,Gas tap,Water Sink,
Outer centrifugal blower(300W),resistant to strong acid,alkali.
Gross Weight   110 110 115 120 130

Additional Information

Weight N/A
Model

YR05808, YR05809, YR05810, YR05811, YR05812
