Description

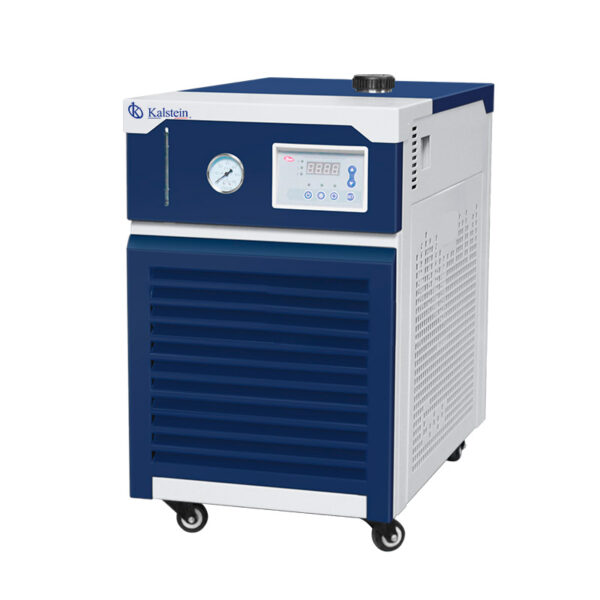

YR Recirculating Chiller is usually used to provide constant low temperature condition for inspections, chemical, biological and physical experiments which need to be carried on under low temperature, mainly used for medicine and health care, food process, chemical industry and teaching in colleges and research institutes.
Advantages
- Applications in Chemistry and Biology, like biological fermenter, chemical synthetic vessel etc.
- Equipped with world famous brand compressor, ensure low noise, high reliability, stable performance and long life span.
- Completely closed circulation system prevents bath fluid from evaporation or contamination.
- Built-in filters in circulation hose avoids possible blockage.
- Environmental friendly CFC-free refrigerant meets international standards.
- Compact design with good-looking appearance
- Designed with liquid level monitor, which make it easier to check the bath fluid left in the tank.
- Pressure of bath fluid can be measured by the pressure gauge which is fixed near the fluid outlet.
- Variable models to meet customer’s different requirements.
- Removable side panels for quick and easy cleaning and maintenance.
- Eco-friendly refrigerant meets international environmental protection standard; Intelligent control system will prevent compressor from overloading which will extend its service life; closed circulation system reduced evaporation of refrigerant.
Model YR02293 YR02294 YR02295 YR02296 Temperature Range (°C) -10~25 Temperature Stability (°C) ±2 Cooling Capacity at 15 Degree (W) 1000 2000 3000 6000 Flow 30L/Min Under
1bar
30L/Min Under
1bar
30L/Min Under
1bar
40L/Min Under
1.5bar
Bath Volume 12 18 25 50 Refrigerant R134A Power Supply Single Phase 220V 50HZ Dimension LxWxH (mm) 675×426×695 675×456×775 740×490×830 1020×635×1030
