Description

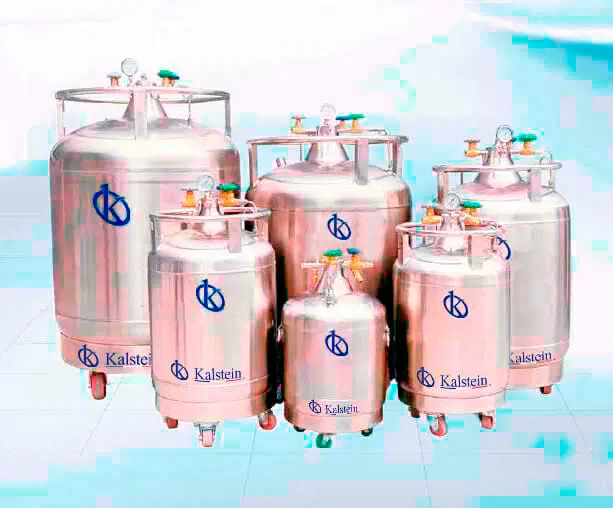

The Biomedical Liquid Nitrogen Storage Solutions YR05423 // YR05437 series offers advanced and innovative technologies for efficient LN2 storage and supply. Its unique design leverages the pressure generated by the vaporization of a small quantity of liquid nitrogen to seamlessly transfer LN2 to other containers. With storage capacities ranging from 5 to 500 liters, these solutions cater to diverse needs, ensuring safety and reliability through stainless steel construction and comprehensive security mechanisms.
Market Price
The pricing for Biomedical Liquid Nitrogen Storage Solutions generally ranges from around $11,000 to $11,900 USD. This competitive pricing reflects the cutting-edge technology and robust build quality offered by these systems.
Frequently Asked Questions
- What is the warranty period for these products? The products come with a 5-year vacuum warranty, ensuring peace of mind for users.
- What kind of environments can these storage solutions withstand? Thanks to their stainless steel construction, they are designed to endure harsh environments, ensuring long-lasting durability.
- What safety mechanisms are included? Each model is equipped with safety valves, rotary ring construction, and labeled valves for easy identification, providing a high level of safety and convenience.
Advantages and Disadvantages
The primary advantages of the Biomedical Liquid Nitrogen Storage Solutions include their durable stainless steel structure that reduces the evaporation loss rate, and the variety of accessories provided, such as pressure gauges and relief valves. However, the complexity of handling LN2 and the initial investment cost may be considerations for some users.
Product Use in the Field
In real-world applications, these solutions are utilized in laboratories and medical facilities to safely store and transport liquid nitrogen. Their efficient design allows for the rapid disbursement of LN2, essential for cryogenic applications and research purposes.
Recommendations
To maximize the benefits of Biomedical Liquid Nitrogen Storage Solutions, regular maintenance and adherence to safety protocols are recommended. Utilize the labeled valves for streamlined operations and ensure all safety features are tested periodically. For more details or to obtain a quotation, consider exploring the Kalstein Plus platform for automated quotes.
Features
- 5-year vacuum warranty
- Various capacities from 5 to 500 liters
- Robust stainless steel construction
- Integral safety mechanisms
- Labelled and safety valves for easy use
- Low evaporation loss rate compared to traditional tanks
Technical Specifications
| Model | YR05423 | YR05424 | YR05425 | YR05426 | YR05427 | YR05428 | YR05429 | YR05430 |
| Performance | ||||||||
| LN volume (L) | 5 | 15 | 30 | 50 | 100 | 150 | 200 | 300 |
| Static Evaporation (L/Day) | 0.15 | 0.38 | 0.75 | 1 | 1.3 | 1.95 | 2.4 | 3.3 |
| LN output (l/min) | 2 | 2 | 3 | 3 | 4 | 6 | 8 | 8 |
| Dimensions | ||||||||
| Height (mm) | 510 | 750 | 879 | 991 | 1185 | 1188 | 1265 | 1459 |
| Outer diameter (mm) | 329 | 404 | 454 | 506 | 606 | 706 | 758 | 857 |
| Curb weight (kg) | 15 | 23 | 32 | 54 | 75 | 102 | 130 | 202 |
| Complete weight (kg) | 19.1 | 35.3 | 56.6 | 95 | 157 | 225 | 296 | 448 |
| Shipping weight (kg) | 28 | 34 | 47 | 63 | 98 | 132 | 164 | 232 |
| Pressure parameters (MPA) | 1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Pressure gauge range 0~0.25 |
1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Gauge range 0-0.25, 6. Rupture disc bursting pressure 0.47 |
||||||
| Model | YR05431 | YR05432 | YR05433 | YR05434 | YR05435/36 | YR05437 | ||
| Performance | ||||||||
| LN volume (L) | 500 | 100 | 200 | 240 | 300 | 500 | ||
| Static Evaporation (L/Day) | 5.5 | 1.3 | 2.4 | 2.9 | 3.3 | 5.5 | ||
| LN output (l/min) | 10 | 4 | 8 | 8 | 8 | 10 | ||
| Dimensions | ||||||||
| Height (mm) | 1576 | 1185 | 1265 | 1350 | 1459 | 1576 | ||
| Outer diameter (mm) | 1008 | 606 | 758 | 758 | 857 | 1008 | ||
| Curb weight (kg) | 255 | 75 | 130 | 148 | 202 | 255 | ||
| Complete weight (kg) | 665 | 157 | 296 | 350 | 448 | 665 | ||
| Shipping weight (kg) | 324 | 98 | 164 | 177 | 232 | 324 | ||
| Pressure parameters (MPA) | 1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Gauge range 0-0.25, 6. Rupture disc bursting pressure 0.47 |
1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Pressure gauge range 0~0.25 |
1. Standard working pressure 0.05, 2. Maximum working pressure 0.09, 3. First stage safety valve relief pressure 0.099, 4. Second stage safety valve release pressure 0.15, 5. Gauge range 0-0.25, 6. Rupture disc bursting pressure 0.47 |
|||||
