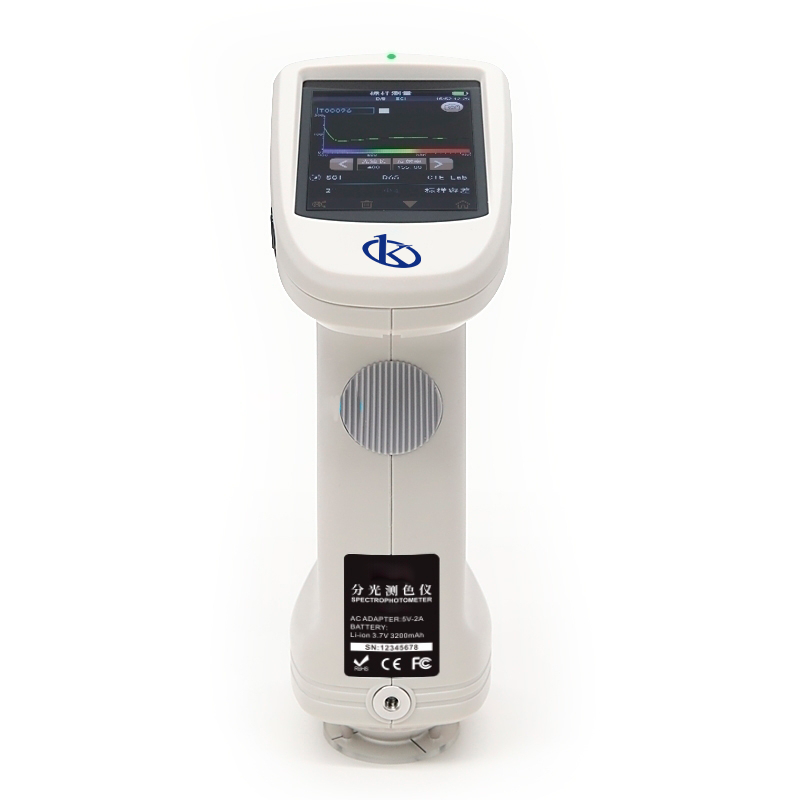

Grating Spectrophotometer YR05494

ManufacturerKalstein

Description

The Grating Spectrophotometer YR05494 is a sophisticated and precise tool designed by Kalstein for color management across industries such as electronics, plastics, textiles, automotive, cosmetics, and food. Equipped with three measurement apertures (φ8 mm, φ4 mm, 1×3 mm), it offers superior flexibility in analyzing samples of various sizes. The YR05494 employs high-precision 1000-line grating technology, a 40-group silicon photodiode array sensor, and a full-spectrum LED light source, ensuring stable and accurate color measurements within the visible spectrum (400-700 nm). Its dual optical structure allows for measurements in both SCI and SCE modes, making it ideal for detailed quality control in laboratories and production lines.

Market Price

The YR05494 is available on the market in a price range from approximately $7,000 to $7,800 USD, contingent on configurations and optional accessories. This spectrophotometer represents a strategic investment for industries that require high precision in color quality control within their production processes. To get a personalized quote or instantly generate an automatic quote, access the Kalstein Plus platform and enjoy an expedited and convenient purchasing process.

Frequently Asked Questions

  • What applications is the YR05494 ideal for?
    This spectrophotometer is perfect for color control in sectors like plastics, textiles, ceramics, and printing, and is especially suited for analyzing fluorescent samples.
  • Is it compatible with PCs?
    Yes, the YR05494 comes with color management software for PCs, allowing for complete color data management and detailed analysis.
  • What is the storage capacity?
    This model can store up to 1,000 standards and 30,000 samples, making it ideal for precise and organized record-keeping.

Advantages and Disadvantages

The YR05494 boasts numerous advantages, including its outstanding precision with a ΔE*ab standard deviation of 0.02, adaptability to multiple apertures, and compatibility with various color spaces and light sources, all wrapped up in an ergonomic design. Its USB and Bluetooth 4.2 connectivity enable fast data transfer. A potential drawback is its limitation to the visible spectrum (400-700 nm), which may not meet the needs of applications requiring broader spectral ranges.

Field Applications

Commonly used for color quality verification in industries like plastics, textiles, coatings, and ceramics, where color consistency is paramount, the YR05494 is indispensable. Its capability to measure in both SCI and SCE modes, combined with multiple apertures, ensures accurate adaptation to each sample’s characteristics, leading to consistent results in the final product. It is also deployed to verify color coordinates in traffic signage and reflective films, cementing its role as an essential tool in both laboratory and production settings.

Recommendations

For optimal performance of the YR05494, regular calibrations are recommended, and the device should be maintained in a clean, dust-free environment. Its lithium-ion battery allows for up to 6,000 measurements over 8 hours, so regular recharging is advisable. Request a personalized quote or effortlessly generate your own on Kalstein Plus and discover how the YR05494 Grating Spectrophotometer can enhance the precision and efficiency of color control in your industry, refining each step of the production process.

Key Features

  • Three measurement apertures for diverse sample analysis.
  • High precision and stable color measurement in the visible spectrum.
  • Diverse color space and light source compatibility.
  • Dual optical structure for SCI and SCE measurements.
  • Connectivity via USB and Bluetooth 4.2.

Technical Specifications

Model YR05494
Optical Geometry Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle)
SCI (specular component included)/SCE (specular component excluded); Include UV / excluded UV light source
Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Characteristic Double apertures for accurate color analysis and transmission in laboratory
It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Senso Silicon photodiode array (double row 40 groups)
Wavelength Range 400~700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range 0-200%
Measuring Aperture MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm
Specular Component SCI&SCE
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99 Munsell (C/2)
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE (Hunter)
Other Colorimetric Index WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness, 555 tone classification
Observer Angle 2°/10°
Illuminant D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7(DLF), F8, F9, F10(TPL5), F11(TL84), F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.15 (Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement (2-99 times)
Locating Method Camera Locating, stabilizer cross position
Dimension L*W*H=129X76X217mm
Weight Approx 600g
Battery Li-ion battery, 3.7v, 5000mAh, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Displayed Data 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB, Bluetooth 4.2
Data Storage Standard 1000 Pcs, Sample 30000 Pcs
Language Simplified Chinese, English, traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, User Guide, PC Software (Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture
Optional Accessory Micro Printer, Powder Test Box
Notes The specifications are subject to change without notice.

Additional information

Weight 2 kg
Dimensions 28 × 13 × 30 cm
