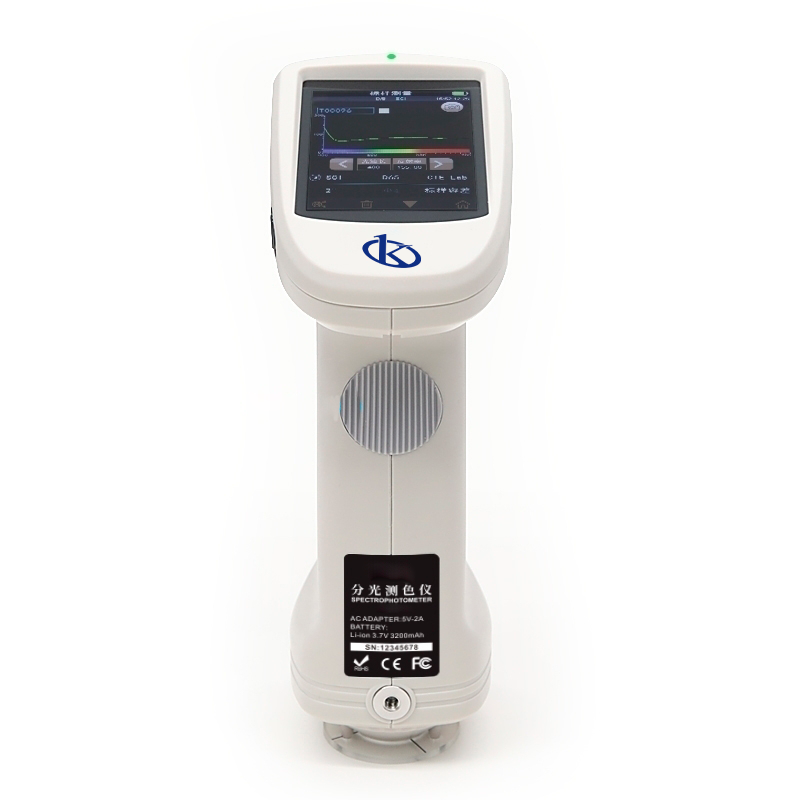

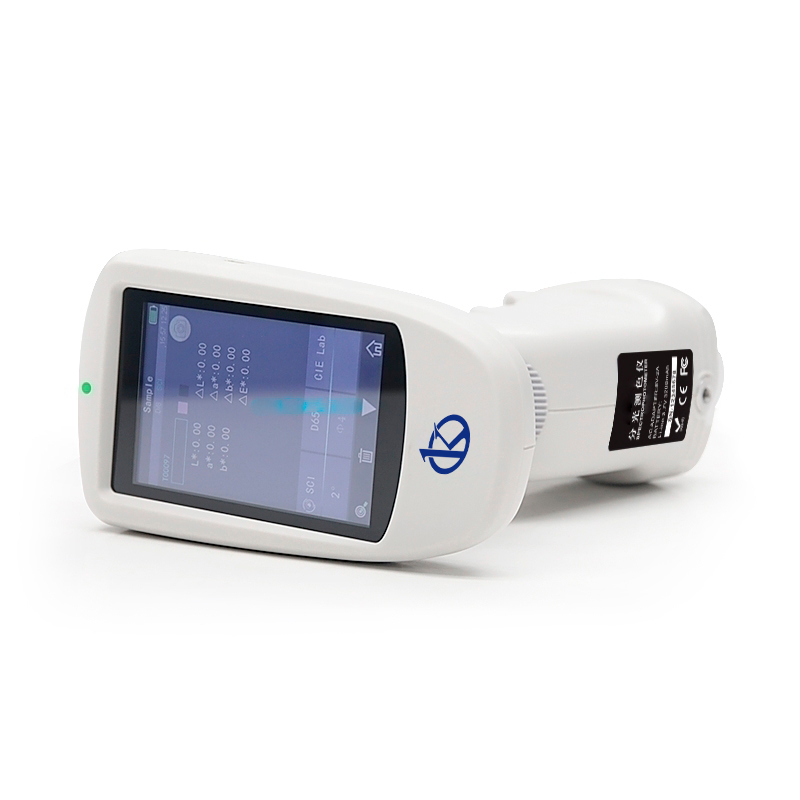

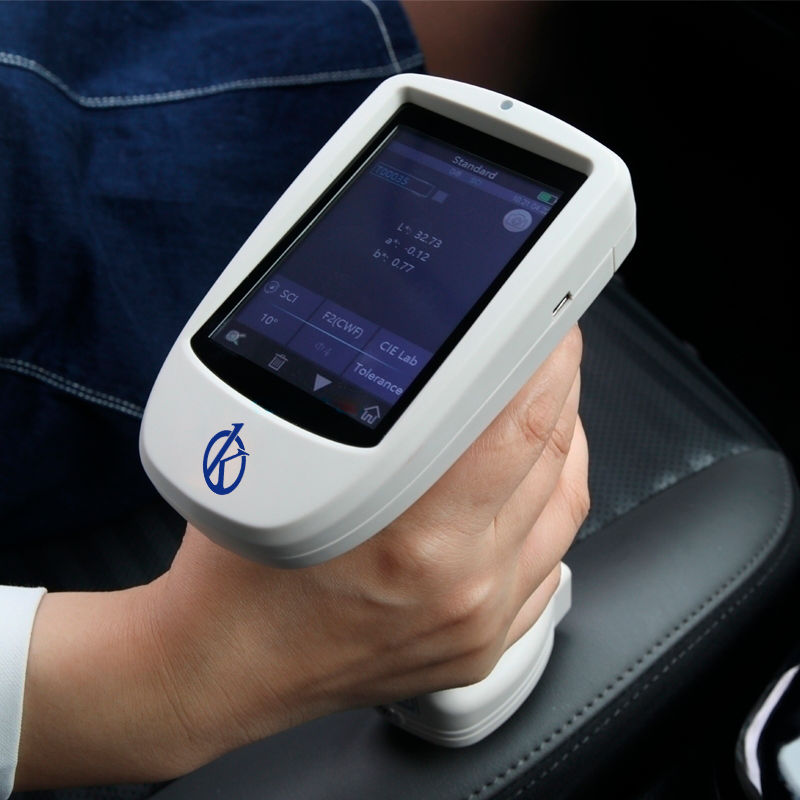

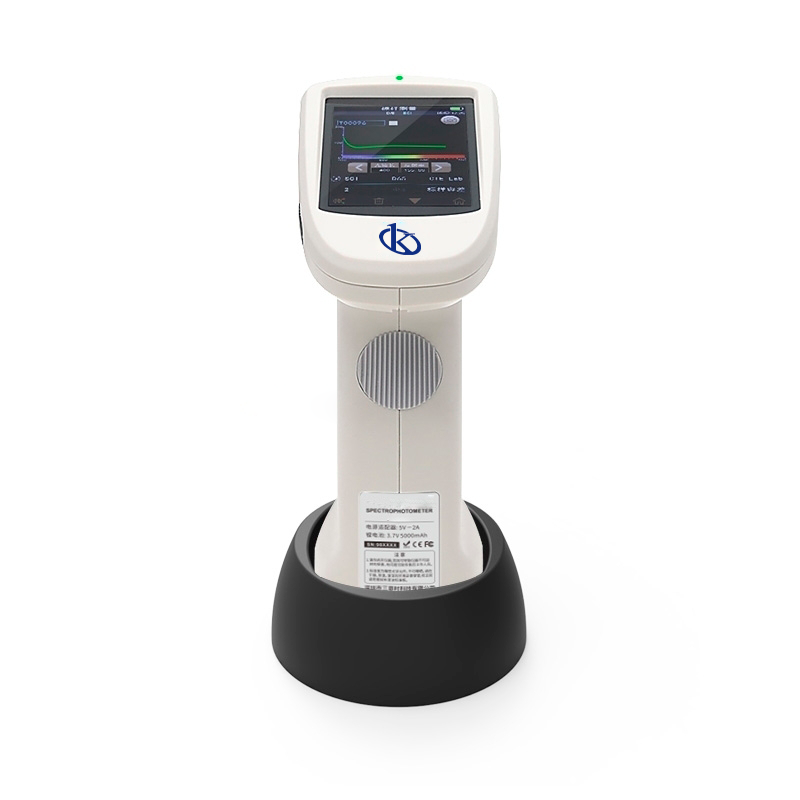

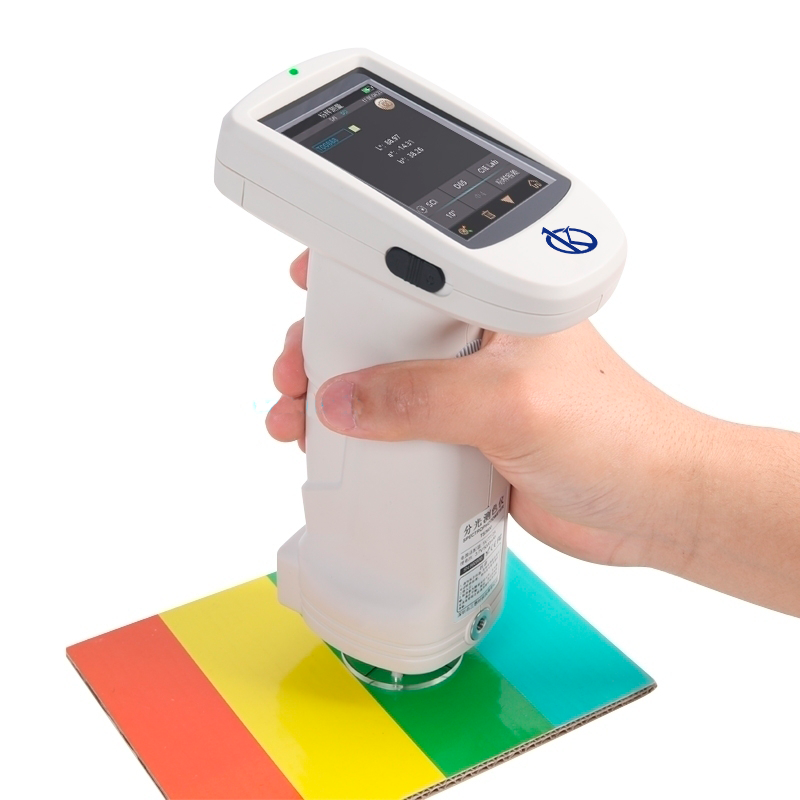

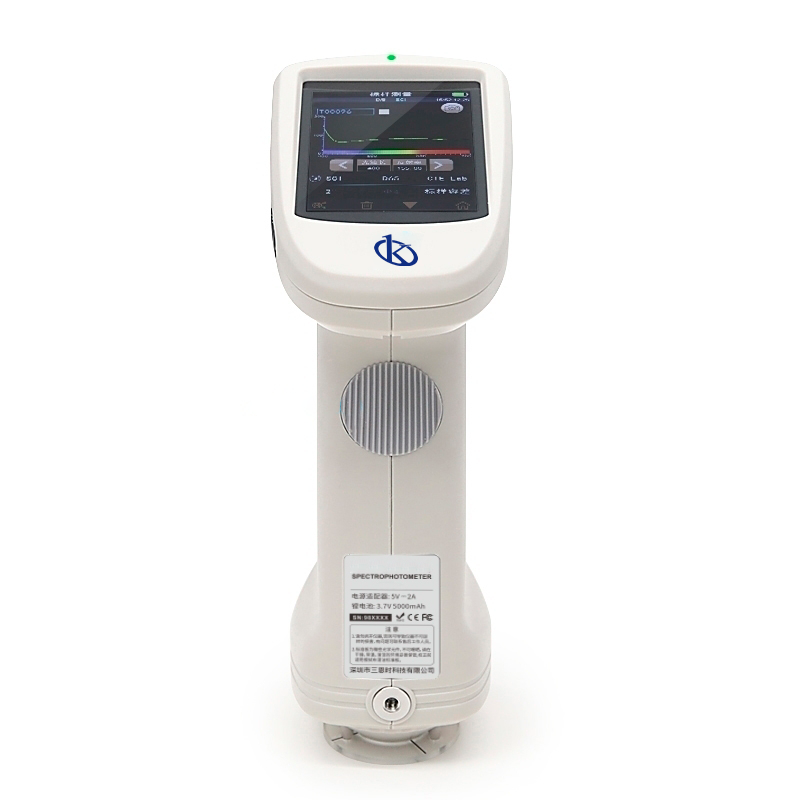

Grating Spectrophotometer YR05495

ManufacturerKalstein

Description

The Grating Spectrophotometer YR05495 by Kalstein is an innovative tool for precise color analysis across various industrial sectors including electronics, plastics, textiles, automotive, cosmetics, and food industries. This device features three distinct measurement apertures (φ8 mm, φ4 mm, 1×3 mm) for adaptable sampling, a 1000-line precision grating technology, and a silicon photodiode array sensor. Together with a full-spectrum LED light source, it ensures accurate color measurement within the visible range (400-700 nm). Its dual optical structure allows for measurements in both SCI and SCE, making it indispensable for quality control in laboratories or production lines.

Market Price

The Grating Spectrophotometer YR05495 is priced within a competitive range, typically between $5,000 and $5,800 USD. This pricing, combined with its extensive features, positions it as a cost-effective solution for businesses aiming to improve their color control efficiency. For a quote tailored to your specific needs, requesting one or generating it automatically via Kalstein Plus ensures a streamlined purchasing process.

Frequently Asked Questions

  • What industries benefit most from the YR05495?
    The spectrophotometer is ideal for color control in plastics, textiles, printing, ceramics, and it excels at measuring fluorescent samples.
  • Is it compatible with PC software?

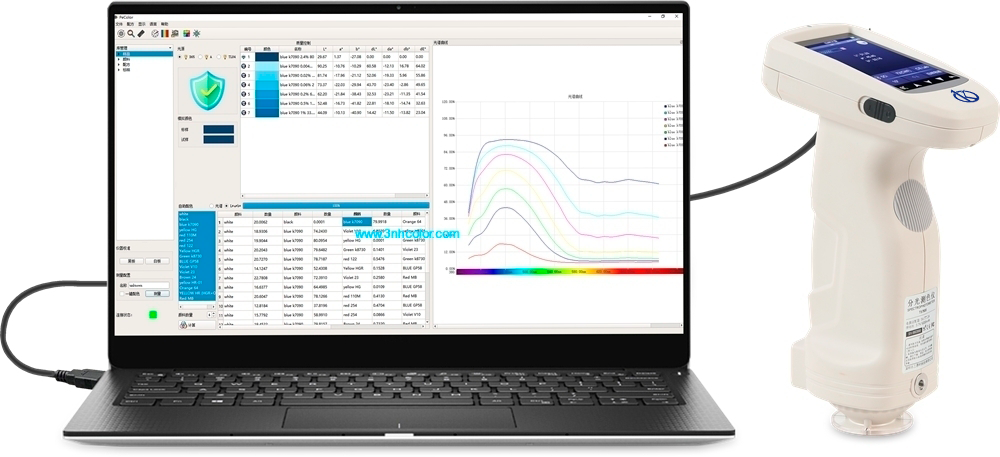

    Yes, the YR05495 connects seamlessly with PC software for comprehensive color data management and analysis.
  • What is the storage capacity?
    The device can store up to 1,000 standards and 20,000 samples, facilitating detailed and organized record-keeping.

Advantages and Disadvantages

The main advantages of the YR05495 include superior precision with a ΔE*ab standard deviation of 0.03, capabilities across various color spaces and light sources, and an ergonomic design that enhances usability. Additionally, its USB connectivity accelerates data transfer. A limitation to consider is its visible wavelength range (400-700 nm), which might not meet the needs of applications outside this range.

Field Applications

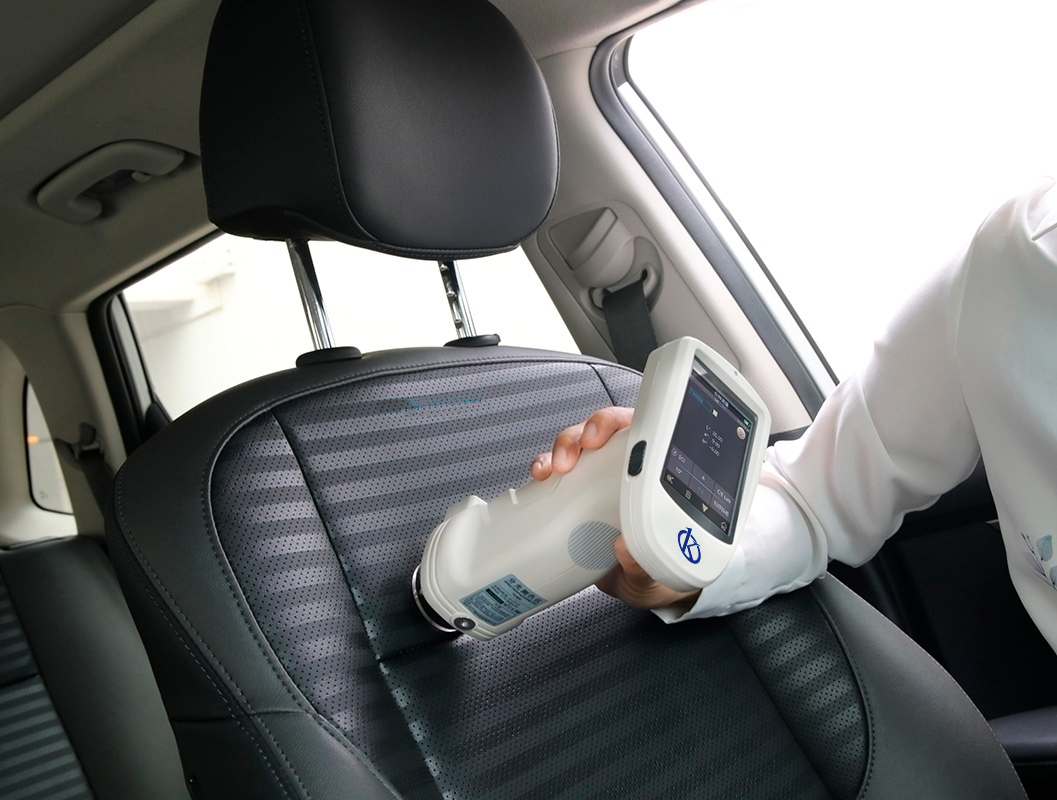

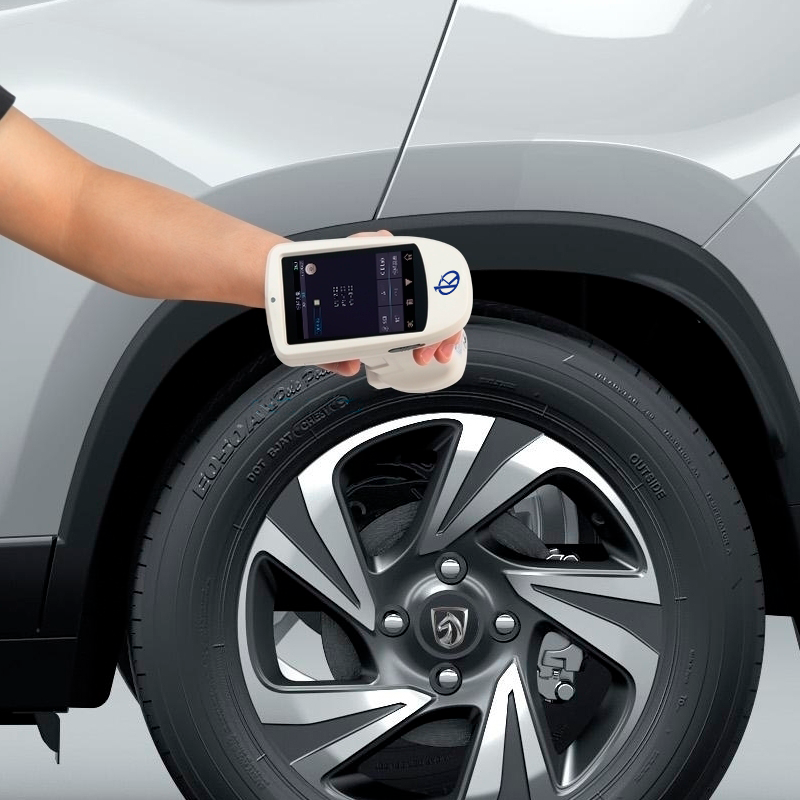

The YR05495 is widely utilized for color precision in industries such as plastics, textiles, and coatings. Its diverse apertures and SCI/SCE measurement modes facilitate detailed color analysis, reducing variation and ensuring product consistency. It’s also effective for verifying color coordinates in traffic signals and reflective films, proving essential in both laboratories and production environments.

Recommendations

For optimal performance, regular calibrations and maintaining a clean environment for the YR05495 are recommended. With its lithium-ion battery supporting up to 6,000 measurements over 8 hours, frequent recharging ensures continuous availability. Request a personalized quote or utilize Kalstein Plus for an automatic quote, and let the YR05495 enhance precision and efficiency in your industry’s color control processes.

Features

  • Three measurement apertures for sample adaptability
  • 1000-line precision grating technology
  • Measures in both SCI and SCE modes
  • Full-spectrum LED light source
  • Large storage capacity for standards and samples
  • PC software compatibility for data management

Technical Specifications

Models YR05495
Optical Geometry Reflect: di:8°, de:8°(diffuse illumination, 8 degree viewing angle)
SCI (mirror component included)/SCE

(mirror component excluded) ;

UV light source excluded

Complies with CIE No.15,GB/T 3978,GB 2893,GB/T

18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

characteristic A custom aperture, it is used for

accurate color measurement and quality control

in plastic electronics, paint and ink,

textile and garment printing and dyeing, printing,

ceramics and other industries, and for the measurement of

fluorescent samples . .

Integrating Sphere Size Φ40mm
light source Combined full spectrum LED light source, UV light source
Spectrophotometric mode flat grid
Sensor Silicon photodiode array (dual row 40 groups)
wave range 400~700nm
Wavelength Range 10nm
semi-bandwidth 10nm
Medium Reflectance Range 0-200%
Measurement Aperture A customized aperture: MAV:Φ8mm/Φ10mm;

SAV:Φ4mm/Φ5mm

Specular Component SCI&SCE
color space CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Munsell (C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Other Color Index WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925,ASTM 313),
Stain fastness, color fastness, color intensity

, opacity,

8th Brightness,
Observer Angle 2°/10°
illuminator D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Data Displayed Spectrogram/Values, Sample Chromaticity

Values, Color Difference Values/Graph, PASS/FAIL Result,

Color Compensation

measuring time About 1.5s (measure SCI and SCE about 3.2s)
repeatability Spectral Reflectance: MAV/SCI, Standard Deviation within 0.1%

(400nm to 700nm: within 0.2%)

Chromaticity value: MAV/SCI, within ΔE*ab 0.04

(when a white calibration plate is measured 30 times at

5 second intervals after white calibration)

Error Between Instruments AVM/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles)
Measurement mode Single measurement, average measurement (2-99 times)
Location Method Camera location, stabilizer cross position
Dimension L*An*Al=129X76X217mm
Weight about 600g
drums Li-ion battery, 3.7 V, 5,000 mAh,

6,000 measurements in 8 hours

Illuminant Lifespan 5 years, more than 3 million times detected
Data Displayed 3.5-inch TFT color LCD, capacitive touch screen
data port USB,
data storage 1000 standard pieces, sample 20000 pieces
Idiom Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensation), Altitude < 2000m
storage environment  -20~50℃, 0~85%RH (no condensation)
Standard Accessory Power adapter, user guide,

PC software (download from

office website), USB cable,

black and white calibration well, protective cover, wrist strap,

one aperture (8mm or 4mm)

Optional Accessory Micro printer, dust proof box
Grades Specifications are subject to change without notice.

Additional information

Weight 2 kg
Dimensions 28 × 13 × 30 cm
