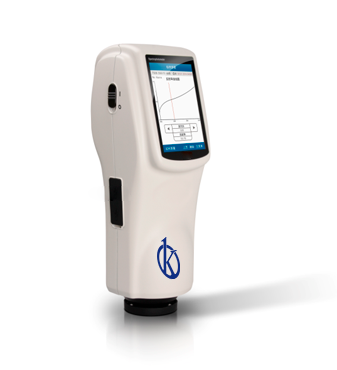

Handheld Color Spectrophotometer YR05497

ManufacturerKalstein

Description

The Handheld Color Spectrophotometer YR05497 is an advanced tool for industries and businesses requiring precise color measurement and management. With its 45/0 optical geometric structure, this device is built to CIE and GB/T standards ensuring consistent and reliable results. It weighs only 600g, making it incredibly portable for both field and laboratory use. Ideal for sectors such as plastics, paints, textiles, food, and cosmetics, the spectrophotometer boasts a large 3.5-inch touchscreen, an 8 mm aperture, and a wavelength range from 400 to 700 nm. This state-of-the-art tool offers unparalleled precision (ΔE*ab of 0.04) and can store up to 15,000 samples, ensuring comprehensive data management.

Market Price

The YR05497 is competitively priced, typically ranging between $5,300 and $6,200 USD, depending on the included accessories and specific configurations. Investing in this spectrophotometer allows companies to optimize their color quality control processes economically. To obtain a quote that meets your specific requirements, request a personalized quote or take advantage of the straightforward and efficient purchasing experience through Kalstein Plus.

Frequently Asked Questions

  • What applications is the YR05497 suitable for?
    This device is perfect for industries involved in color control such as plastics, paints, inks, textiles, and others. It is also useful for color studies involving fluorescent samples.
  • Is it compatible with a PC?
    Yes, the YR05497 includes advanced color management software that ensures seamless PC connectivity, enhancing data handling capabilities.
  • How many samples can be stored?
    This model can store up to 1,000 standards and 15,000 samples, making it ideal for detailed and organized data records.

Advantages and Disadvantages

The key benefits of the YR05497 include its accuracy in color analysis (ΔE*ab of only 0.04), portability, user-friendly design, and compliance with various international standards. It also comes with USB and RS232 connectivity to facilitate data transfer. However, its wavelength range is limited to the visible spectrum (400-700 nm), which may not suit applications that require broader measurements.

Field Applications

The YR05497 is extensively used in quality control within industries such as plastics, paints, and textiles, where maintaining color consistency is critical. Its portability and precision make it an excellent choice for measuring in both production areas and laboratories. The advanced software provides color simulation capabilities, allowing for real-time color management, ensuring top product quality.

Recommendations

For optimal performance of the YR05497, it is recommended to conduct periodic calibrations and maintain the device in a clean, dry setting. Its lithium-ion battery supports up to 5,000 measurements over eight hours; therefore, regular charging is advised to ensure availability. Obtain a personalized quote or generate your own on Kalstein Plus to discover how the Portable Color Spectrophotometer YR05497 can enhance color control in your industry, boosting precision and efficiency across every process.

Features

  • Lightweight and ergonomic design
  • Compliance with international color measurement standards
  • Advanced data storage for up to 15,000 samples
  • PC connectivity with advanced color management software
  • Large 3.5-inch touchscreen for easy navigation

Technical Specifications

Model YR05497
Illuminating/Viewing Method 45°/0 (45° ring illuminating, 0° viewing) Comply to standard CIE No. 15, GB/T3978, GB2893, GB/T18833
Integrating Sphere Size Φ58mm
Measuring Aperture Φ8mm
Observer 2°/10°
Repetitive Error Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Inter-Instrument Error ΔE*ab≤0.2 (Average value of measuring the 12 tint plates of BCRA series II)
Wavelength Range 400∽700nm
Wavelength Pitch 10nm
Reflectance Range 0∽200%
Light Source Type D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
Light Source Device Combined LED Light
Light Source Life 5 years, more than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
Display Data Spectral Graph/Data, Sample Chromatic Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Other Chromaticity Data Whiteness – WI(ASTM E313,CIE/ISO,AATCC,Hunter),
Yellowness-YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
Metamerism Index (Mt)
Colour Stain, Color Fastness, Color Strength, Opacity
Measuring Time 1.5s
Data Storage 1000 standards, 15000 samples
Data Port USD&RS232
Dimension 90*77*230mm
Weight 600g
Battery Li-ion Battery, 5000 measurements in 8 hours.
Operation Temperature 0∽40℃(32∽104℉)
Storage Temperature -20∽50℃(-4∽122℉)
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Optional Accessory Universal Test Components, Micro Printer, Powder Test Box

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
