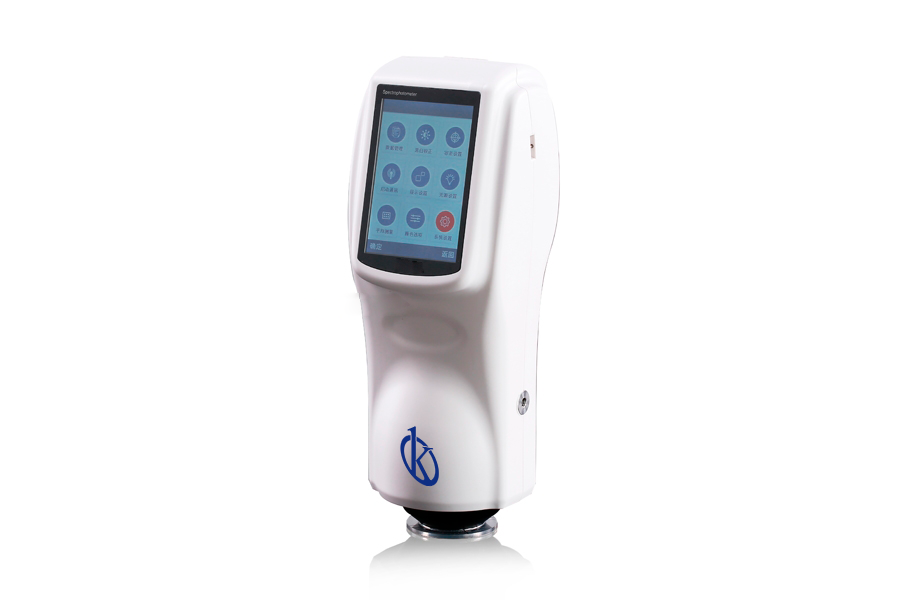

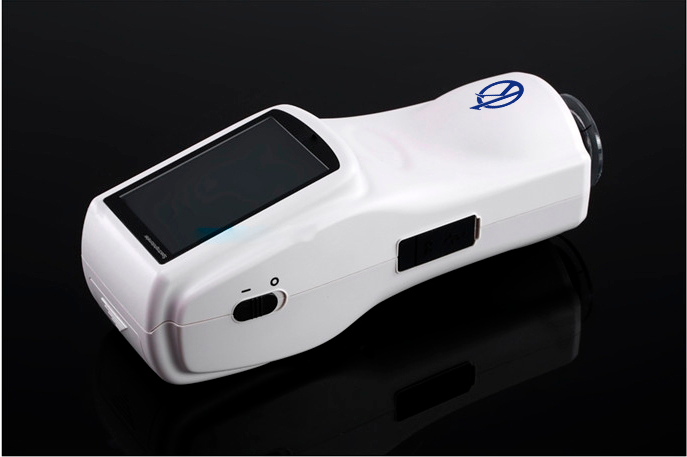

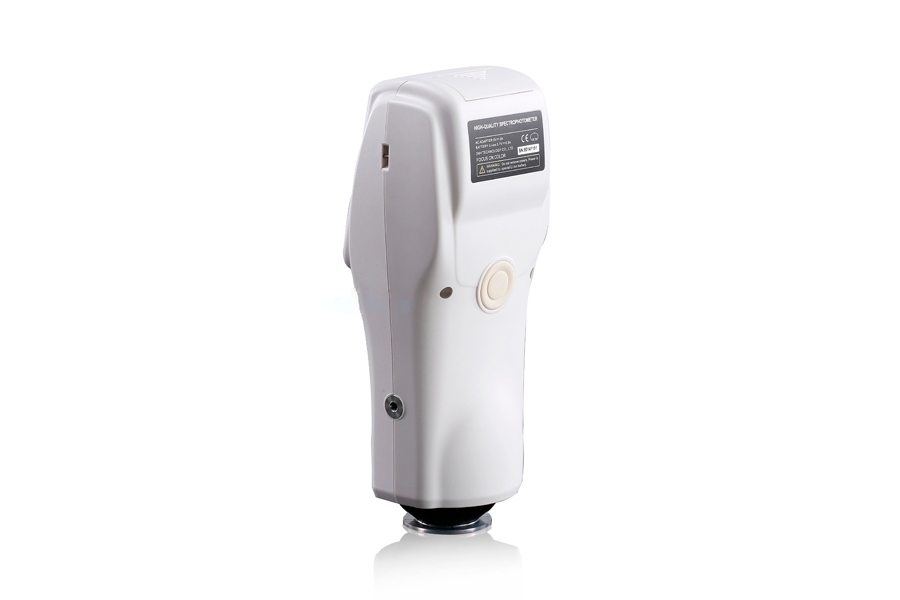

Handheld Color Spectrophotometer YR05496

ManufacturerKalstein

Description

The Handheld Color Spectrophotometer YR05496 is an innovative solution for businesses requiring precise color measurement and color matching across various industries such as plastics, paints, textiles, food, and cosmetics. This portable device, weighing only 600 grams, features a 45/0 geometric optical structure, ensuring it meets international colorimetry standards. Additionally, it offers a wavelength range from 400 to 700 nm with an 8 mm aperture, providing an impressive DeltaE*ab accuracy index of 0.04. The spectrophotometer’s user-friendly design and 3.5-inch touchscreen facilitate seamless operation. Equipped with the advanced SQC8 color management software, the YR05496 model connects quickly to any PC, enhancing the effectiveness of quality control processes.

Market Price

The YR05496 spectrophotometer offers a competitive market price range from $3,700 to $4,500 USD. This price reflects its robust capabilities in optimizing color control operations with unmatched precision and reliability. Despite this investment, many companies find it beneficial as the device can store up to 10,000 samples, adapting to both industrial and laboratory environments. Request a tailored quote today or generate one automatically using Kalstein Plus, ensuring a smooth and secure purchasing process.

Frequently Asked Questions

  • What industries benefit most from the YR05496?
    The spectrophotometer excels in color management within the plastics, paints, textiles, and food industries, among others.
  • How does it connect to a PC?
    It includes comprehensive color management software, enabling efficient data transfer and management through a direct PC connection.
  • What is the storage capacity of the device?
    It offers substantial storage options, accommodating 1,000 standards and 10,000 samples for meticulous data handling.

Advantages and Disadvantages

The advantages of the YR05496 include its exceptional accuracy (ΔE*ab of 0.04), ergonomic design, and compliance with multiple international standards. The USB and RS232 interfaces simplify data transfer, enhancing operational efficiency. On the downside, the device’s spectral range is limited to 400-700 nm, which might not cover broader spectrum applications.

Field Applications

The YR05496 is a vital tool in quality control for industries focused on plastics, paints, and textiles, where color accuracy is critical. Its portability and accuracy ensure reliable measurements on production lines or in laboratory settings. The spectrophotometer facilitates real-time evaluation, aided by advanced color simulation and data management software, to maintain product quality consistently.

Recommendations

To keep the YR05496 in peak operating condition, regular calibrations are recommended, along with storing the device in a clean environment. The lithium-ion battery supports up to 5,000 measurements within an 8-hour period, so regular charging is essential. For a personalized quote or the ability to generate one instantly, visit Kalstein Plus and see how the Portable Color Spectrophotometer YR05496 can elevate color control accuracy and efficiency in your industry.

Features

  • Portable design for on-the-go color measurements
  • High precision with ΔE*ab accuracy index of 0.04
  • Three-inch capacitive touchscreen for intuitive use
  • Connectivity with USB and RS232 interfaces
  • Color management software for comprehensive data handling

Technical Specifications

Model

YR05496

Illumination/observation system

45/0 method (45 ring-shaped illumination, vertical viewing)

Comply with CIE No.15,GB/T 3978.

Integrating sphere Size

Φ58mm

Light Source

combined LED sources

Sensor

Silicon photodiode array

Wavelength range

400~700nm

Wavelength pitch

10nm

Reflectance range

0~100%

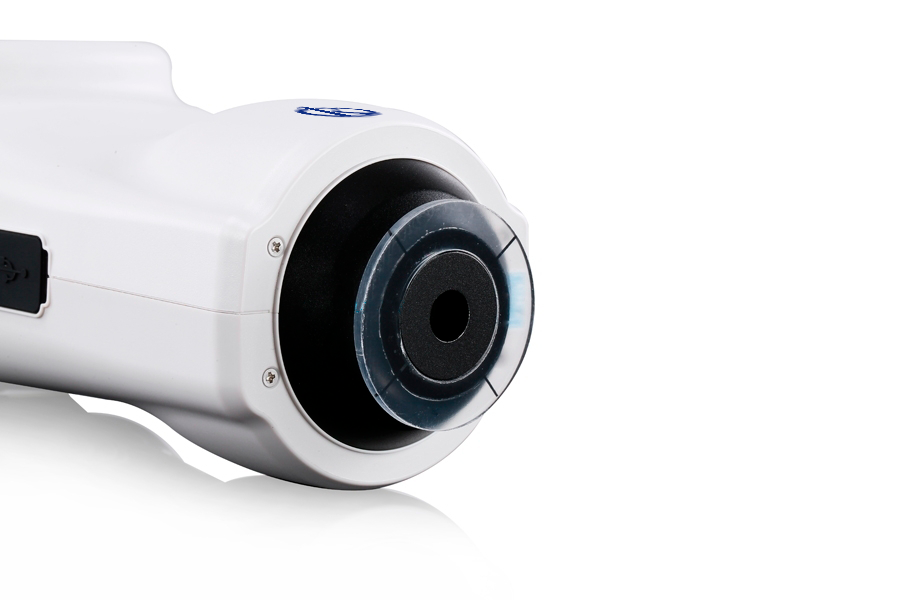

Measuring Aperture

Φ8mm

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV

Color difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00

v

Other Chromaticity Data

Whiteness – WI(ASTM E313,CIE/ISO,AATCC,Hunter),

Yellowness-YI(ASTM D1925,ASTM 313),

TI(ASTM E313,CIE/ISO),

Metamerism Index (Mt)

Colour Stain, Color Fastness, Color Strength, Opacity

Observer

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12

Display Data

Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

Measurement Time

1.5s

Repeatability

Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)

Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement

Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)

Dimension

L*W*H=90*77*230mm

Weight

600g

Battery

Li-ion battery. 5000 times within 8 hours.

Lamp Life

5 years, more than 1.6 million measurements

Display Screen

TFT 3.5inch, Capacitive Touch Screen

Interface

USB/RS-232

Data Memory

1000 Standards, 10000 Samples

Operating Temperature

0~40℃(32~104°F)

Storage temperature

-20~50℃(-4~122°F)

Standard Accessory

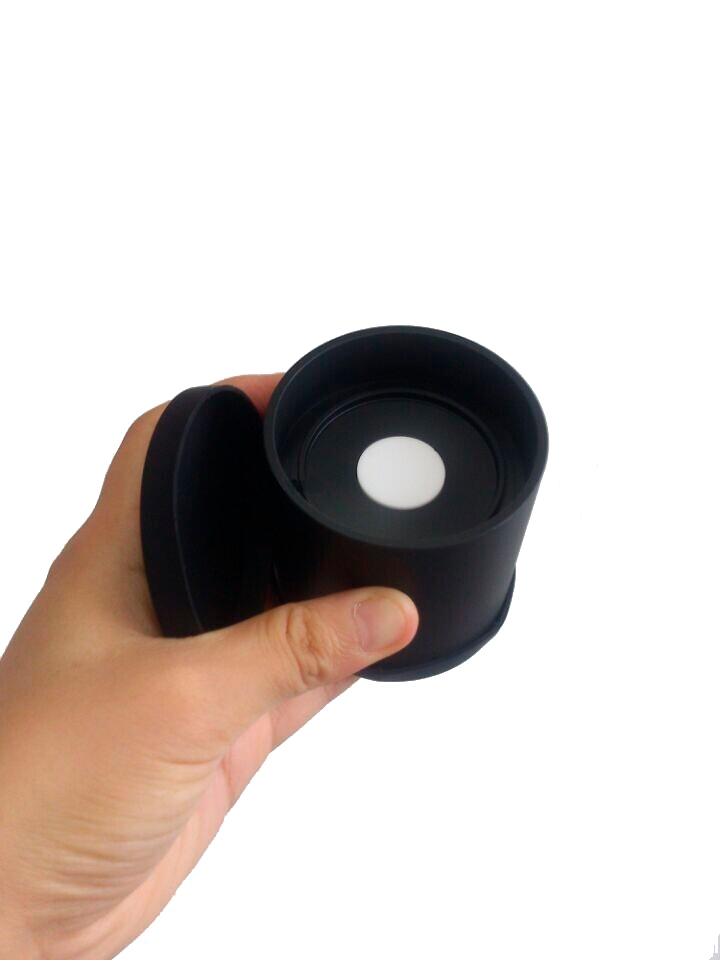

Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory

Micro Printer, Powder Test Box

Notes

The specifications are subject to change without notice.

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
