Colorimeter
A colorimeter is a device used to measure and analyze colors. Currently, thanks to technological development, there are models of this equipment designed for very specific uses and applications, among which we can mention the transmission colorimeters that allow to determine the concentration of a chemical component, as well as some models of colorimeters are also able to analyze the color of opaque products such as plastics, paints, metals, ceramics, among others, while other colorimeters are used to adjust light sources or calibrate monitors.
In other words, a colorimeter is a device of an electronic nature that allows the identification of colors and their hues, providing precise and objective measurements of the colors being analyzed, and thus offering an accurate measurement of the intensity and hue of the color.
Types of Colorimeter a Laboratory may need

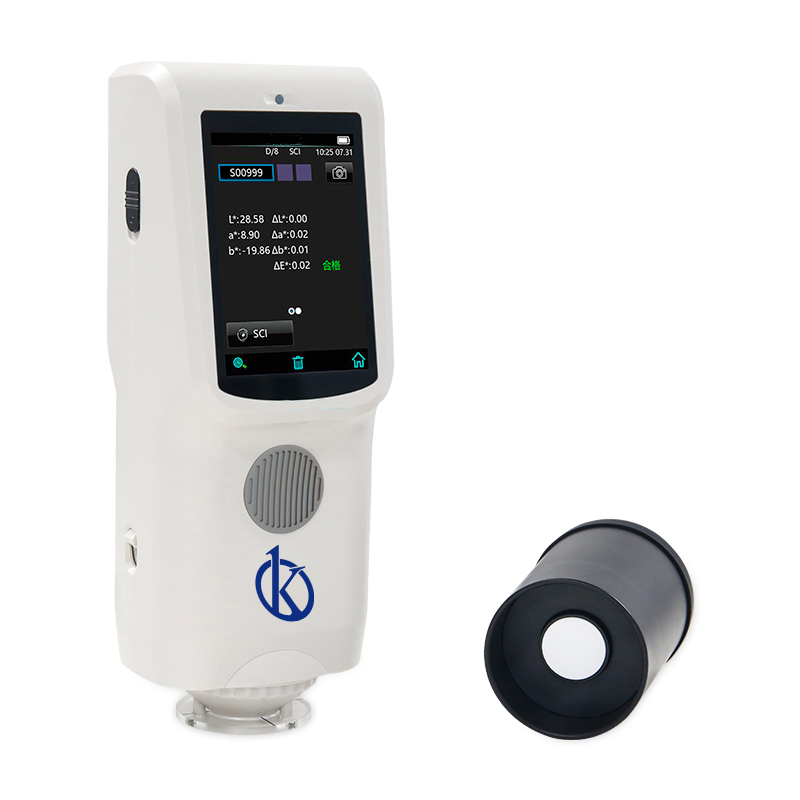

Spectrocolorimeter
A spectroradiometer is an instrument that allows to quantify the distribution of the spectral power emitted by the light source. That is, it measures how intense the color is, since it accurately measures luminance, glow and chromaticity. It has an integrated optical measurement and orientation system that measures light from approximately 380 nm to 780 nm, and is widely used mainly in research and development laboratories due to its high precision to analyze lighting in a production, as well as to carry out quality control, as well as to calibrate liquid crystal displays that are made for televisions and laptops.
It is a device composed of a set of configurable modules that facilitate its use in all types of optical systems. Its basic components include its light source, a monochromator and a radiometer or detection system. The equipment also has a varied set of lighting systems: arc, halogen and spectral lamps.
In Kalstein you can find the ideal Colorimeter for your Laboratory
Spectrocolorimeter YR05518 – YR05519
YR05516 // YR05519 This is Kalstein using autonomous-core technology research...

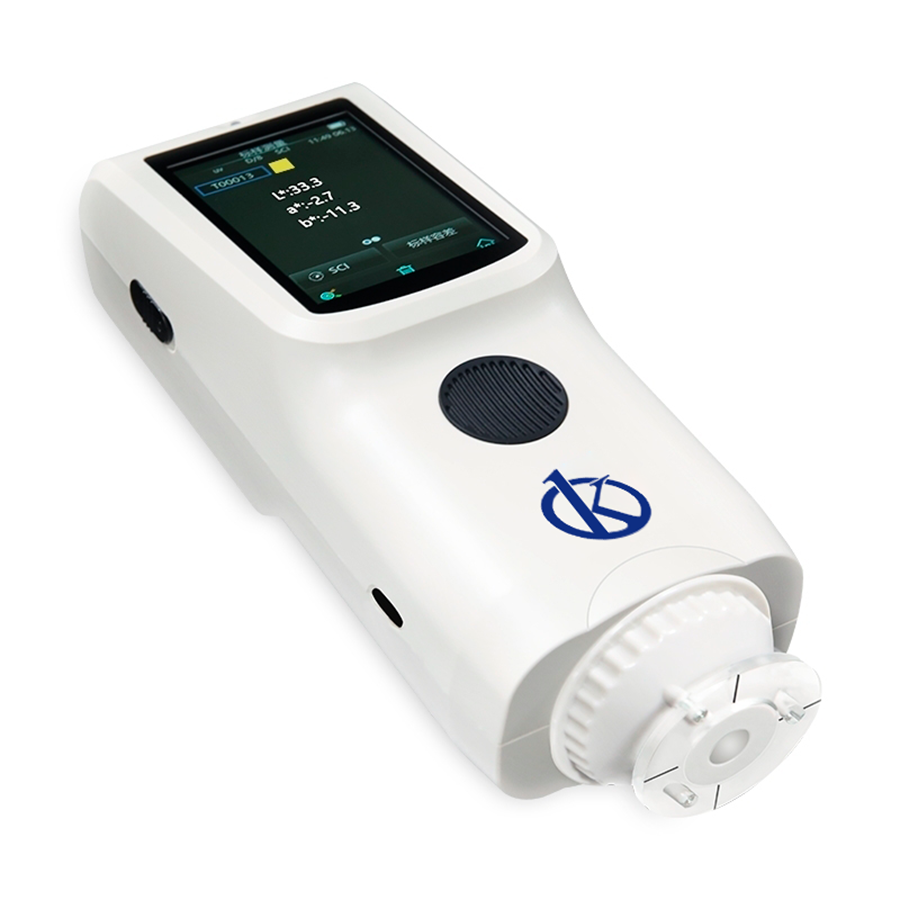

Spectrocolorimeter YR05516 – YR05517
YR05516 // YR05519 This is Kalstein using autonomous-core technology research...
Precision Colorimeter YR05513
Kalstein team concentrates on customer needs and develops a new serie YR05509 // YR05513 with high precision & low cost...
Precision Colorimeter YR05512
Double openings: flat opening of Φ8 mm and tip opening of Φ4 mm for switch, easy concave sample...
Our Best Selling Colorimeter
Model | YR05506 | YR05507 | YR05508 |
Illuminating/Viewing Geometry | 8/d | 8/d | 8/d |
Measuring Aperture | Φ8mm/Φ4mm | Φ8mm | Φ8mm |
Detector | Silicon photoelectric diode | Silicon photoelectric diode | Silicon photoelectric diode |
Color Space | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness | CIEL*a*b*C*h* CIEL*a*b* | CIEL*a*b*C*h* CIEL*a*b* |
Color Difference Formula | △E*ab △L*a*b* △E*C*h* △ECIE94 △Ehunter | △E*ab △L*a*b △E*C*h | △E*ab △L*a*b △E*C*h |
Light Source | D65 D50 A | D65 | D65 |
Light Source Device | LED blue light excitation | LED blue light excitation | LED blue light excitation |
Errors Between Each Equipment | ≤0.40ΔE*ab | ≤0.40ΔE*ab | ≤0.50ΔE*ab |
Storage | 100pcs standards 20000pcs samples | 100pcs standards 20000pcs samples | 100pcs standards 20000pcs samples |
Repeatability | Standard deviation within ΔE*ab 0.06 | Standard deviation within ΔE*ab 0.07 | Standard deviation within ΔE*ab 0.08 |
Average of 30 measurements of standard white plate | Average of 30 measurements of standard white plate | Average of 30 measurements of standard white plate | |
Weight | 500g | 500g | 500g |
Dimension | 205×70×100 mm | 205×70×100 mm | 205×70×100 mm |
Power source | Rechargeable lithium-ion battery 3.7V@3200mAh | Rechargeable lithium-ion battery 3.7V@3200mAh | Rechargeable lithium-ion battery 3.7V@3200mAh |
Lamp Life | 5 years, more than 1.6 million measurements | 5 years, more than 1.6 million measurements | 3 years, more than 1 million measurements |
Charging Time | 2 hours (first time 8 hours–100% electricity) | 2 hours (first time 8 hours–100% electricity) | 2 hours (First time 8 hours–100% electricity) |
Measurement Times Before Recharging | More than 3000 times | More than 3000 times | More than 3000 times |
Operating Temperature/Humidity Range | -10~40℃, relative humidity 0~85% with no condensation | -10~40℃, relative humidity 0~85% with no condensation | -10~40℃, relative humidity 0~85% with no condensation |
Data Interface | USB | USB | USB |
Extended Aperture (optional) | Φ8mm extended aperture, available for measuring concave surface | – | – |
Printer (optional) | Miniature thermal printer | Miniature thermal printer | Miniature thermal printer, Powder Test Box |
Catalog of Colorimeters models on offer
-
Precision Colorimeter YR05513
-
High cost-effective Portable Colorimeter YR05515
-
High cost-effective portable colorimeter YR05514
-
Precision Colorimeter YR05506 // YR05508
Select options -
Spectrocolorimeter YR05518 – YR05519
Select options -
Spectrocolorimeter YR05516 – YR05517
Select options -
Precision Colorimeter YR05510
-
Precision Colorimeter YR05512
Guides to become an expert in Colorimeter
Differences between Spectrocolorimeters and Colorimeters
Today colors play a fundamental role in our lives. However, unlike other parameters such as weight or length, there is no...
Why is a colorimeter important in the Laboratory?
A colorimeter in the laboratory is considered a very effective tool when identifying a color and its hue, since it allows to obtain a more objective...
What are the types of Laboratory Colorimeters?
Colorimeters are instruments used to determine the exact composition of a color, because they have the ability to provide accurate and objective...
What is a colorimeter?
A colorimeter is a device used to measure and analyze colors. Nowadays, thanks to technological development, there are models of this equipment designed for uses and applications...
