A microplate washer is a laboratory instrument used to perform washing operations during the ELISA technique. Washing is one of the crucial stages during the realization of the ELISA technique, because, to obtain the best results, that is, the maximum relationship between the specific signal and the background signal, careful washing is essential; for this purpose special solutions are used, among the most used is the phosphate buffer solution or PBS.
The ELISA technique is based on an antigen-antibody reaction performed on a polystyrene surface. Unbound immunoglobulins (antibodies) by reaction to the antigen are eliminated during the washing process. Washing in the ELISA technique is an operation that can be performed manually, but if you have high demands and if you work with potentially contaminated substances, it is better to use automated washing equipment such as the microplate washer.
Shaking or soaking, time can be adjustable,
Waste and lotion and distilled water liquid warning…
Shaking or soaking, time can be adjustable
Waste and lotion and distilled water liquid warning…
Inner Centrifuge, no residual liquid, no need to pat the micro-plate after wash, Double plate washing at the one time…
It is extremely essential not only to respect the number of wash cycles and buffer volumes in each well. The soaking time is standardized to reduce the interference produced by the samples, as well as to eliminate the conjugate not specifically bound to the reaction, and its objective is to provide sufficient time to allow the diffusion of the components to be eliminated in the buffer, thus making the washing performance more optimal. Washing processes carried out in the ELISA microplate washer include: top-down suction, simultaneous suction and dispensing and suction from the bottom of the wells.
The importance of the microplate washer is that during the ELISA a microplate washer is responsible for removing unbound material and reagents that have not reacted. Washing is a critical stage in the performance of the technique.

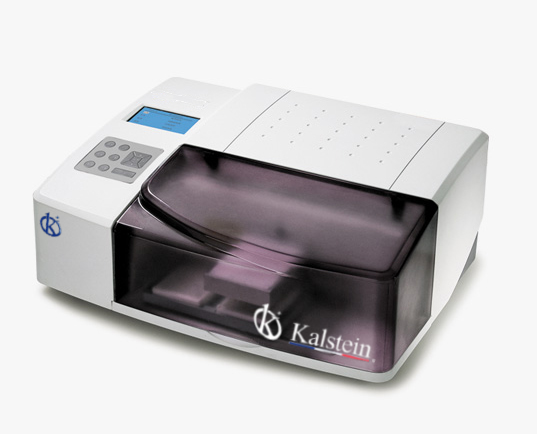

| Model | YR05126 |
| Washing head | 96 needle |
| Washing wells | 24,48,72,96 wells optional, can continuous arrange the wells, no interval |
| Micro-plate type | Flat, Round, U, V |
| Washing mode | Single plate (A or B), double plate (A-B) |
| Lotion | A,B |
| Washing time | 1-999 times adjustable, step 1s |
| Flusting time | 0-999 seconds adjustable, step 1s |
| Pressure setting | 0-9.9 adjustable |
| Centrifugal time | 0-999 seconds adjustable, step 1s |
| Centrifugal rate | 1200-2500rpm |
| Residual liquor | ≤0.1uL per well |
| Washing head position | 0-10.00mm continuously adjustable, completely washing |
| Liquid level induction | insufficient washing and distilled water alarm |
| Capacity bottle | 2pcs 10000mL bottles for lotion, 1 pc for distilled water, another for waste |
| Screen | 7 inches color touch screen operation, convenience and efficient with low failure rate |
| Power supply | SMPS: 110/220V±10%, 50/60Hz±1Hz |
| Working condition | Temp. 5℃-40℃;Relative humidity: ≤80% |
| Dimensions | 51CM(L)*51CM(W)*43CM |
| Weight | 30KG |
