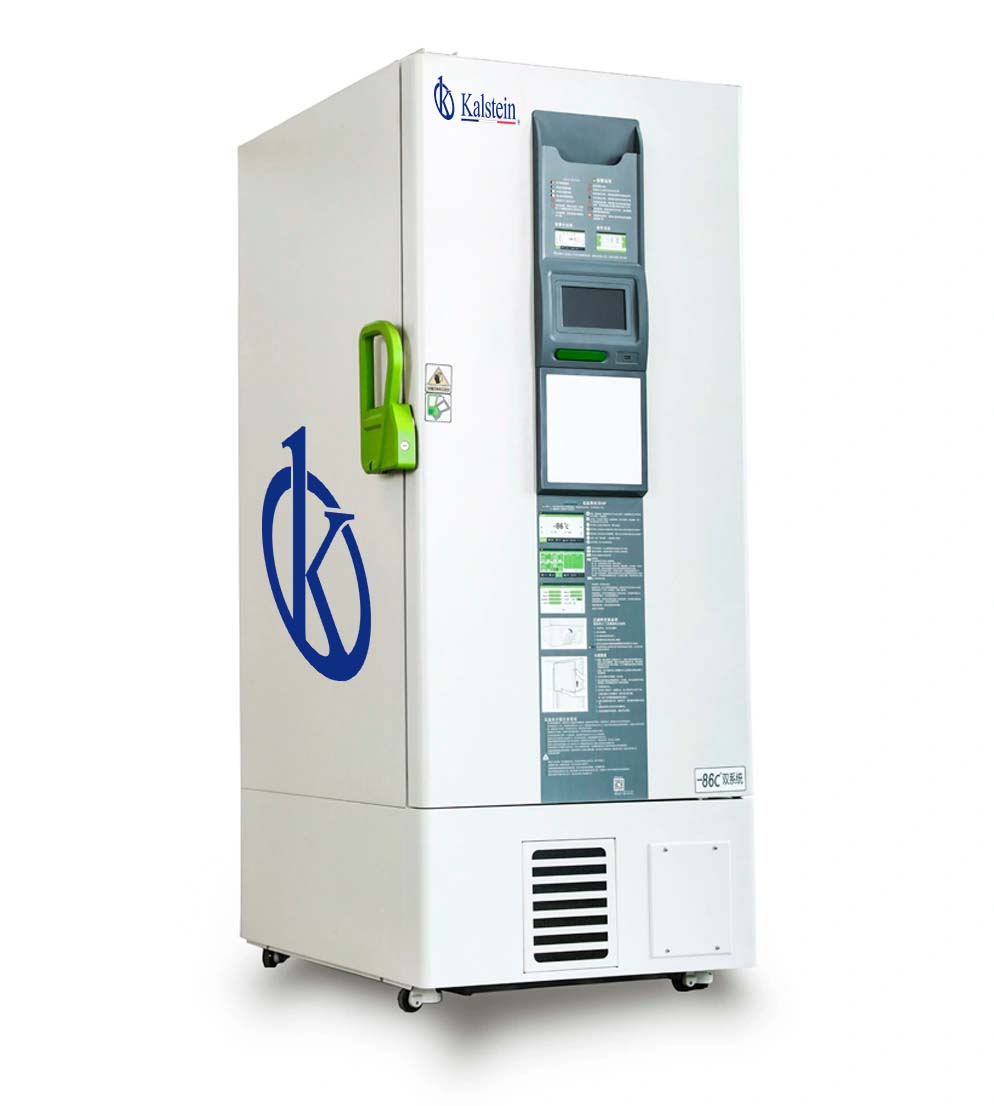

588 Liters Laboratory Upright Freezer Color Sprayed Steel YR05303

Manufacturer: Kalstein

Description

‘-86ºC ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocyte and cutis. Applications can be found in blood banks, hospitals, edipemic prevention service, and research institutes, laboratories in electronic and chemical plants, biological engineering institutes and marine fishery companies.

-86°C dual system ultra low temperature freezer
  • Dual system means extra insurance for temperature. Each independent refrigeration system can maintain -80°C separately.
  • Two independent refrigeration systems are designed to ensure optimal reliability, longevity and efficiency. Depending on the load demands and ambient conditions, one or both refrigeration systems will operate on demand, ensuring the samples are fully protected under the worst possible condition.
Filed Proven Reliability
  • Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
  • Specialized control system design for a well-balanced operation of dual refrigeration system.
  • Positive filed proven reliability record.
Safety
  • Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient, abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.
  • Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.
  • Door open feature standard and USB port for temperature date downloading standard on upright models.
  • Remote alarm contacts.
Technical Specifications
Model YR05303
Specificaitons Shelf/drawer QTY Stainless steel shelf/3
Cooling Direct cooling
Defrost Manual
Refrigerant Mixed-gas
Power Consumption (kWh/24h) 16.5
Noise (db) 53
Ambient temperature (ºC) 10~32ºC
Temperature range (ºC) -40~-86ºC
Cooling system Compressor brand/QTY SECOP/2
Sensor PTC
Temperature controller Microprocessor
Display LCD display
Power Voltage/frequency (V/Hz) 220/50Hz
Power (W) 1500W
Current (A) 9.1A
Material Inside material Stainless steel
Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 588
NT./GT.(kg) 297.5/358.5
Exterior size (W*D*H) (mm) 885*1100*1995
Interior size (W*D*H) (mm) 606*738*1310
Package size (W*D*H) (mm) 970*1140*2190
CBM 2.42
20GP/40GP/40HQ 12/24/24
Frozen Racks Racks 16(5X5)
Boxes (2 Inches) 400
Samples(2ml) 40000
Alarm High/low temperature Y
Power failure Y
Abnormal voltage Y
Sensor error Y
Filter screen check Y
Thermostat failure Y
Low battery Y
Condenser clean Y
High ambient temperature Y
Door ajar Y
Power failure backup system(alarm) 72h
Accessories Castor Y
Inside door 2
Test hole QTY/diameter 1/25MM
USB port Y
Chart recorder /
Data logger Optional
Remote alarm port Y
Optional CO2 back up system Optional
LN2 back up system Optional
Other Certification ISO.CE

Additional information

Weight 358,5 kg
Dimensions 97 × 113,8 × 218,5 cm
