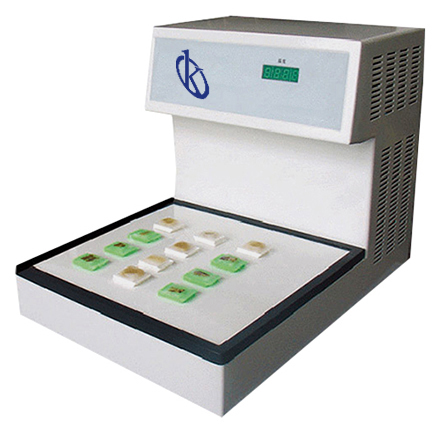

Cooling Plate YR440A



  • Fully programmable computer control allows automatic system start and stop anytime (weekly).
  • The use of new silicon rubber heating elements achieves rapid even, reliable, energy saving heating.
  • Temperature is precisely measured by temperature-sensing integrated blocks made in USA, and is LCD-displayed with icons demonstrating current working status.
  • Five heated areas, including Paraffin Chamber, Paraffin Dispenser, left and right Thermal Storage Compartments, and heating plate (working area), are individually controlled and work independently without interference from each other.
  • Five temperature-control channels and multiple overheating protection mechanisms provide safe, reliable, and energy-saving protection.
  • Automatic memory and restoration functions: After startup, all preset temperature data are automatically stored in the system.
  • Flexible module configuration options through a design which separates the Cryo Module from Embedding Module, enabling easy maintenance.
  • Freezing temperature can be adjusted due to the use of a new-type inverter compressor.
  • The temperature of the cryo plate equipped with this system is controlled independently and can be used to freeze tissue more conveniently, particularly for small specimens.
  • Paraffin Chamber with super large capacity enables embedding a large number of specimens at same time.
  • Safe and reliable low-voltage illuminating system with two ON/OFF control options (finger or foot-operated).
  • Heated working plate and forceps wells make tissue embedding more convenient.
  • High-precision clock makes time setting more convenient and accurate.
  • There is an automatic actuation, can make sure the unit will continue working after a power-down.
  • Using the imported solenoid valve to help the Paraffin Dispenser to adjust the flow rate.
  • This unit set the control power socket, it can work with BL and BC and the same time.
Technical Specifications
Model YR440A
Paraffin Chamber Capacity 4 L
Temperature Range of Forceps Wells RT – 85℃
Temperature Range of Paraffin Chamber RT – 85℃
Temperature Range of Thermal Storage Compartment RT – 85℃
Temperature Range of Working Plate (hot plate) RT – 85℃
Temperature Range of Paraffin Dispenser RT – 85℃
Temperature Range of Thermal Storage Plate RT – 85℃
Temperature Control Precision ±1%
Thermal Storage Compartment Capacity 4,5 L
Paraffin Flow Control Paraffin flow control via finger touch plate and optional foot pedal
Fully programmable ON/OFF control allows automatic system start and stop anytime weekly
Temperature Range of Cryo Module RT to -20℃
Temperature Setting of Cryo Module The optimal working temperature is approximately -15℃, and the temperature is under delay protection
Dimensions of Cryo Module 340×322mm
Working Voltage AC 220V±10% 50Hz (standard model); AC110V±10% 60Hz
Power 300W
Dimensions 685×380×430 mm (W×D×H)
Net weight 45 kg

Additional information

Weight 45 kg
Dimensions 79,5 × 48 × 58 cm
